Biostream BP80 (8″) Fish Pump

Q: How many fish will the BP80 move in an hour?

Up to 24 tonnes per hour through its 8″ (200 mm) bore, though the rate you actually achieve depends on species, fish size, pipe run and head.

Q: What size fish will it pass?

The BP80 is rated to a maximum average fish size of 1.5 kg.

Q: How high can it lift?

Up to 9 m of pumping head on the standard 15 hp BP80, or 11 m on the 20 hp BP80-S.

Q: How do I choose between the BP80 and the sizes either side of it?

Compare bore, fish size and tonnage together — the BP60 is 6″ bore, 600 g fish and 16 t/hr, the BP80 is 8″ bore, 1.5 kg fish and 24 t/hr, and the BP100 is 10″ bore, 2.7 kg fish and 55 t/hr.

Q: What jobs is the BP80 used for?

Bathing, delousing, transferring, grading and harvesting grow-out fish in RAS, live holding and live transport work.

Q: How much water and air does the pump need?

Water and air demand figures are not published for the BP80, so ask Fresh By Design to confirm the service requirements for your layout before you design the services.

Q: How do I get a price?

Request a quote with the tonnage you need to move per hour, your maximum average fish size and the vertical head from water level to discharge, and we’ll confirm the right BP model and lead time.

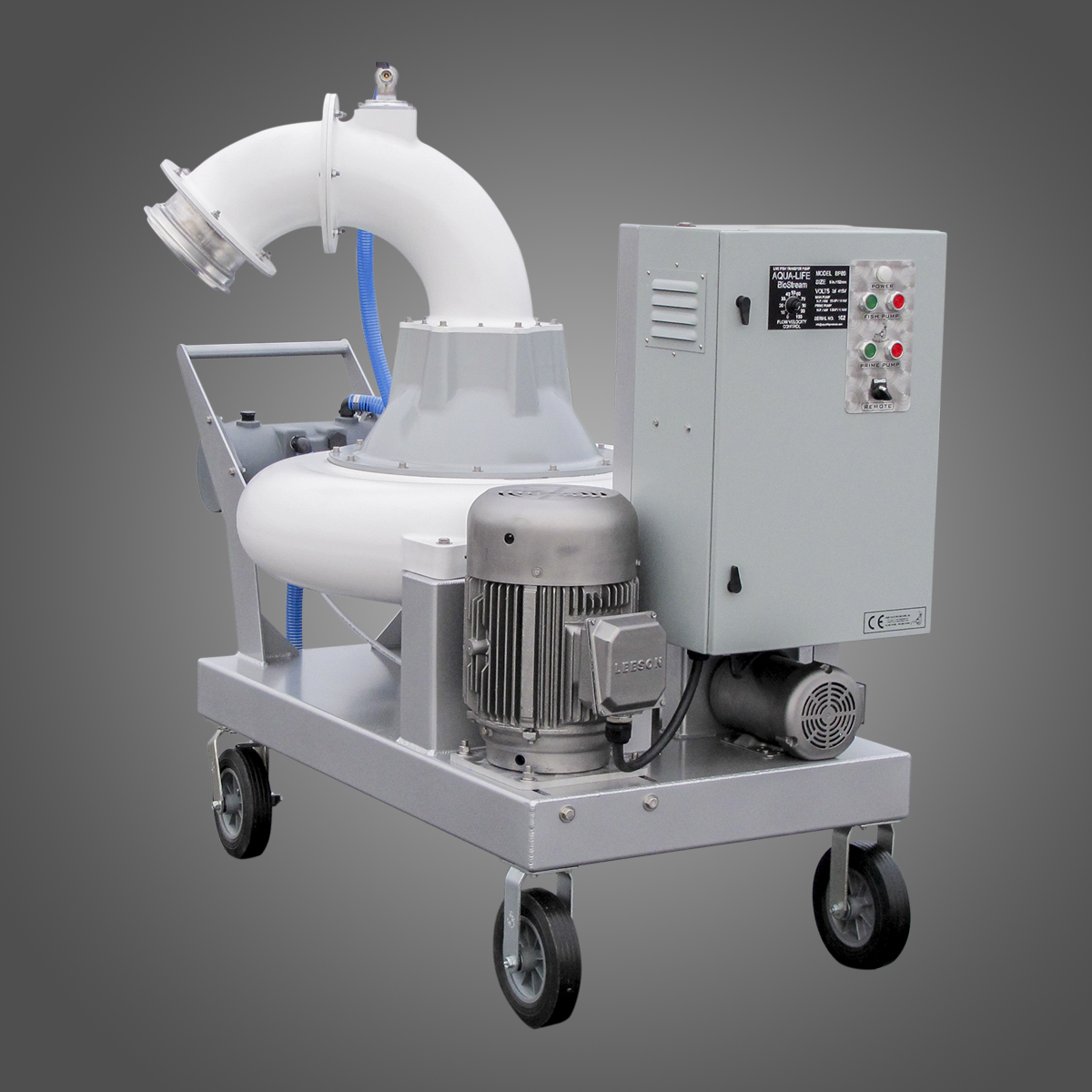

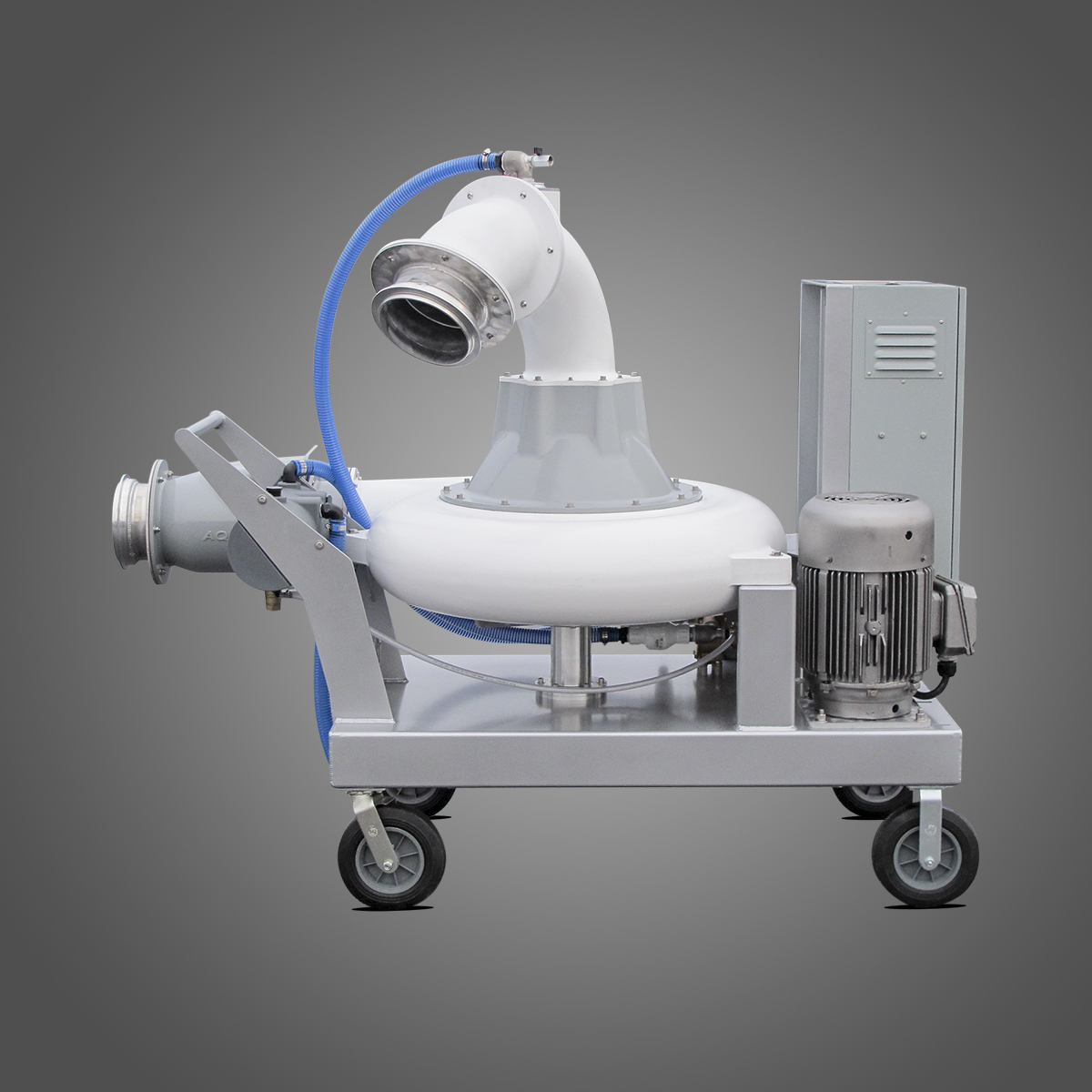

A fish pump for moving grow-out fish gently between tanks, ponds, cages and vehicles.

Categories: Fish Pumps

Applications: Live Holding & Purging, Live Transport, RAS

Brand: Biostream

Product Information

Key Features

Purpose-built live aquatic transfer pump — moves fish without external or internal damage to the species
8″ (200 mm) suction and discharge bore, matched to fish up to a 1.5 kg average
Self-priming, with variable speed electric drive and optional remote control operation
Marine alloy aluminium construction, so it can be moved and reinstalled between tanks
Submersible and non-submersible application designs
Two drive options — 15 hp standard and 20 hp BP80-S — lifting to 9 m and 11 m respectively
Suits bathing, delousing, transferring, grading and harvesting grow-out fish, and installs as a permanent centralised transfer system
Sizing: the BP80 moves up to 24 tonnes of fish per hour through its 8″ (200 mm) bore at up to 9 m head, with a maximum average fish size of 1.5 kg — drop to the BP60 (6″ bore, 16 t/hr, 600 g fish) for smaller stock, or step up to the BP100 (10″ bore, 55 t/hr, 2.7 kg fish) for harvest-scale tonnage, and size on your worst case, as these limits cannot be achieved simultaneously

Specifications

Specification	Detail
Model	BioStream BP80 (BP80-S high-head variant available)
Suction and discharge bore	8″ (200 mm)
Fish pumping capacity	Up to 24 tonnes per hour
Maximum average fish size	1.5 kg
Maximum pumping head	9 m — BP80-S: 11 m
Main pump drive	15 hp — BP80-S: 20 hp
Drive type	Variable speed electric drive, self-priming
Remote control	Available as an option
Construction	Marine alloy aluminium
Weight	Contact us
Application design	Submersible and non-submersible
Water flow required	Contact us to confirm for your layout
Air supply required	Contact us to confirm for your layout
Other sizes in the range	BP25 (2.5″), BP40 (4″), BP60 (6″), BP100 (10″), BP120 (12″), BP140 (14″) — other sizes available on request
Please note	Limits vary with application, species and setup, and cannot be achieved simultaneously

Downloads

BioStream Brochure BioStream Fish Pumps BioStream Applications

Frequently Asked Questions

How many fish will the BP80 move in an hour?

What size fish will it pass?

How high can it lift?

How do I choose between the BP80 and the sizes either side of it?

What jobs is the BP80 used for?

How much water and air does the pump need?

How do I get a price?
