MAT Ozone Skid System

Q: How do I choose the right ozone skid?

Size it on the process water flow it has to treat — standard skids cover 3 to 124 m³/hr, and we match the skid to your design flow.

Q: Does the skid include the ozone generator?

No — the skid injects and contacts the ozone; the MAT corona discharge ozone generator that produces it is a separate item.

Q: What does contact time mean in practice?

Ozone needs both a concentration and a residence time to complete the oxidation reaction, so the vessel is sized to hold the water long enough at the design flow.

Q: Is residual ozone dealt with?

Yes — an ozone destruct unit is standard equipment on every skid, and ambient ozone gas detection is available as an option.

Q: Can the ozone dose be controlled automatically?

Yes — optional ORP and dissolved ozone probes feed a PLC with a colour touch screen so the injection rate tracks a set point.

Q: What warranty applies?

5 years on the tank and pipework and 24 months on the electromechanical components.

Q: How do I get a price?

Request a quote with your process water flow, water type (fresh or salt) and target ozone or ORP set point and we will price the skid, generator and options together.

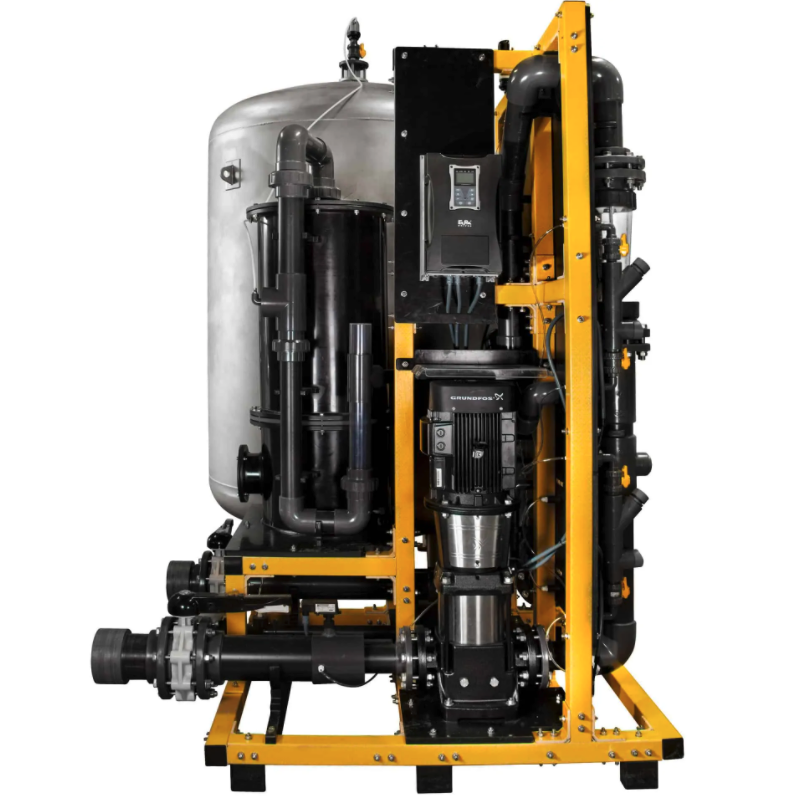

A pressurised contact skid that blends ozone into process water and removes the residual before the water returns to the system.

Categories: MAT Filtration Technologies, Oxygen & Ozone

Applications: LSS, Public Aquarium, RAS, Water & Wastewater Treatment

Brand: MAT

Product Information

Key Features

Standard sizes covering process water flows of 3 to 124 m³/hr (3,000 to 124,000 LPH)
Works on contact time — ozone concentration and contact duration are balanced to complete the oxidation reaction before the water returns to the system

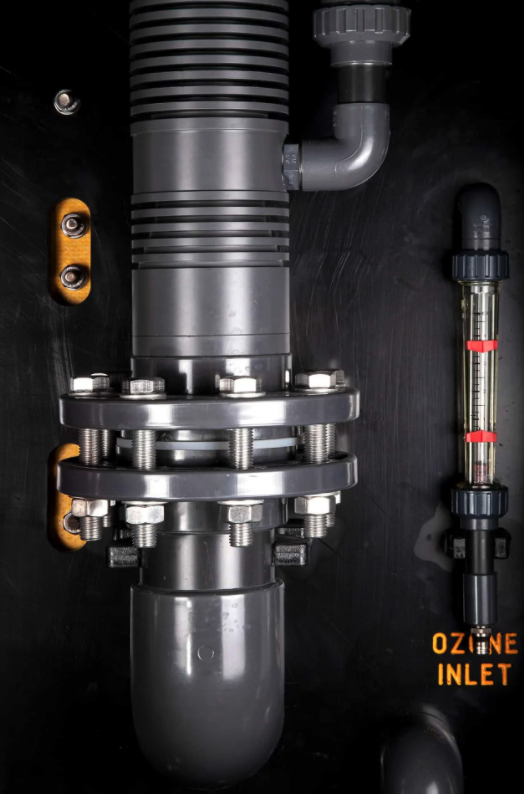

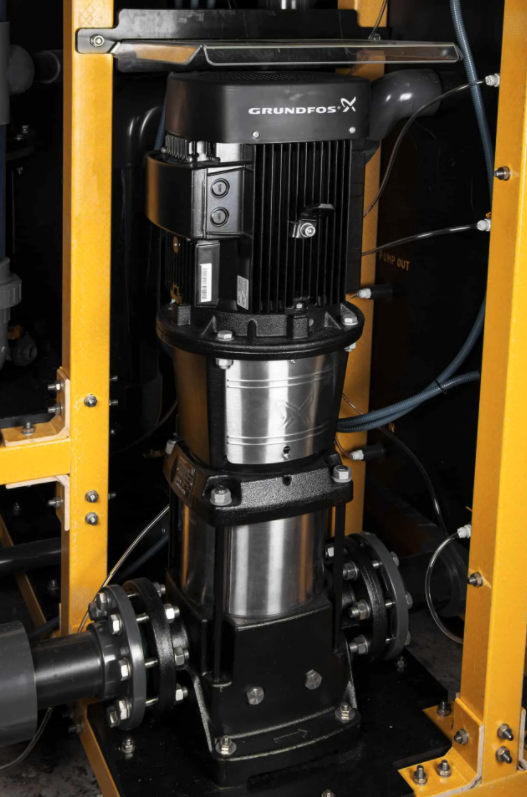

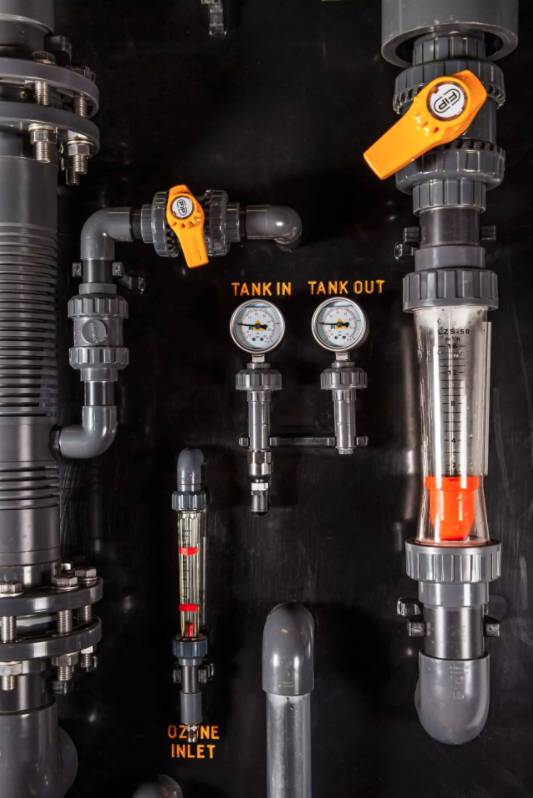

Supplied complete with onboard booster pump, variable frequency drive, venturi gas injector and ozone destruct unit

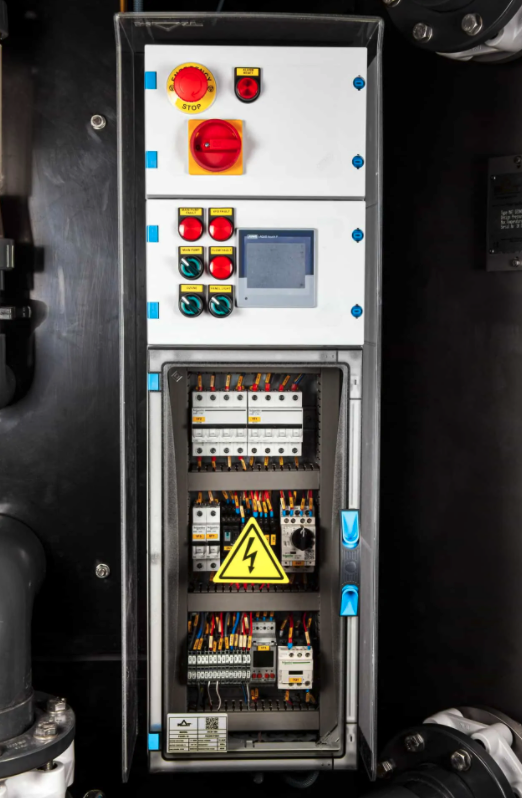

Optional instrumentation: pressure and ORP probes, dissolved ozone probes, digital touchscreen transmitters, flow switch, digital flow meter, PLC with colour touch screen and ambient ozone gas detection
Stainless steel frame and hardware (fibreglass frame on request), polypropylene contact tank and UPVC pipework
5-year warranty on the tank and pipework, 24 months on electromechanical components

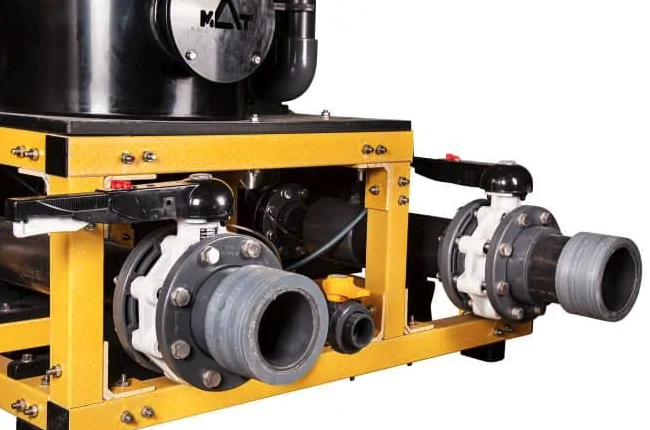

Delivered fully assembled and hydro-tested, ready for inlet, outlet and power connection on site
Size the skid on the process water flow it has to treat — pick the standard skid whose flow range covers your design flow, then tell us your target dissolved ozone or ORP set point and the water type so we can match the MAT ozone generator that feeds it (the generator is a separate item).

Specifications

Specification	Detail
Process water flow range	3 to 124 m³/hr (3,000 to 124,000 LPH)
Operating principle	Contact time — ozone concentration balanced against contact duration in the vessel
Ozone supply	Paired with a MAT corona discharge ozone generator, supplied as a separate item
Standard equipment	Onboard booster pump, variable frequency drive, venturi gas injector, ozone destruct unit
Optional instrumentation	Pressure probe, ORP probe, dissolved ozone probe, digital smart touchscreen transmitters, water flow switch, digital flow meter, PLC with colour touch screen, ambient ozone gas detection
Frame material	High-grade stainless steel with matching stainless hardware; fibreglass on request

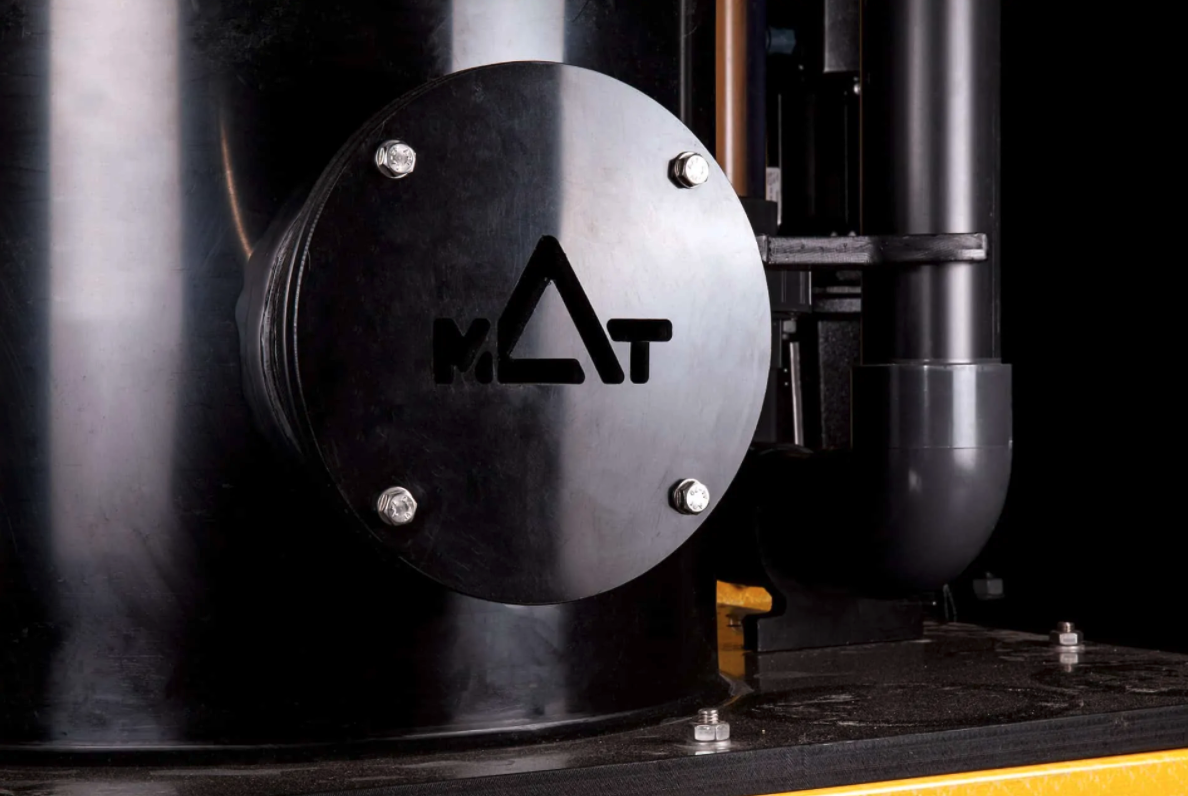

Vessel material	Polypropylene (PP), fabricated in house
Pipework	UPVC
Warranty — tank and pipework	5 years
Warranty — electromechanical components	24 months
Delivery condition	Fully assembled and hydro-tested
Water types	Freshwater and saltwater configurations — see the two spec sheets below
Model codes and per-model flow ratings	Contact us with your design flow
Ozone dose rate and contact time	Set per application by MAT's engineering team. Contact us for details.
Applications	Aquaculture, swimming pools, drinking water and general process water treatment
