Mako Clear Vinyl Tubing

Q: How do I choose the right size?

Measure the barb or fitting on your equipment and match it to the ID, then check the OD clears your clamp and the working pressure for that bore covers your pump discharge.

Q: Is it sold per metre or per roll?

Per roll only — 30 m coils in 6 mm to 32 mm, and 15 m coils in 40 mm and 50 mm.

Q: Is it suitable for ozone or pure oxygen?

No. Ozone attacks PVC and this tubing is not rated for oxygen service — use Tygon Ozone Tubing for ozone and Mako Red Multipurpose Oxygen Hose for oxygen.

Q: Is it food-grade or safe for potable water?

Yes — it is manufactured from non-toxic, food-grade vinyl and is used for potable water, air and food-contact transfer.

Q: Will it survive outdoors in the sun?

It is best run indoors or under cover; prolonged UV exposure will yellow and embrittle clear vinyl, so lag or shade any exposed runs.

Q: Can I use it on a pump suction line?

No — it is unreinforced and will collapse under vacuum. Use a reinforced hose such as Mako Clear PVC Tubing on suction.

Q: What is the difference between this and Mako Clear PVC Tubing?

This vinyl tubing is unreinforced and flexible for low-pressure work; the Mako Clear PVC Tubing is reinforced with polyester yarn for higher-duty air and water transfer.

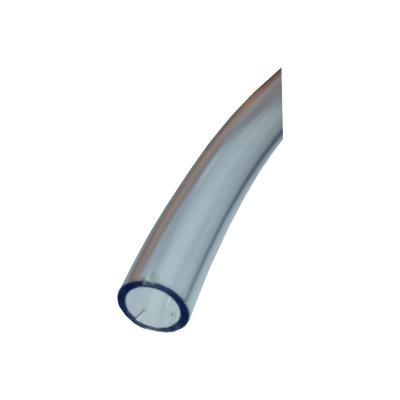

Clear flexible vinyl tubing for water, air and dosing lines in aquaculture, aquaponic and aquarium systems.

Price range: $30.00 through $150.00 ex GST

Option

Clear

Categories: Hose & Tubing

Applications: Aquaponics, Hatchery, Live Holding & Purging, RAS

Brand: Mako

Product Information

Key Features

Ten bores from 6 mm to 50 mm ID, with OD from 9 mm to 60 mm — check both before ordering fittings
Food-grade, non-toxic clear vinyl (PVC) — safe for potable water, air and food-contact transfer
Working pressure from 6 bar at 6 mm down to 2 bar at 50 mm — a low-pressure hose, not a pump discharge line
Temperature range -10°C to 60°C, indoors or under cover
Clear wall lets you see flow, air locks and blockages without breaking the line
Unreinforced and kink-resistant — suits gravity feed, drains, dosing and air lines, not suction
Supplied in 30 m coils to 32 mm and 15 m coils in 40 mm and 50 mm — sold by the roll, not the metre
Sizing — match the ID to the barb or fitting on your equipment, then check the working pressure rating for that bore covers your pump discharge.

Specifications

SKU	ID (mm)	OD (mm)	Wall (mm)	Working pressure	Temperature range	Material	Supply
CVT006	6	9	1.5	6 bar	-10°C to 60°C	Food-grade non-toxic vinyl (PVC)	30 m roll
CVT008	8	11	1.5	5 bar	-10°C to 60°C	Food-grade non-toxic vinyl (PVC)	30 m roll
CVT010	10	13	1.5	4 bar	-10°C to 60°C	Food-grade non-toxic vinyl (PVC)	30 m roll
CVT012	12	15	1.5	4 bar	-10°C to 60°C	Food-grade non-toxic vinyl (PVC)	30 m roll
CVT016	16	19	1.5	4 bar	-10°C to 60°C	Food-grade non-toxic vinyl (PVC)	30 m roll
CVT020	19	23	2.0	3 bar	-10°C to 60°C	Food-grade non-toxic vinyl (PVC)	30 m roll
CVT025	25	32	3.5	3 bar	-10°C to 60°C	Food-grade non-toxic vinyl (PVC)	30 m roll
CVT032	32	38	3.0	2 bar	-10°C to 60°C	Food-grade non-toxic vinyl (PVC)	30 m roll
CVT040	40	48	4.0	2 bar	-10°C to 60°C	Food-grade non-toxic vinyl (PVC)	15 m roll
CVT050	50	60	5.0	2 bar	-10°C to 60°C	Food-grade non-toxic vinyl (PVC)	15 m roll

Frequently Asked Questions

How do I choose the right size?

Is it sold per metre or per roll?

Is it suitable for ozone or pure oxygen?

Is it food-grade or safe for potable water?

Will it survive outdoors in the sun?

Can I use it on a pump suction line?

What is the difference between this and Mako Clear PVC Tubing?
