Southern Salmon Lights

They are rated IP68 with a maximum operating depth of 8 metres.

24,000 lumens at 5000 K bright white, with CRI 80 and a 360 degree beam.

Yes. They are supplied at 850 nm and 520 nm and can be built to a required wavelength on request.

No. The supplier does not publish PAR or PPFD, so contact Fresh By Design if a photosynthetic figure is required.

They run at 0.8 A on a 100 to 277 V input, at an efficiency of 120 lumens per watt.

Supply leads are available from 30 m to 50 m.

Contact Fresh By Design on 02 4868 2500 or email sales@freshbydesign.com.au with your depth, lead length and quantity.

Underwater LED lighting for sea cages and ponds, built for long-term immersion.

Categories: Lighting

Applications: Pond

Brand: Southern Salmon Lights

Product Information

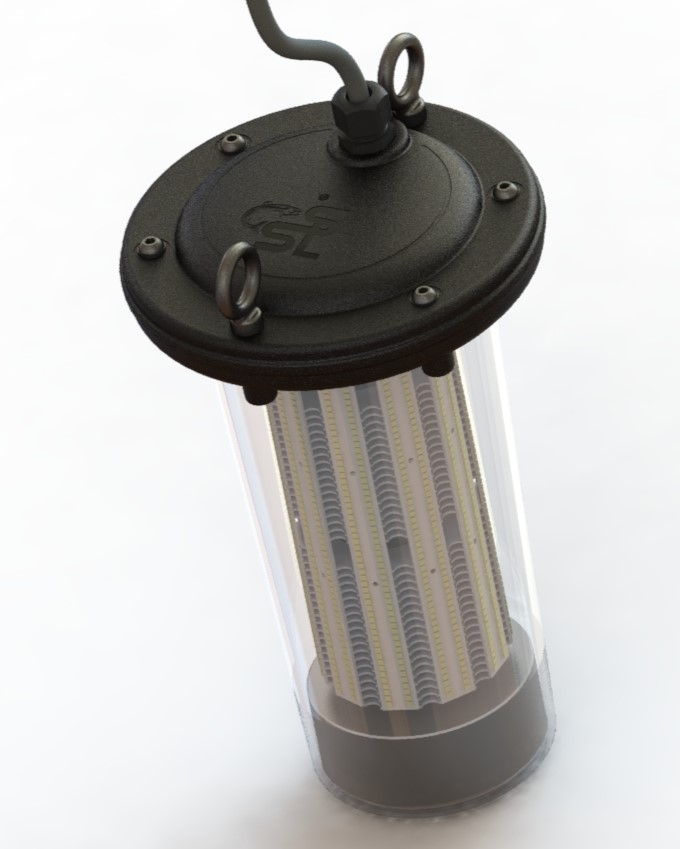

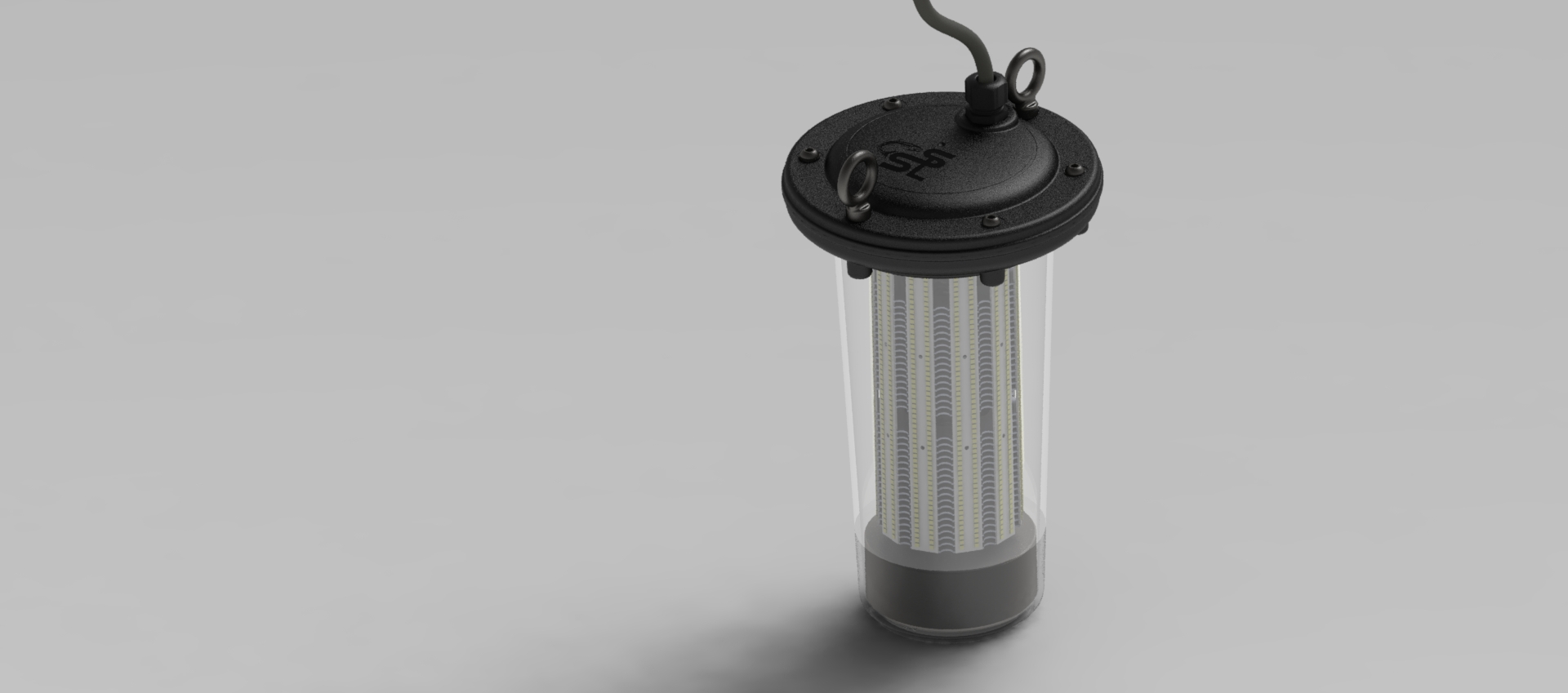

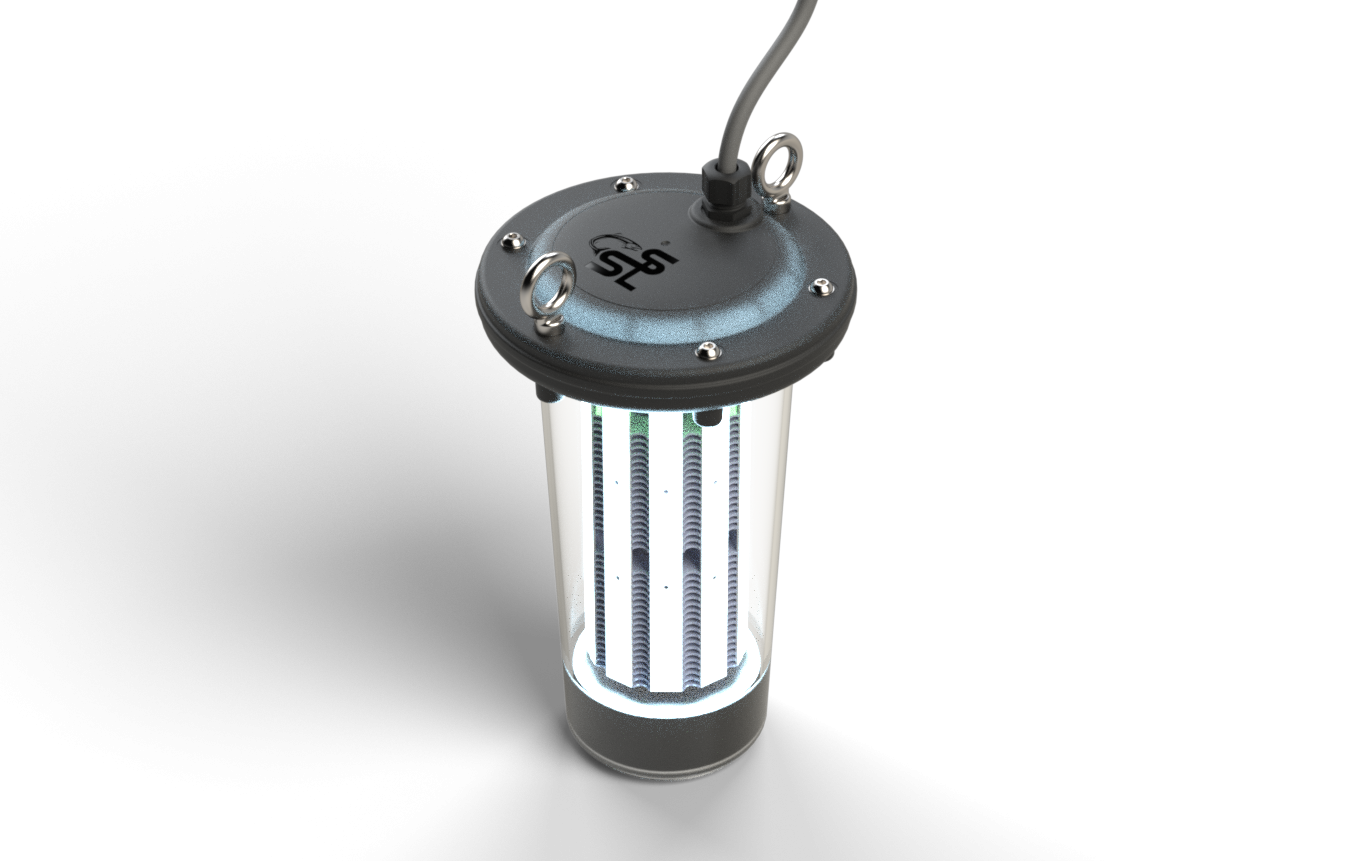

Underwater LED aquaculture light rated IP68, with a maximum operating depth of 8 m and 316 marine grade stainless fittings
24,000 lumens at an efficiency of 120 lumens per watt, 5000 K white, CRI 80 and a 360 degree beam
Supplied at 850 nm and 520 nm bright white, and can be built to a specified wavelength on request
Wide 100 to 277 V input drawing 0.8 A, a low energy alternative to traditional 400 W underwater lamps
Slow start lamp to prolong lamp life and avoid shocking fish
Quick release mechanism for fast, low cost lamp replacement with minimal disruption to operations

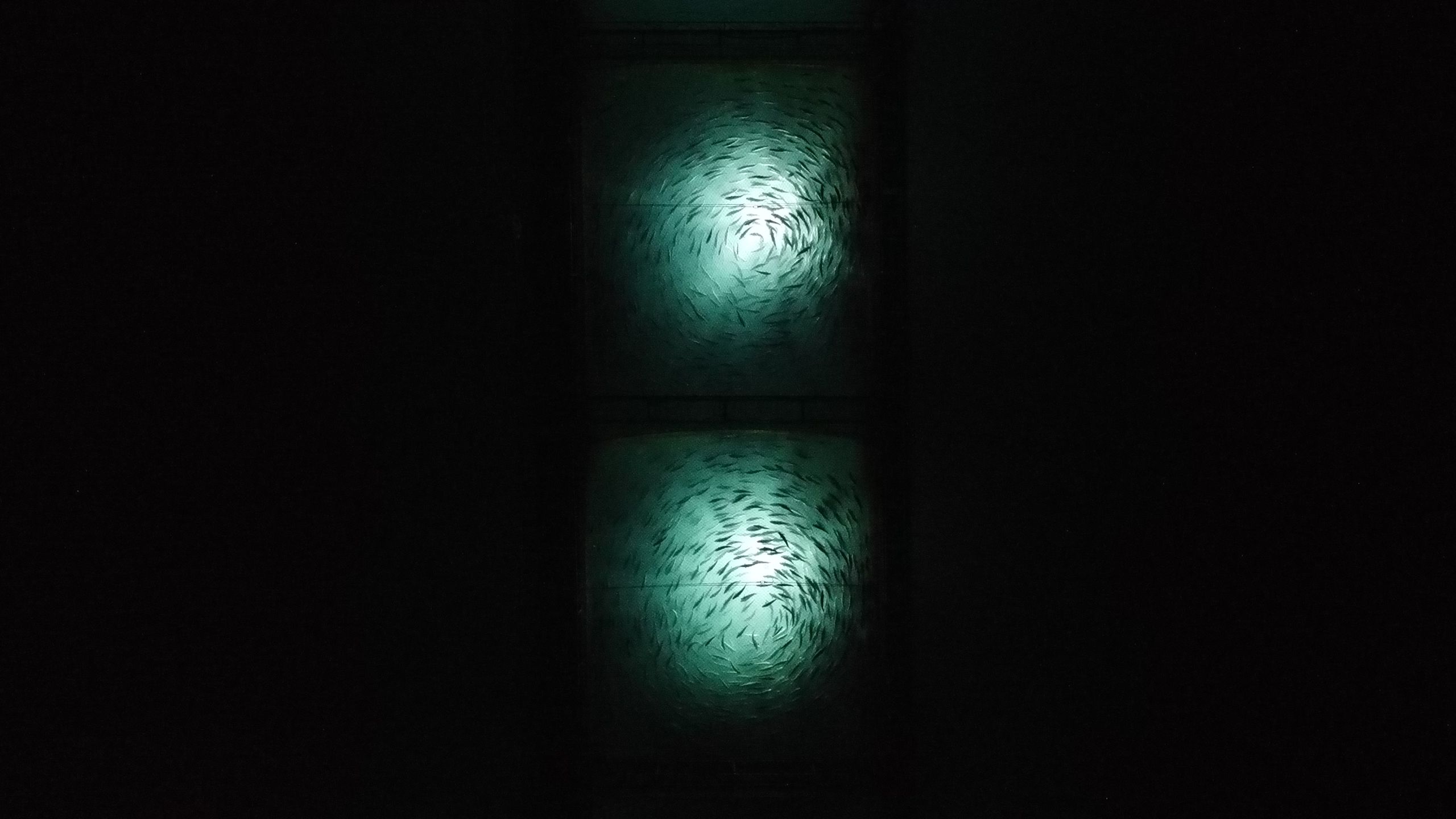

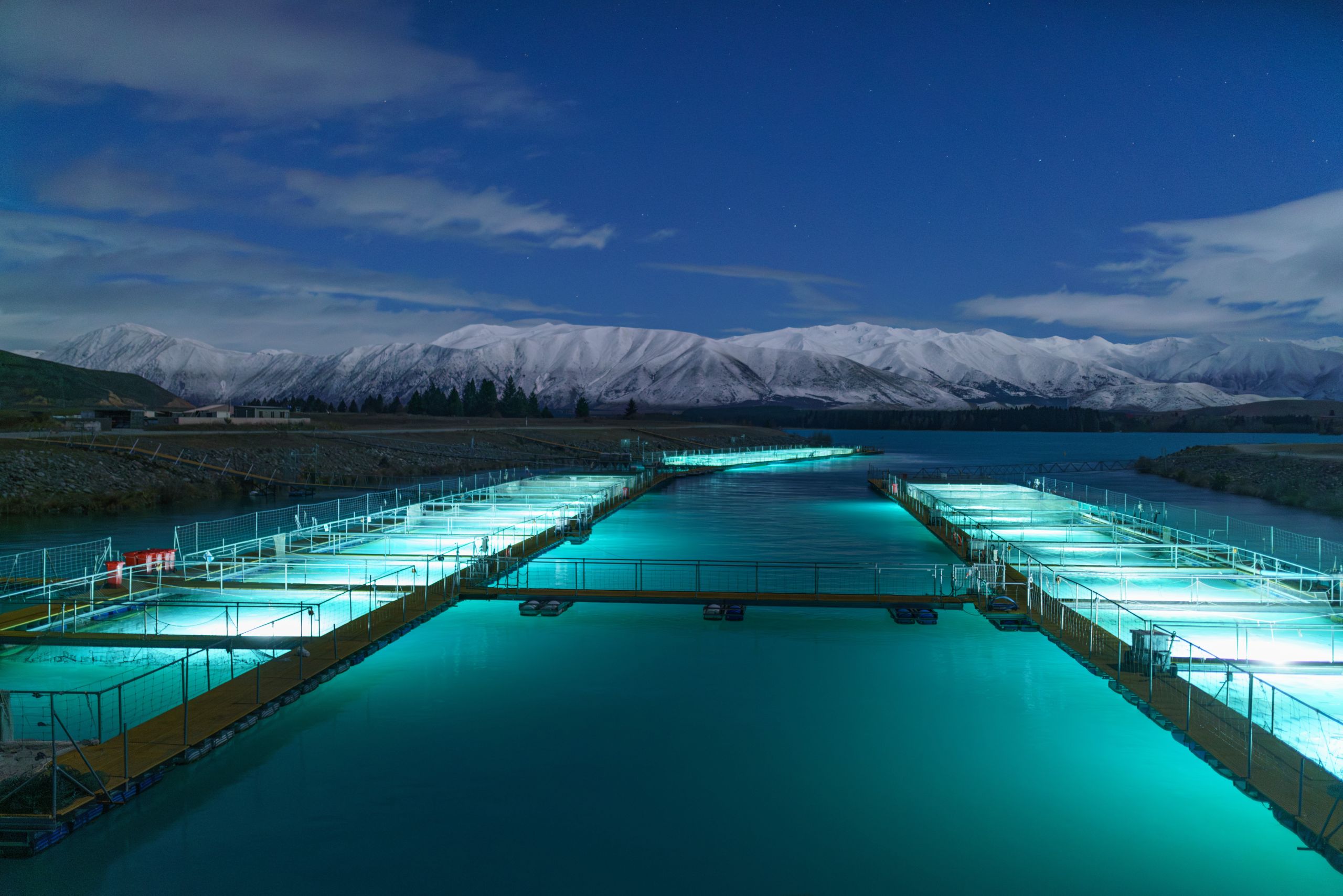

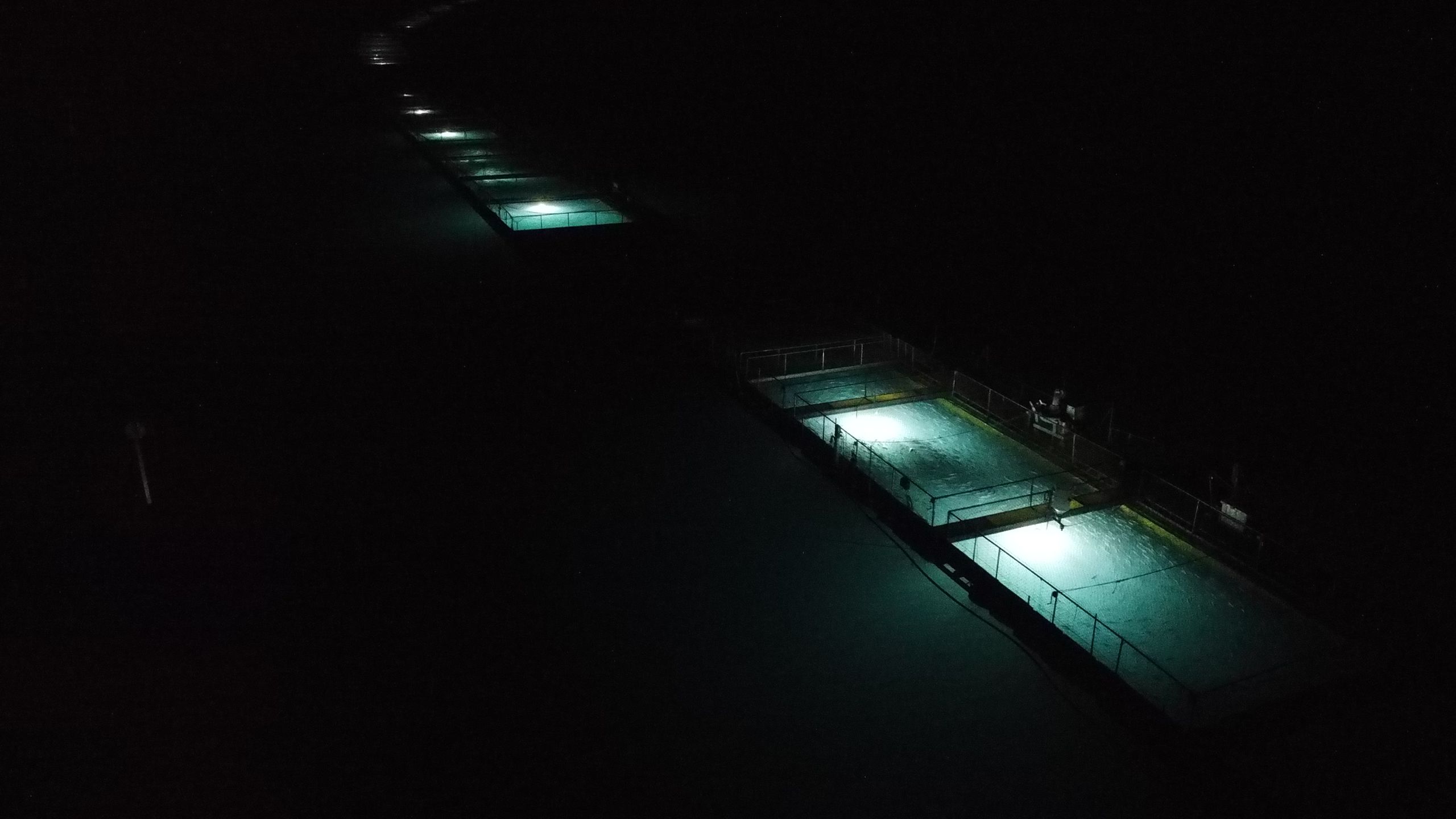

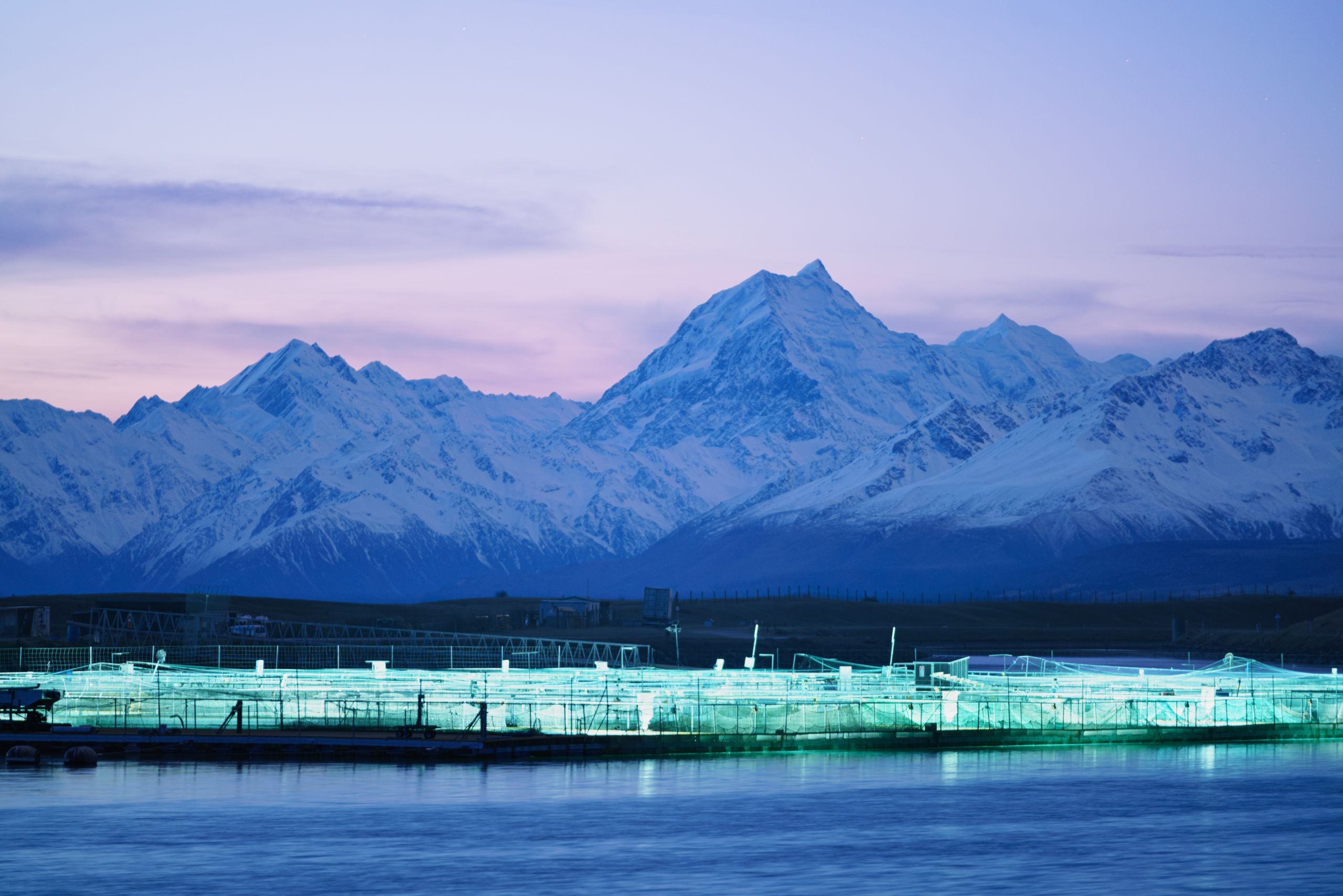

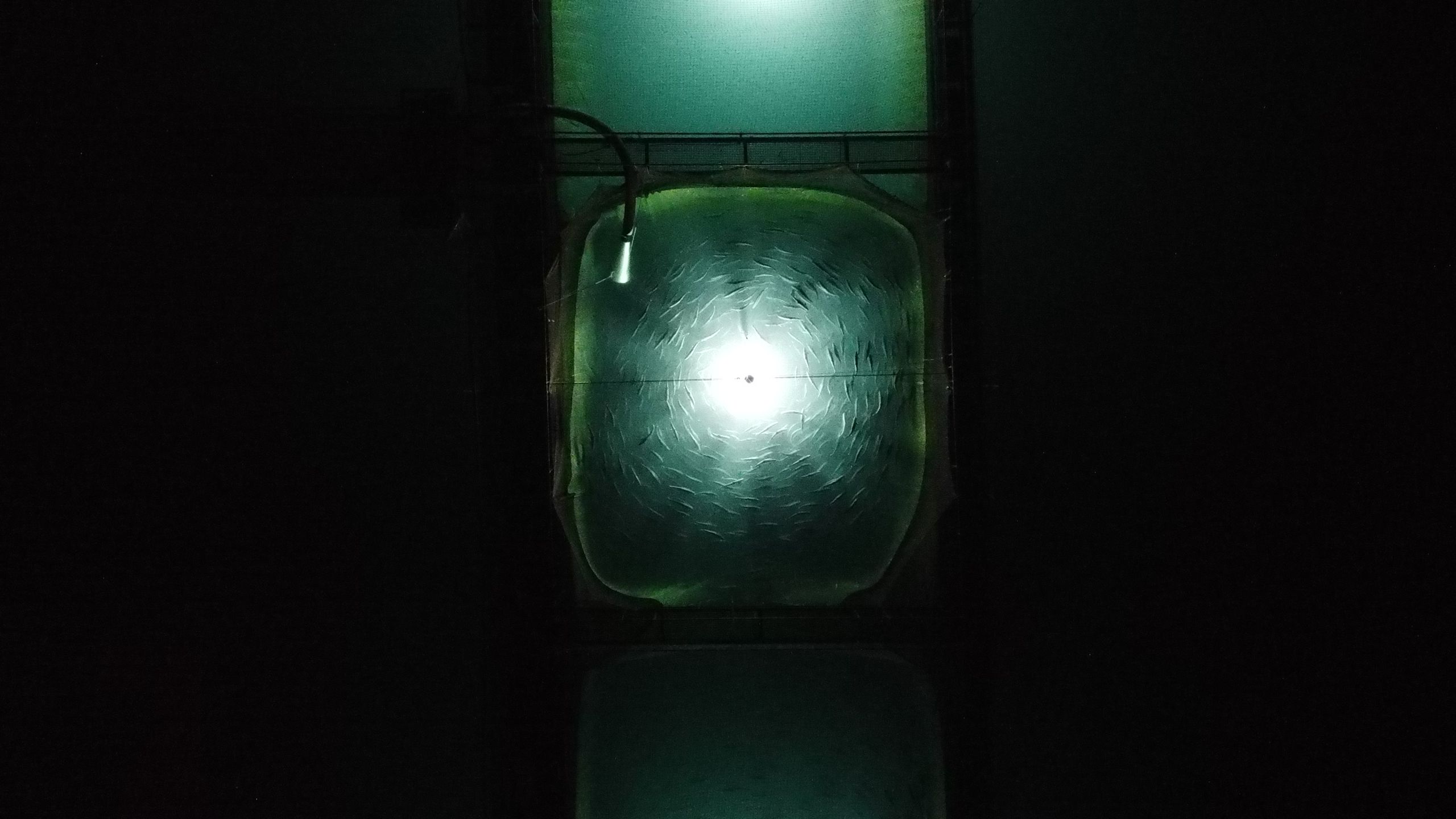

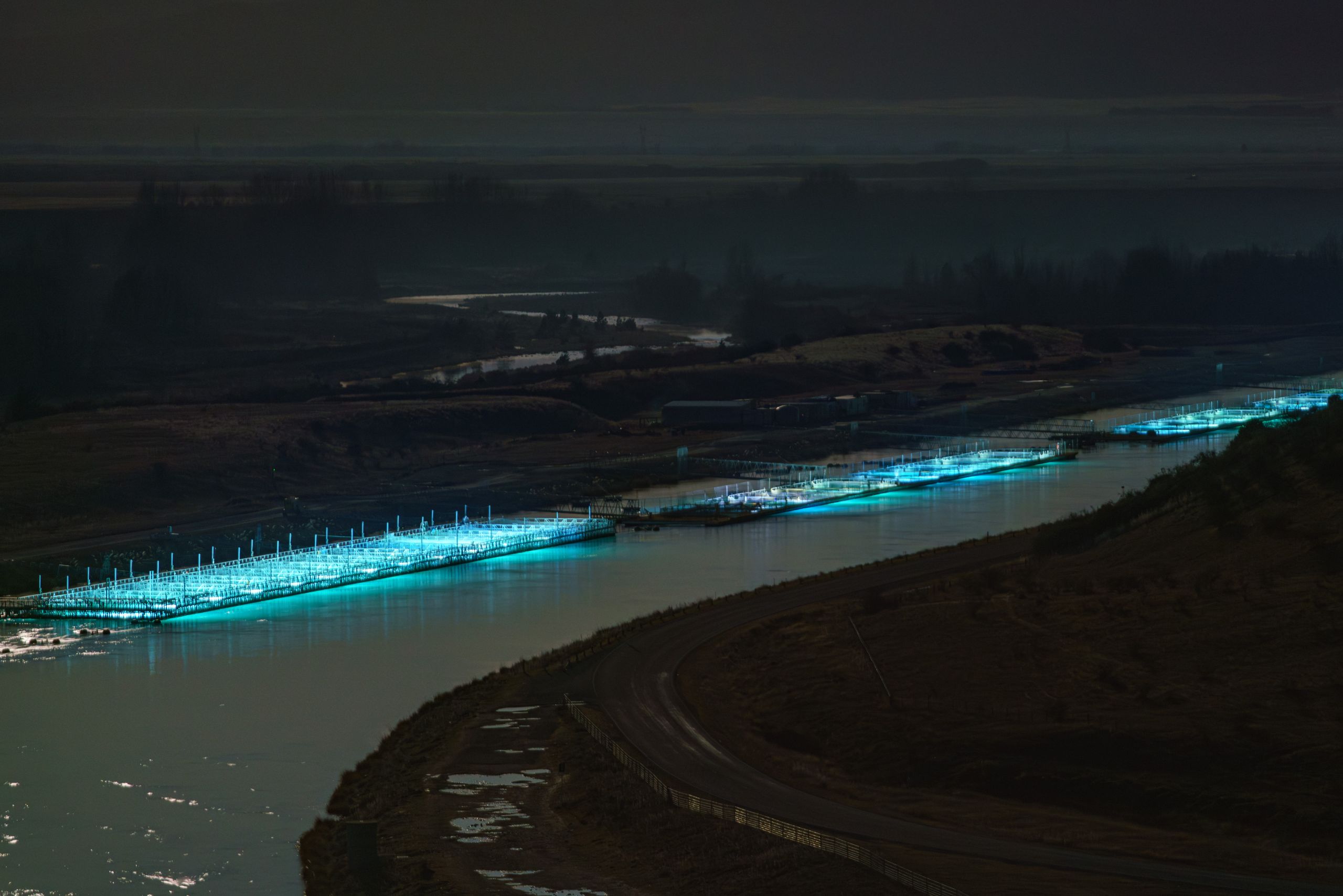

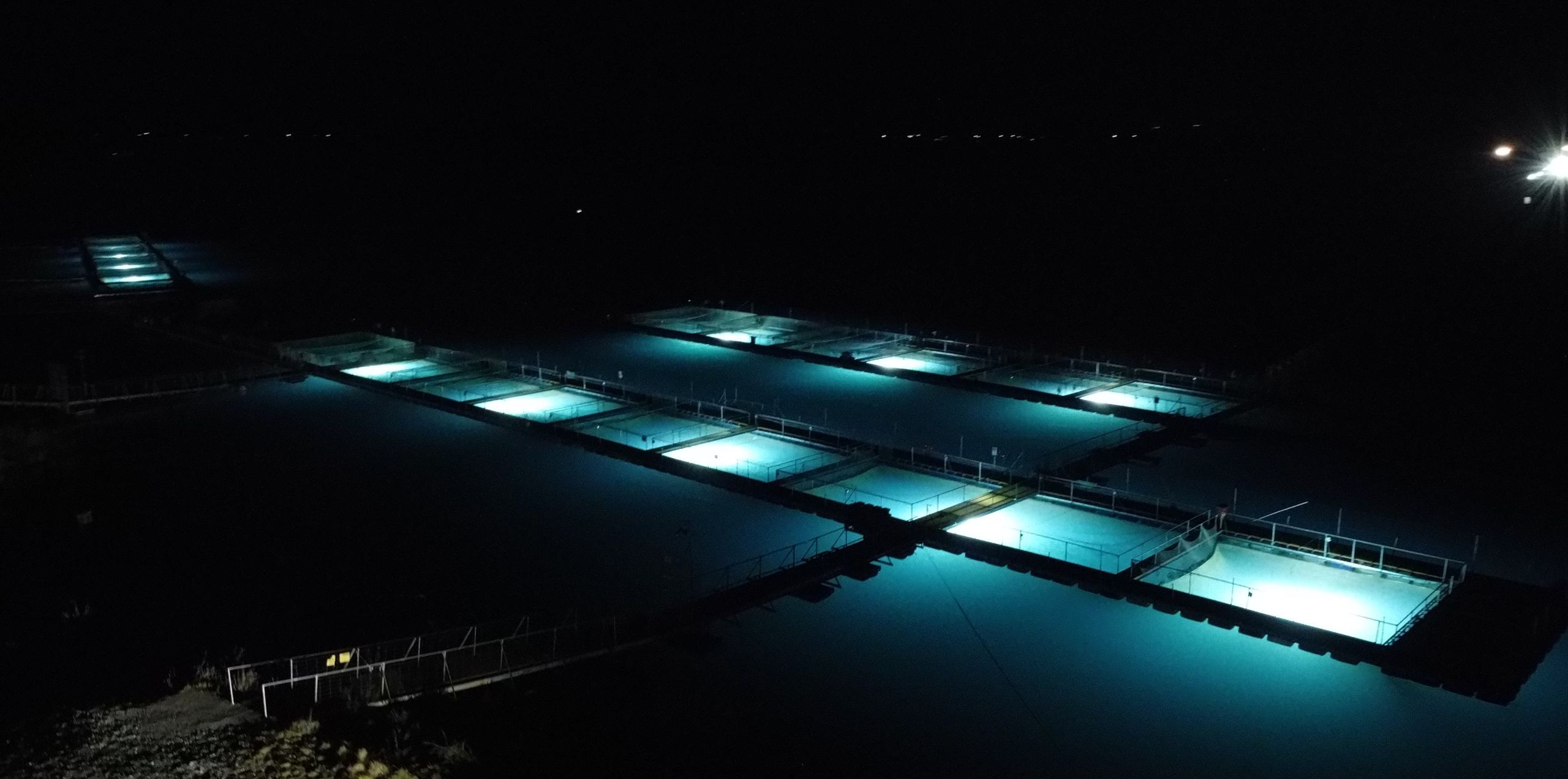

Heavy duty cylinder body proven over four years of field use from -15 °C to +37 °C in salmon, prawn, mussel and kelp farms, lakes, hydro channels and seawater
Sizing: choose on output and spectrum together — 24,000 lm at 5000 K as standard, or a nominated wavelength for a specific species response — then confirm the supply lead you need (30 m to 50 m) and the mounting for your set depth, up to the 8 m IP68 limit. PAR and PPFD figures are not published by the supplier, so talk to Fresh By Design if a photosynthetic value is required

Specification	Southern Salmon Lights (as supplied)
Light output	24,000 lm
Efficiency	120 lumens per watt
PAR / PPFD at a stated distance	Contact us
Colour temperature	5000 K, bright white
Colour rendering index	CRI 80
Wavelength	850 nm and 520 nm — can be customised to a required nm
Beam angle	360 degree
Input voltage	100 – 277 V
Running current	0.8 A
Power draw	Not separately stated by supplier — 24,000 lm at 120 lm/W implies approximately 200 W. Offered as a replacement for traditional 400 W underwater lamps
Ingress protection	IP68
Maximum operating depth	8 m
Operating temperature range	-15 °C to +37 °C, field tested over four years
Supply lead	30 m to 50 m
Body and fittings	Heavy duty cylinder body, 316 marine grade stainless steel fittings
Lamp replacement	Quick release mechanism
Start-up	Slow start, to prolong lamp life and avoid fish shock
Mounting method and overall dimensions	Refer to the Salmon Light dimension drawing below. Contact us for details.
Typical applications	Salmon, prawn, mussel and kelp farms; lakes, hydro channels and seawater systems

How deep can these lights be installed?

What light output and colour do they produce?

Can the spectrum be changed?

Is a PAR or PPFD figure available?

How much power do they draw?

How long are the supply leads?

How do I get a price?
