HCM UNO Mag Drive Pump

Q: How do I choose the right pump?

Work out your required flow and your total head, including pipe friction and any filter or UV losses, then pick the model that meets that flow at that head — the figures listed here are rated flow only, so ask us for the curve if your duty point is tight.

Q: What does seal-less actually mean in practice?

The motor drives the impeller through a magnetic coupling rather than a shaft passing through a mechanical seal, so the part that normally wears, weeps and eventually fails on a conventional pump simply is not there.

Q: Can the UNO run on salt water?

Yes — these pumps are rated for fresh or salt water, with a non-corrosive polypropylene housing and no shaft seal for salt to attack.

Q: What maintenance does a mag drive pump need?

There is no mechanical seal to replace. Keep the inlet clear of debris and rinse the impeller and housing periodically, and the pump largely looks after itself.

Q: What power supply do they need?

All three models run on a single phase motor with a built-in thermal protector.

Q: What flow at what head can I expect?

The rated flows on this page are 3,200, 4,200 and 6,600 LPH; head-against-flow data is not published in the literature we hold, so contact us for the pump curve before finalising a design.

Q: What connection sizes do they take?

20 mm threaded on the HCM75, and 25 mm threaded on the HCM100 and HCM135.

A seal-less magnetic drive pump for circulating seawater, fresh water and chemicals without leaks.

Price range: $250.00 through $450.00 ex GST

Option

Clear

Categories: Centrifugal Pumps, Water Pumps

Applications: LSS, Pond, Reef Aquarium

Brand: HCM

Product Information

Key Features

Magnetic drive, seal-less design — the motor turns the impeller through a magnetic coupling, so there is no shaft seal to wear out or leak
Suitable for fresh or salt water duty
Non-corrosive polypropylene housing
Highly efficient and economical to run

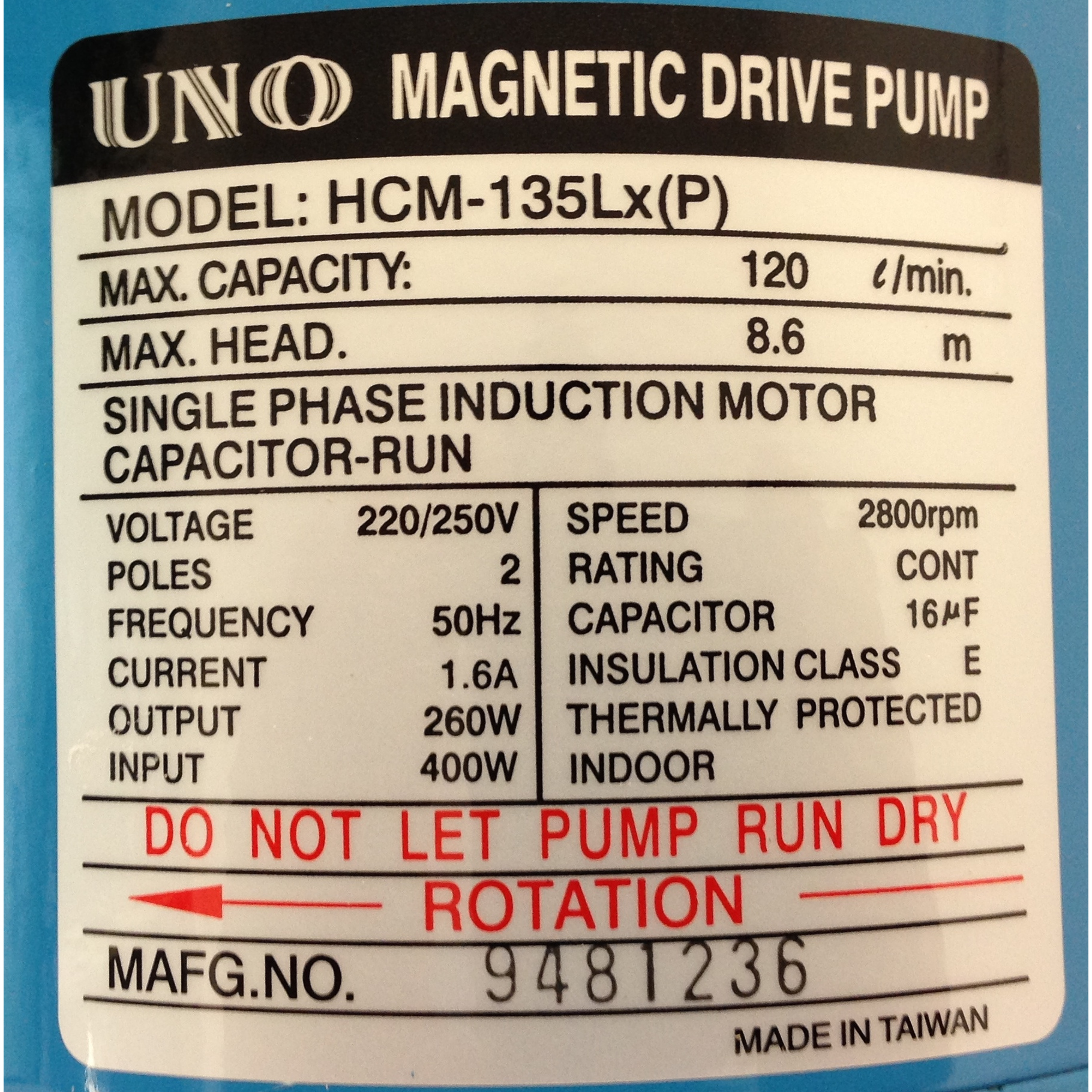

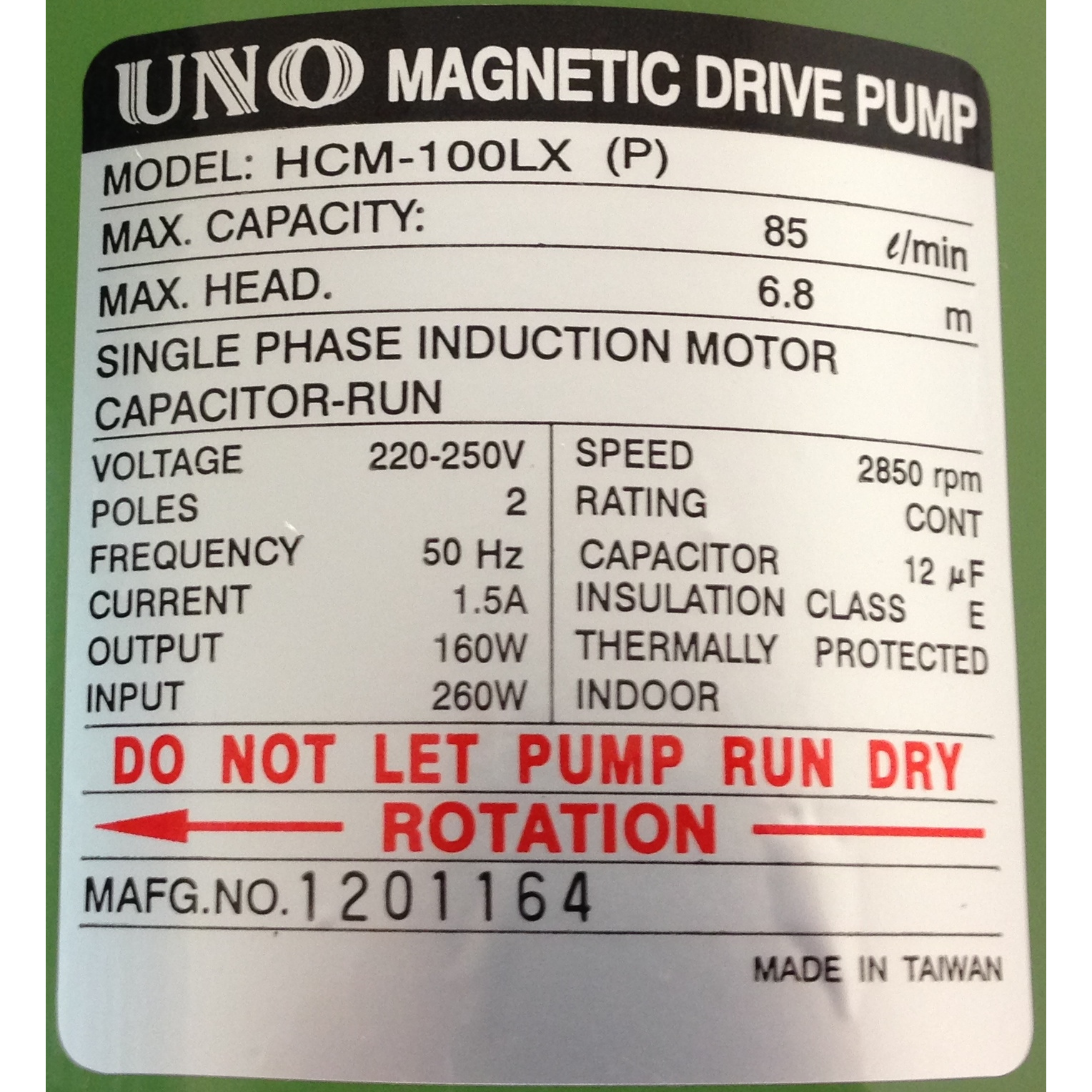

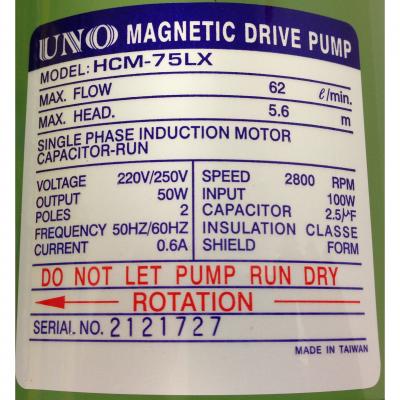

Single phase motor with built-in thermal protector
Three sizes — 3,200, 4,200 and 6,600 LPH — with 20 mm or 25 mm threaded connections
Flow against head is not published for this range, so ask us for the pump curve before you commit to a duty point
To size a pump, work out your required flow and your total head, including pipe friction and any filter or UV losses, then pick the model that meets that flow at that head

Specifications

Model	SKU	Rated flow	Motor	Connection	Weight	Dimensions (L × W × H)
HCM75	HCM75	3,200 LPH	Single phase, thermal protector	20 mm threaded	4.1 kg	30 × 15 × 18 cm
HCM100	HCM100	4,200 LPH	Single phase, thermal protector	25 mm threaded	7.7 kg	33 × 22 × 20 cm
HCM135	HCM135	6,600 LPH	Single phase, thermal protector	25 mm threaded	10 kg	40 × 24 × 20 cm

Frequently Asked Questions

How do I choose the right pump?

What does seal-less actually mean in practice?

Can the UNO run on salt water?

What maintenance does a mag drive pump need?

What power supply do they need?

What flow at what head can I expect?

What connection sizes do they take?

Spare Parts & Consumables

No products were found matching your selection.
