Waterco Hydrostorm Eco – Variable Speed Pump

Q: How do I choose the right pump?

Work out your required flow and your total head, including pipe friction and any filter or UV losses, then pick the model that meets that flow at that head – a flow figure on its own does not size a pump.

Q: What does the variable speed actually buy me?

Motor input on the ECO-V 100 drops from 0.86 kW on high to 0.16 kW on low, so running the pump slower for longer moves water at a fraction of the power a throttled fixed-speed pump would draw.

Q: Do I need a separate VFD?

No – the speed control is built into the permanent-magnet DC motor, so there is no external drive to buy, mount or wire.

Q: Is the Hydrostorm Eco self-priming?

Waterco’s Eco-V data sheet does not publish a suction lift figure, so we size the Eco on flooded suction by default – tell us your suction arrangement and we will confirm it.

Q: Is it single phase or three phase?

Both Eco models are single phase; if you need three phase, look at the Hydrostar Plus, or run a fixed-speed Hydrostorm or TurboFlo on a separate drive.

Q: Does it suit salt water?

The Eco is not listed with the sea water mechanical seal that the Supastream, Hydrostorm, Hydrostar Plus and TurboFlo carry, so talk to us before specifying it on salt water.

Q: Where does the Eco sit in the Waterco range?

It is the smallest and the only variable speed pump we list, up to about 264 LPM at 7.3 m head; Supastream, Hydrostorm and TurboFlo cover the mid range and Hydrostar Plus the largest duties.

A variable speed pump for water circulation in aquaculture, aquaponic and pond systems.

Option

Clear

Request a Quote

Categories: Centrifugal Pumps, Water Pumps

Applications: Pond, Public Aquarium, RAS, Reef Aquarium

Brand: Waterco

Waterco Hydrostorm Eco - Variable Speed Pump

Waterco Hydrostorm Eco - Variable Speed Pump - Image 2

Waterco Hydrostorm Eco - Variable Speed Pump - Image 3

Product Information

Key Features

Permanent-magnet brushless DC motor with speed adjustable in 25 rpm increments, so flow is matched to the duty instead of being throttled at a valve
ECO-V 100 duty across its speed range: 142 LPM at 1.8 m head on low, 145 LPM at 4.7 m on eco, 220 LPM at 5.3 m on medium and 264 LPM at 7.3 m on high
Motor input falls from 0.86 kW on high to 0.16 kW on low — that turndown is where the running-cost saving comes from, so running slower for longer beats throttling a fixed-speed pump
Two models, ECO-V 100 (1 HP) and ECO-V 150 (1.5 HP), both single phase with 50 mm inlet and outlet
2.1 litre strainer basket ahead of the impeller; 12 kg packaged weight on the ECO-V 100
Eight-star energy rating and quiet running, measured at 55.8 to 62.3 dBA across the four speed settings
The smallest pump in the Waterco range we stock — step up to Supastream, Hydrostorm or TurboFlo for higher fixed-speed duties, and Hydrostar Plus for the largest
To size it, work out your required flow and your total head, including pipe friction and any filter or UV losses, then pick the model that meets that flow at that head

Specifications

Model	SKU	Speed setting	Flow at head	Motor input	Supply	Connections
Hydrostorm ECO-V 100	2441009	Low — 1,475 rpm	142 LPM @ 1.8 m / 127 LPM @ 2.3 m / 115 LPM @ 2.8 m	0.16 kW	1 phase	50 mm in / 50 mm out
Hydrostorm ECO-V 100	2441009	Eco — 1,900 rpm	145 LPM @ 4.7 m / 129 LPM @ 5.5 m / 107 LPM @ 6.3 m	0.30 kW	1 phase	50 mm in / 50 mm out
Hydrostorm ECO-V 100	2441009	Medium — 2,410 rpm	220 LPM @ 5.3 m / 193 LPM @ 7.0 m / 135 LPM @ 9.9 m	0.53 kW	1 phase	50 mm in / 50 mm out
Hydrostorm ECO-V 100	2441009	High — 2,850 rpm	264 LPM @ 7.3 m / 201 LPM @ 11.8 m / 134 LPM @ 15.2 m	0.86 kW	1 phase	50 mm in / 50 mm out

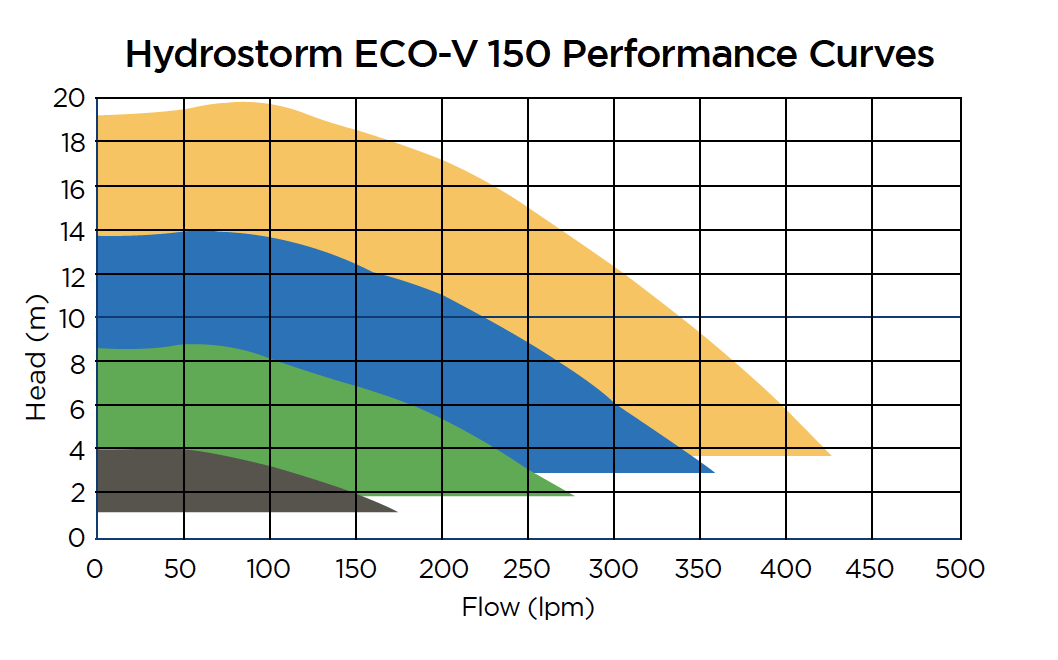

Hydrostorm ECO-V 150	2441509	Variable — full range	100–400 LPM @ 5 m head across the speed range	1.5 HP (input not published)	1 phase	50 mm in / 50 mm out

Downloads

Hydrostorm Eco-V Brochure

Frequently Asked Questions

How do I choose the right pump?

What does the variable speed actually buy me?

Do I need a separate VFD?

Is the Hydrostorm Eco self-priming?

Is it single phase or three phase?

Does it suit salt water?

Where does the Eco sit in the Waterco range?

Spare Parts & Consumables

No products were found matching your selection.
