DPIPWE Mount Pleasant – Fish Health Unit

Project Details

CLIENT: DPIPWE Mount Pleasant
PROJECT LOCATION: Prospect, TAS
COMPLETION DATE: 2014
SYSTEM TYPE:
SPECIES:
SERVICES PROVIDED: ,
PROJECT STATUS:

Project Overview

Design and installation of a freshwater and seawater research system for salmonid vaccine development and testing.

System Size

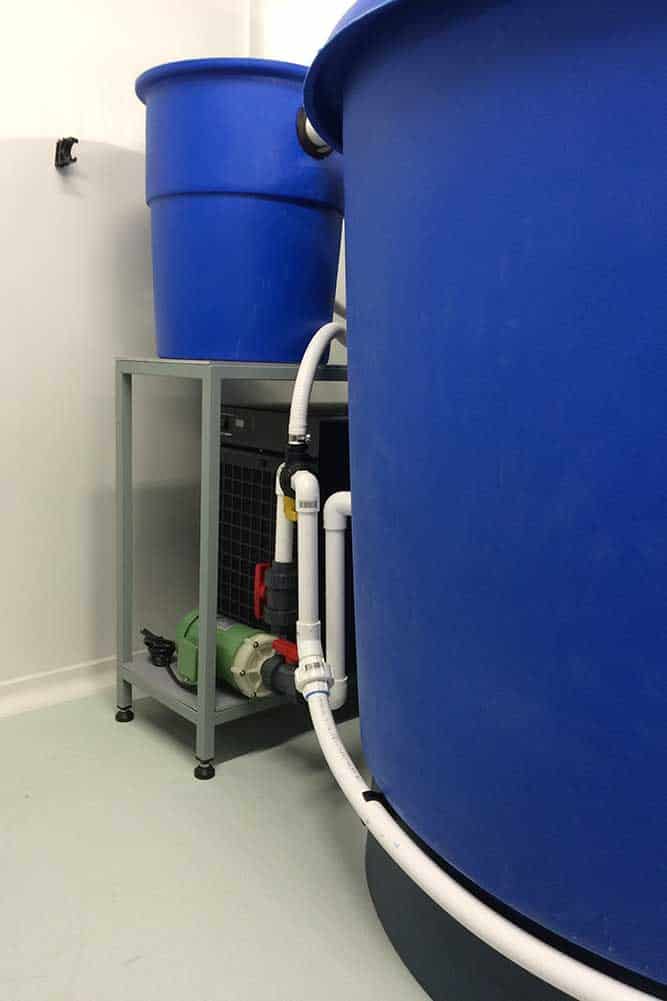

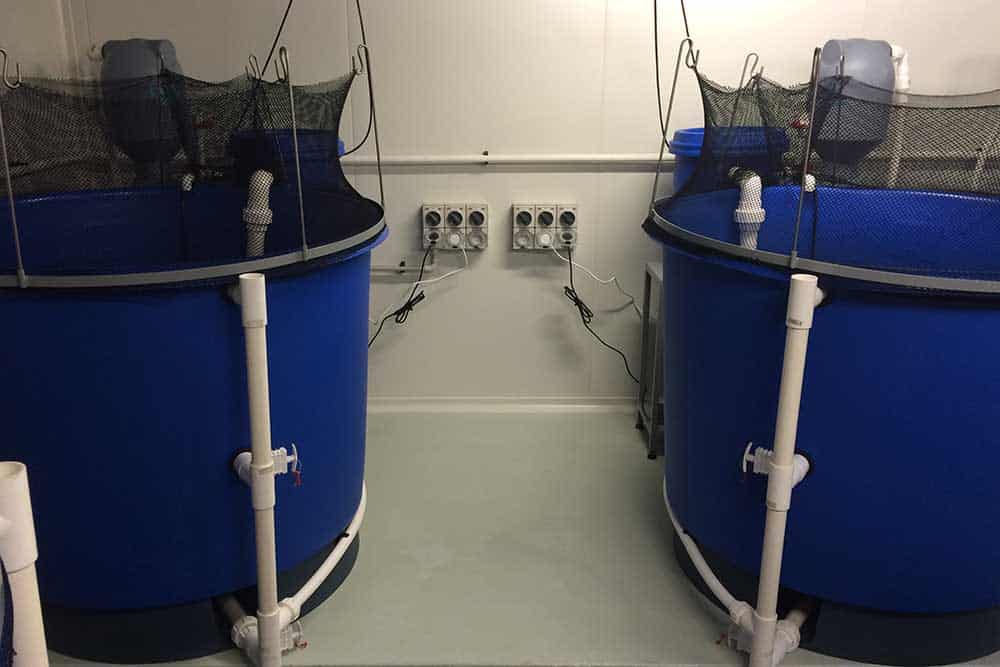

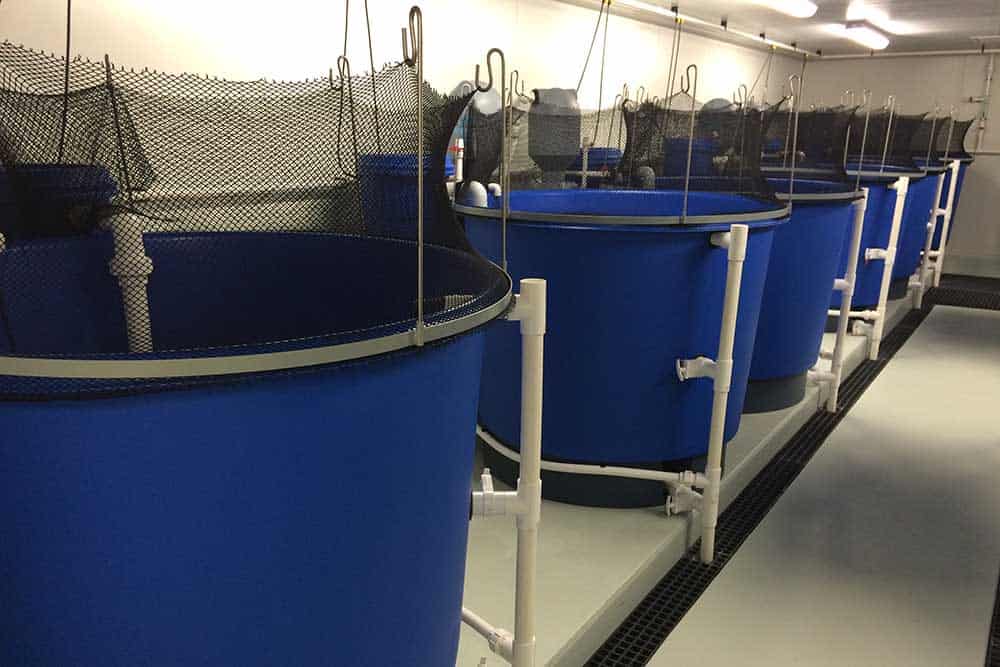

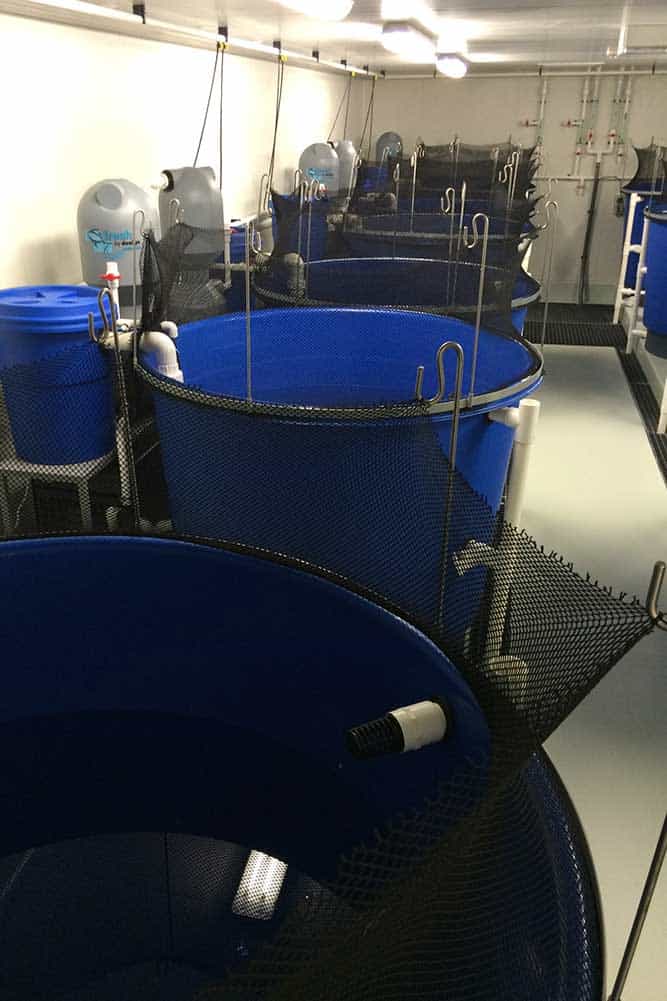

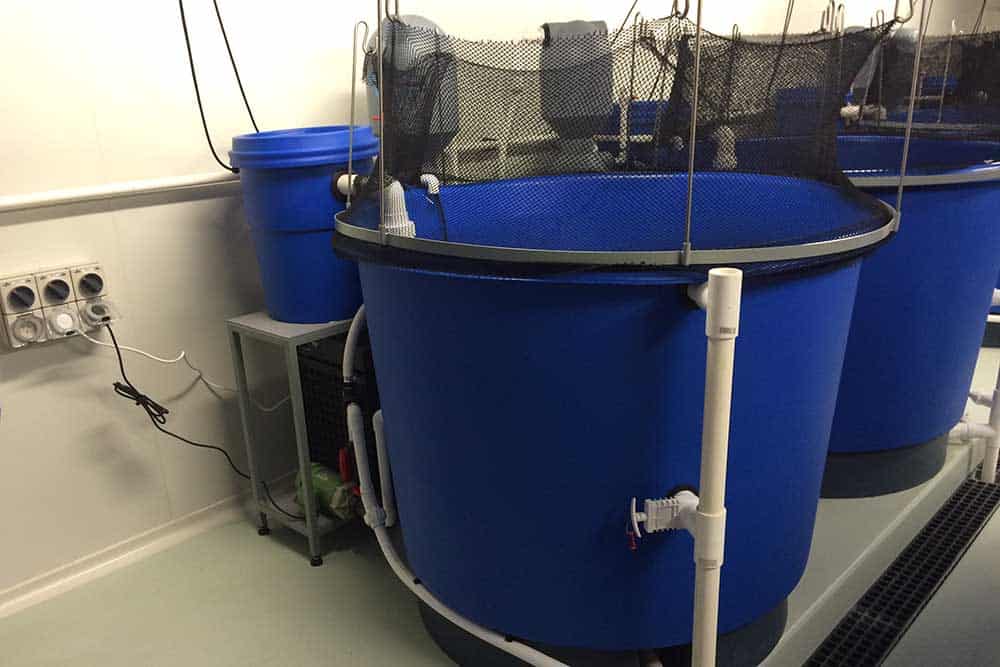

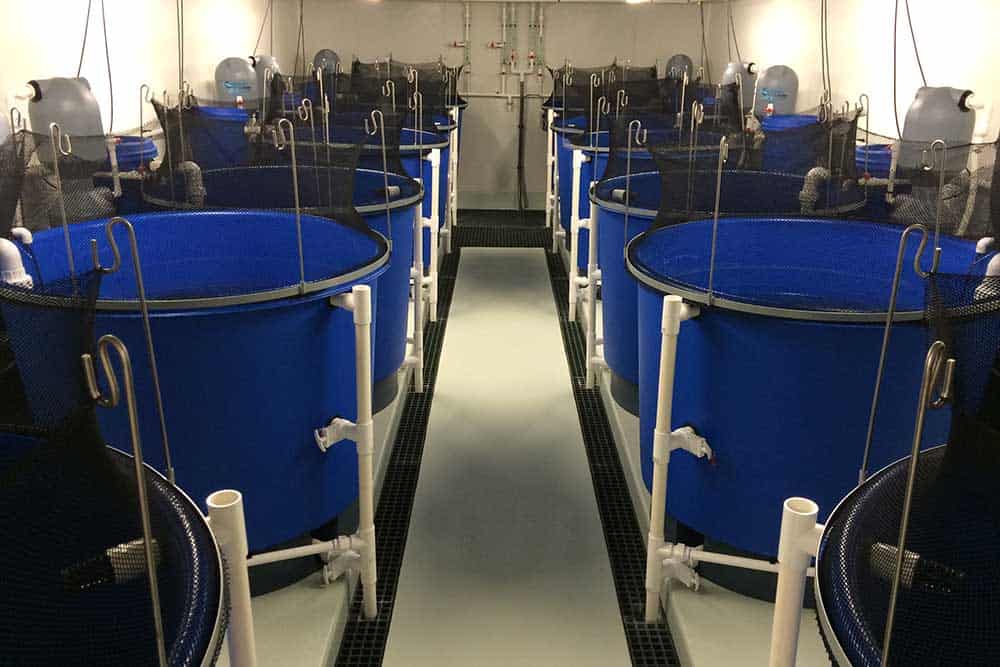

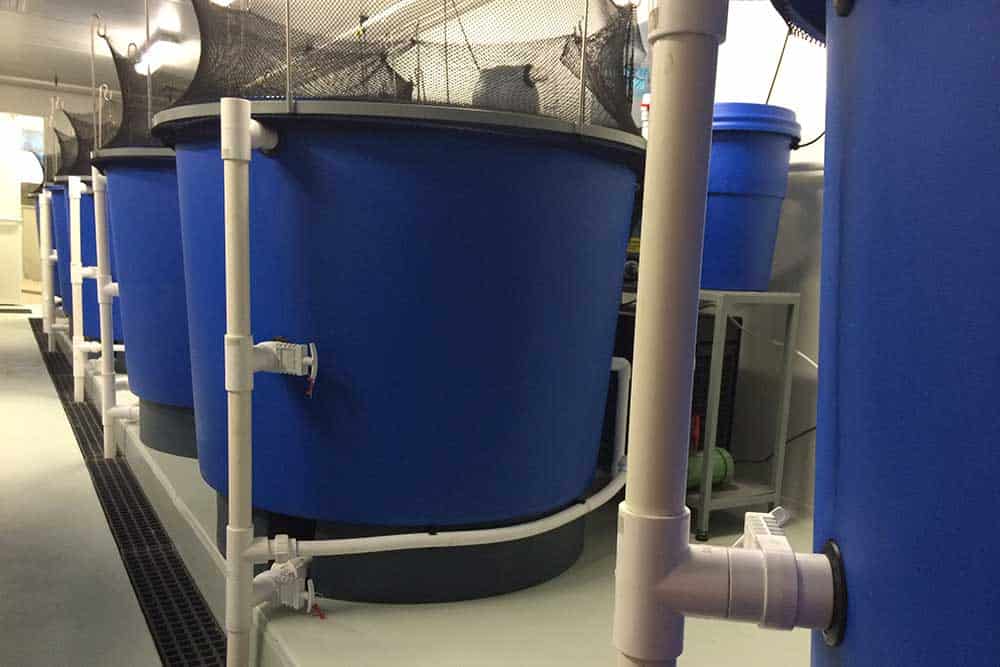

Up to 48 x 1,000 L individually filtered recirculation systems – 12 tanks in each of three PC2 biosecure rooms (11 m x 5 m) plus an upgrade to the existing room, with a 30-minute tank exchange and a separate biofilter conditioning room

Key Equipment

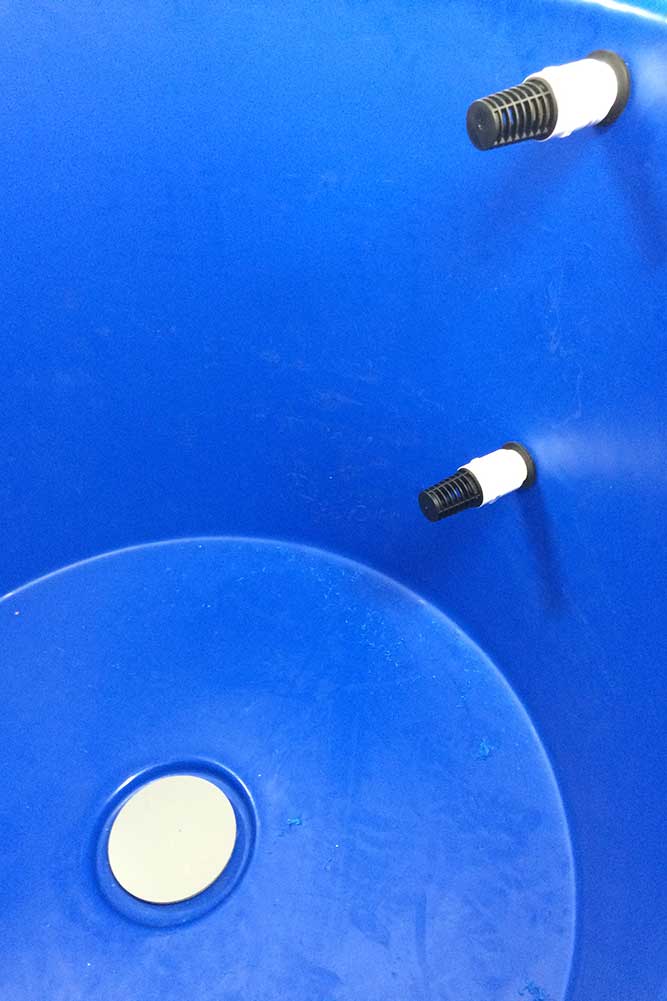

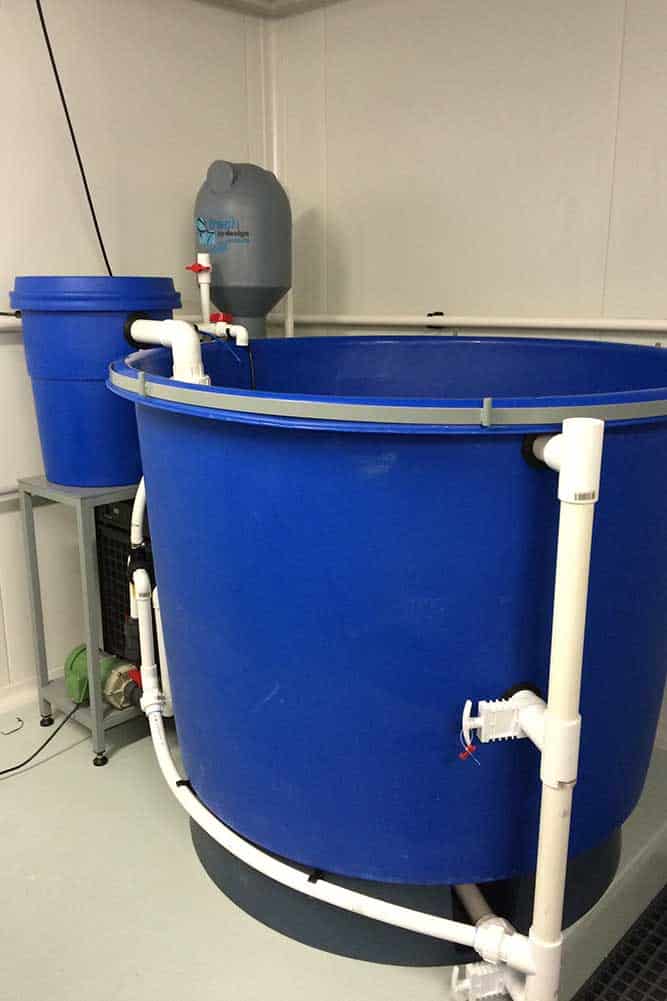

  • Polymaster 1,000 L poly tanks

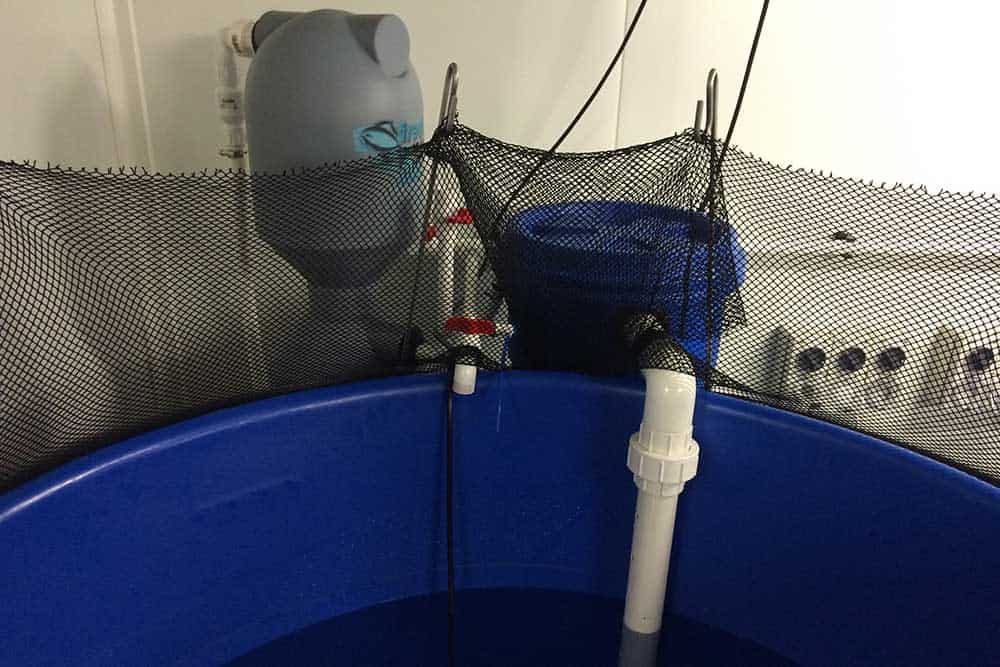

  • Aquasonic BBFXS-1000 bubble bead filters

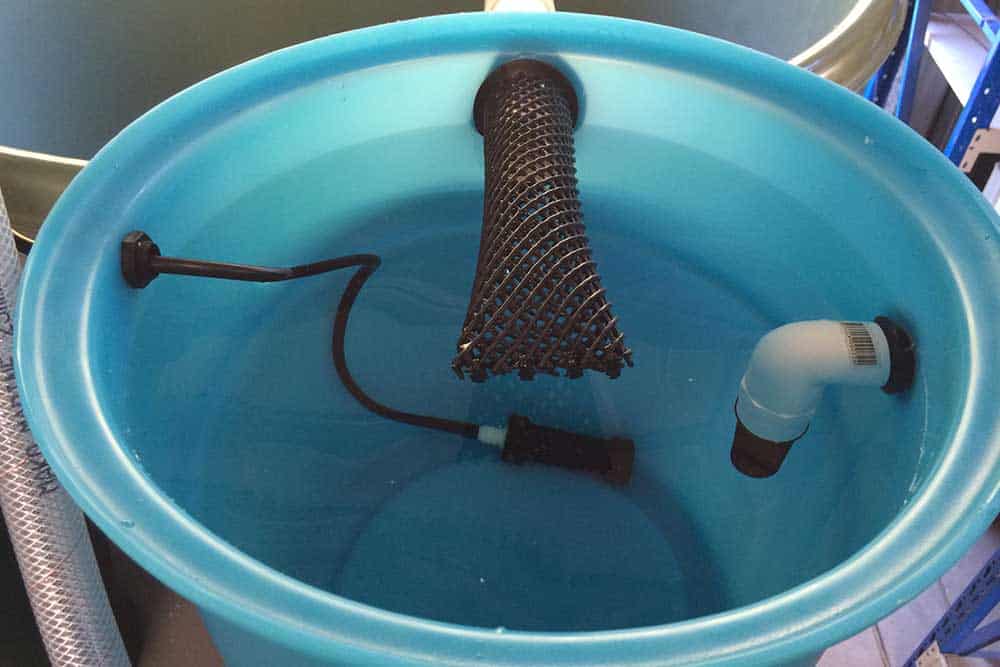

  • Moving bed bioreactors with Kaldnes C1 media

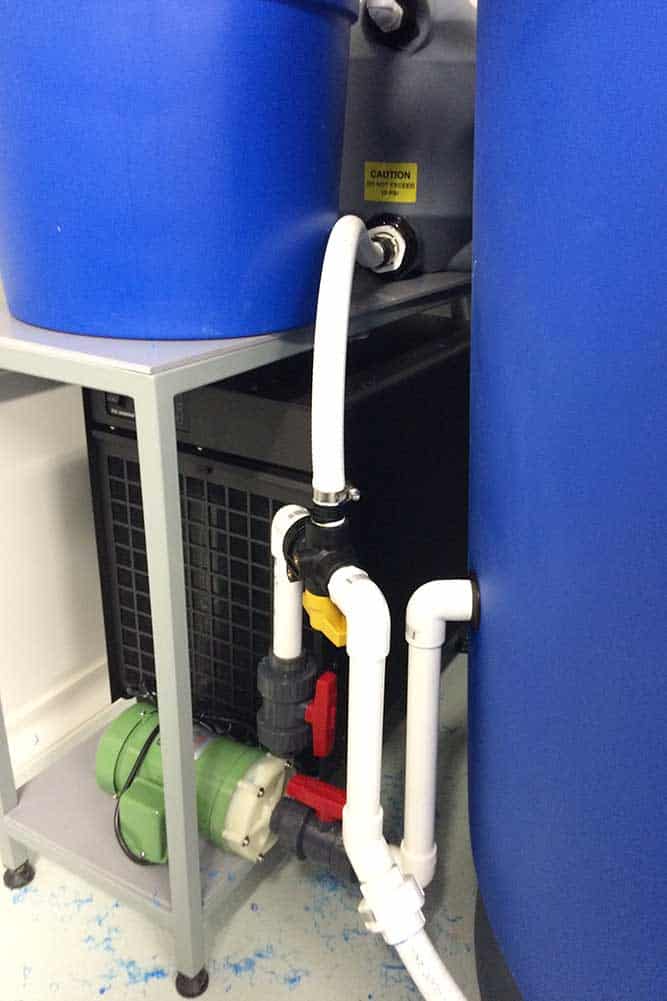

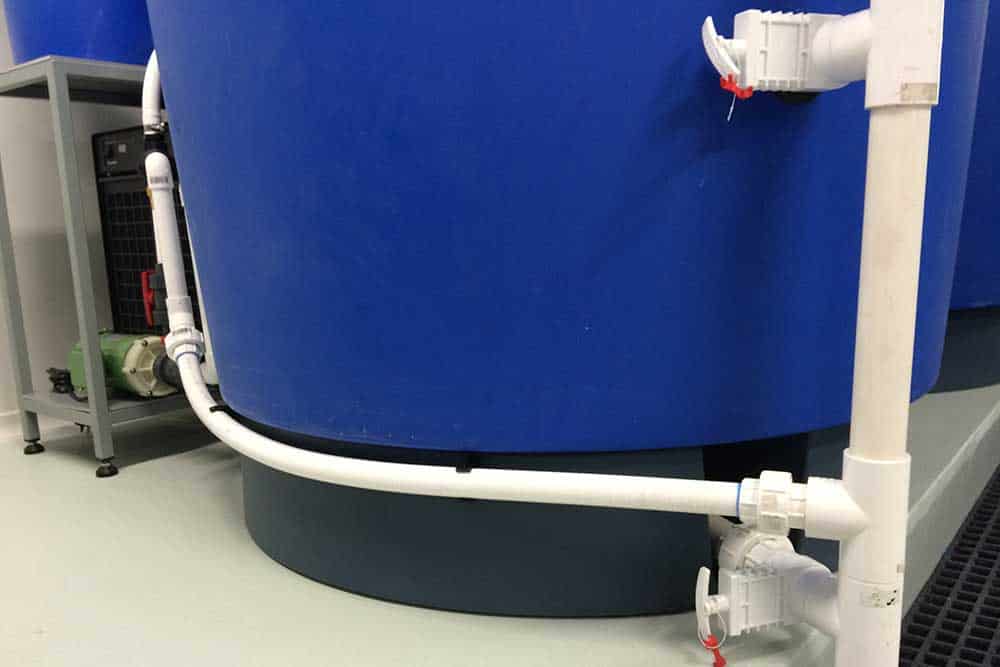

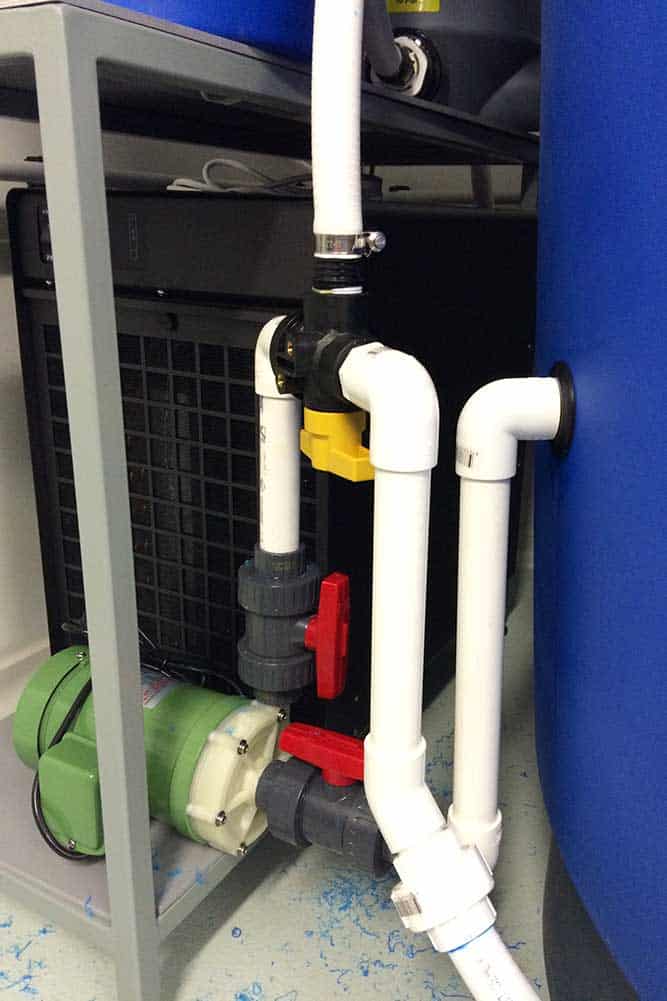

  • Magnetic drive seal-less circulation pumps
  • Teco heater/chiller units with titanium heat exchangers
  • DBMX-200 diaphragm air pumps
  • RK2 Xflo protein fractionators for seawater duty

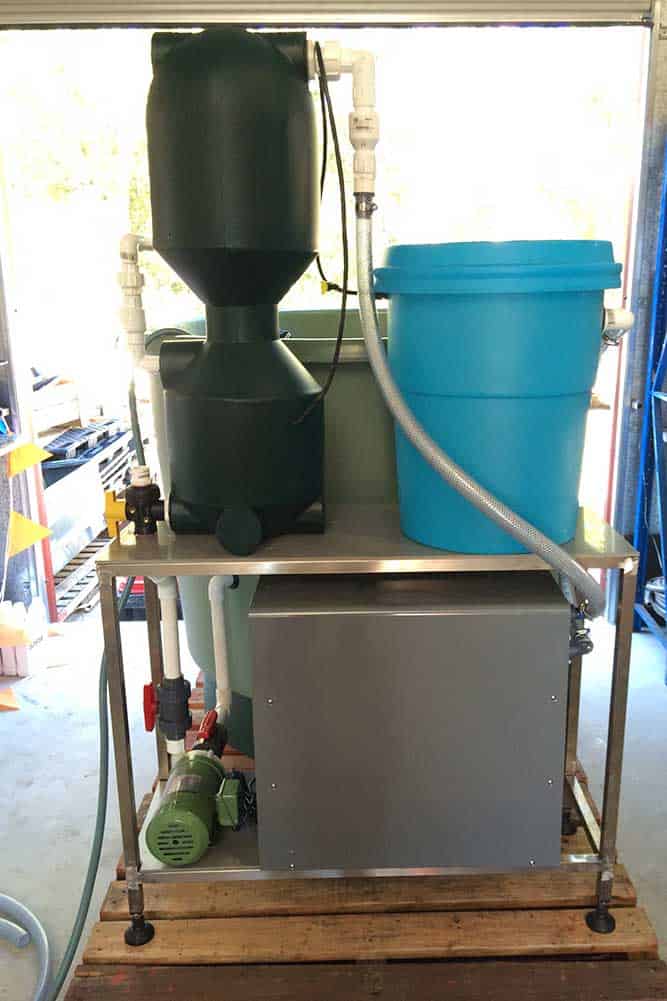

  • 316 stainless steel equipment stands
