Huon Aquaculture – Water Intake Filtration and Oxygen Injection

Project Details

CLIENT: Huon Aquaculture
PROJECT LOCATION: Millybrook, TAS
COMPLETION DATE: 2017
SYSTEM TYPE:
SPECIES:
SERVICES PROVIDED: ,
PROJECT STATUS:

Project Overview

FBD completed a project including design, installation and equipment supply for the Millybrook flow-through farm. The site was upgraded to include improved water filtration, upgraded oxygen systems, full design of the pipework layout and supply of equipment. FBD supplied FBD Oxygen Cones, a Faivre drum filter, and Grundfos supply pumps with VSDs.

Solution

Upgrade of water intake filtration and oxygen injection on an existing flow-through farm, including full pipework layout design and supply of oxygen cones, drum filtration and variable-speed supply pumping.

System Size

Faivre 16-160 on-frame 304 stainless drum filter with 2 mm screen; 4 x Grundfos 120 L/s (37 kW) VSD pumps on a common manifold feeding oxygen cones at the head of each pond

Key Equipment

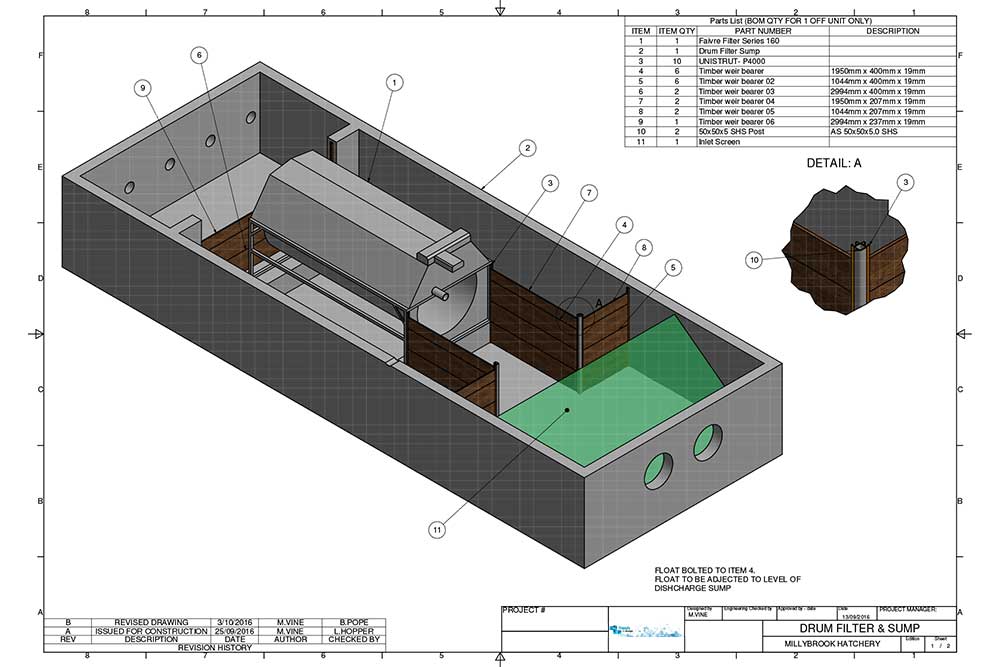

  • Faivre 16-160 on-frame 304 stainless drum filter with 2 mm screen

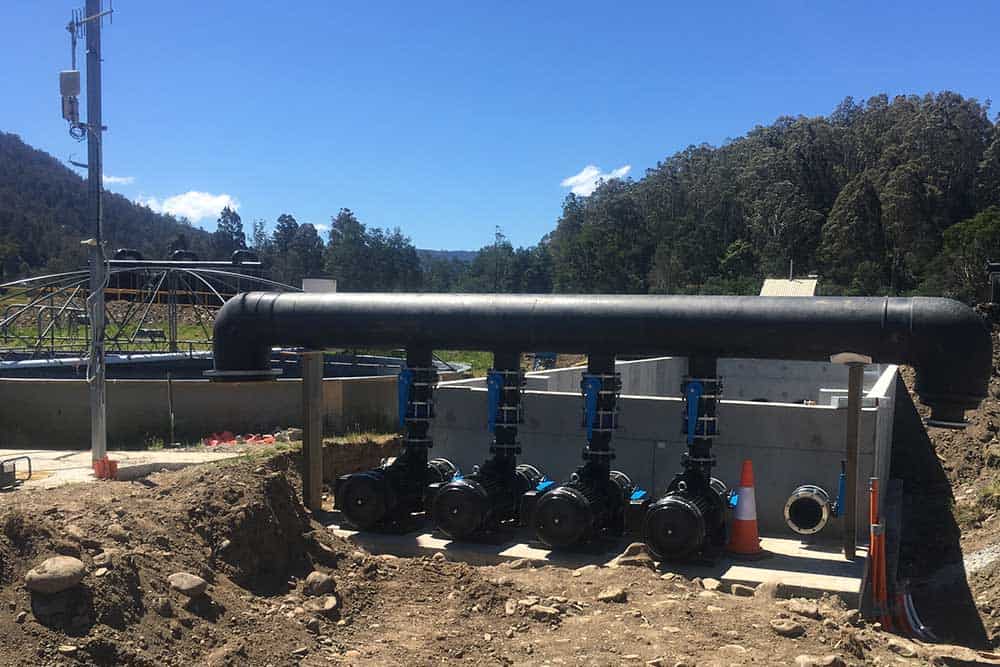

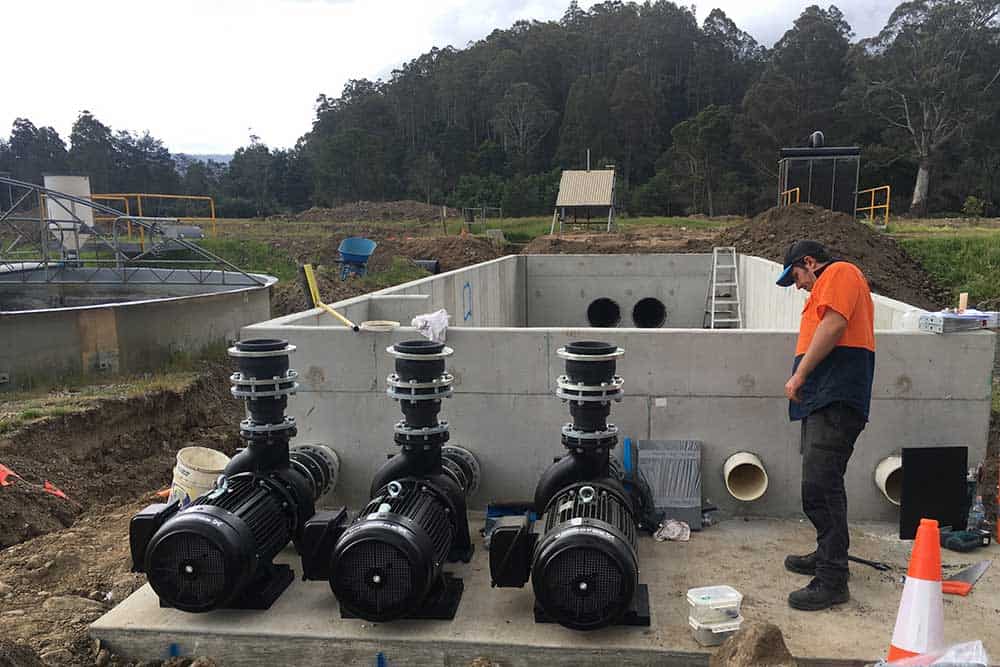

  • 4 x Grundfos 120 L/s (37 kW) VSD pumps on a common manifold feeding oxygen cones at the head of each pond

Project Partners

Huon Aquaculture Millybrook, Aquaculture Projects, Fresh by Design
