Oxyprax needs next to no maintenance beyond a regular clean to keep it free of debris — see the How to Clean Oxyprax guide under Documents & Resources.

Bubbletech Oxyprax Tubing

Q: How much Oxyprax do I need?

Multiply 2 LPM per metre by your diffuser length, or divide your total required gas flow by 2 LPM per metre to get the length needed — keep each individual diffuser run to 200 cm or less.

Q: What bubble size does it produce?

Under 0.5 mm, from roughly 120,000 micro-perforations per metre.

Q: What pressure does it need?

1 bar working pressure at the diffuser, plus enough to overcome the water depth it is set at.

Q: Does it need weighting?

Yes — Oxyprax is not self-weighted and needs additional weight to hold it in position.

Q: Do I need to soak it before use?

Yes — soak every new diffuser in water for a few hours so the micro-bubbles form as intended.

Q: How does it differ from Airprax and the Colorite Aero-Tube range?

Oxyprax is built for pressurised gas such as oxygen, ozone or CO2 at 1 bar, Airprax is the air version at 0.35 bar, and Colorite Aero-Tube is a coarser leaky-hose product for blower air at 1 PSI.

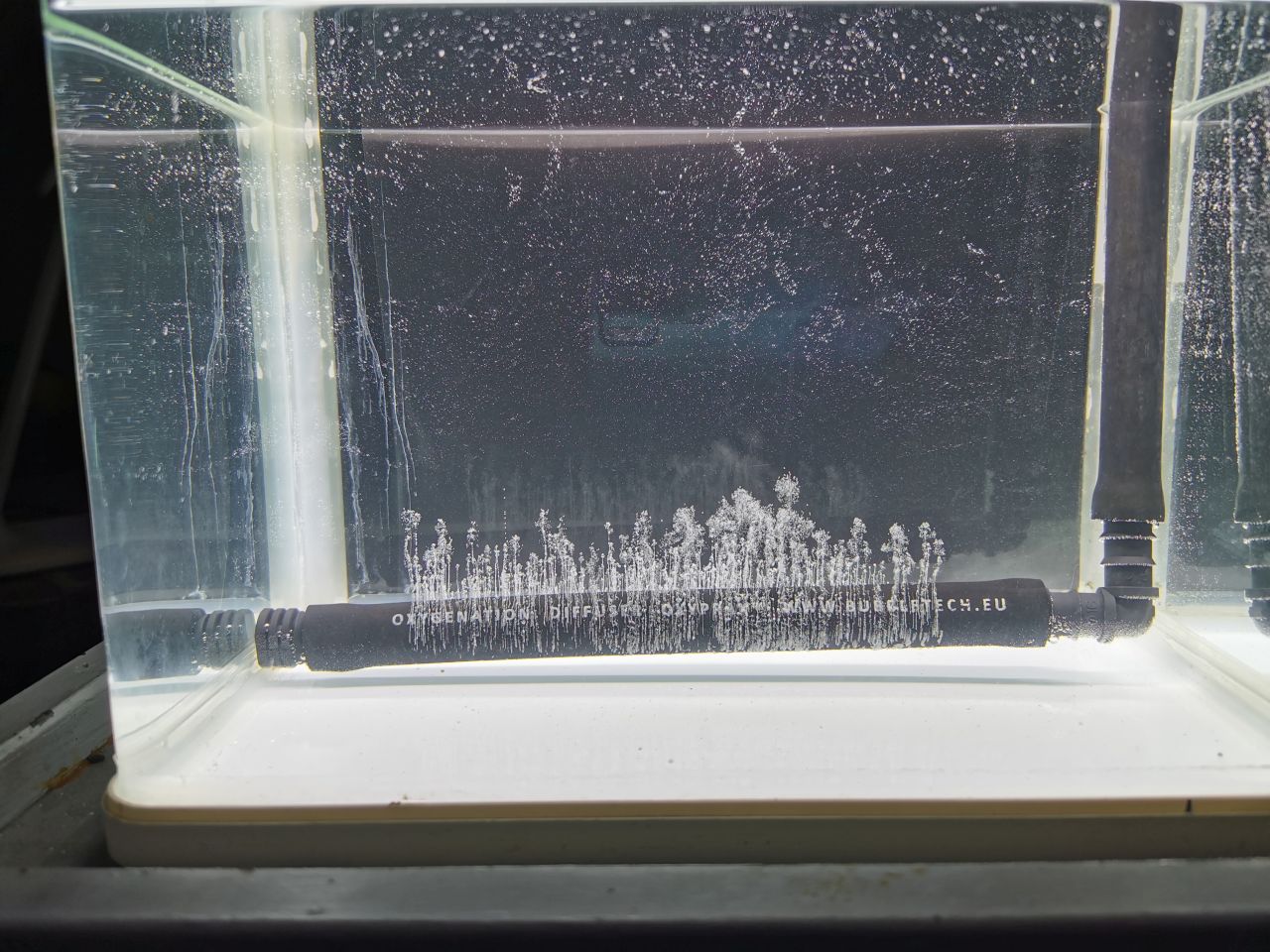

Micro-bubble diffuser tubing for dissolving pressurised oxygen, ozone or CO2 into tanks, raceways and transport systems.

Price range: $50.00 through $1,700.00 ex GST

Option

Clear

Categories: Aeration, Airstones / Diffusers, Hose & Tubing, Oxygen & Ozone

Applications: Live Holding & Purging, Live Transport, Public Aquarium, RAS

Brand: Bubbletech

Product Information

Key Features

Patented micro-bubble linear diffuser in EPDM rubber, made for pressurised gas — oxygen, ozone or CO2
Approximately 120,000 micro-perforations per metre producing bubbles under 0.5 mm
Recommended gas flow of 2 LPM per 100 cm at 1 bar working pressure
Oxygen transfer of 176 grams per hour per metre, with around 50% transfer efficiency on pure oxygen
12 mm inside diameter / 19 mm outside diameter, 210 grams per metre
Resistant to ozone, salt water and sewage — suits fresh, brackish, marine and wastewater duty
Not self-weighted, so add weight to hold it in position; maximum recommended length is 200 cm per diffuser
Sizing — multiply 2 LPM per metre by your diffuser length, or divide your total required gas flow by 2 LPM per metre to get the length needed, keeping each individual diffuser run to 200 cm or less.

Specifications

Specification	Detail
Material	EPDM rubber
Diameter	12 mm ID / 19 mm OD
Perforations	approx. 120,000 per metre
Bubble size	under 0.5 mm
Working pressure	1 bar
Recommended gas flow	2 LPM per 100 cm
Oxygen transfer rate	176 g/hour per metre
Transfer efficiency	approx. 50% per metre on pure oxygen
Weight	210 g per metre
Displacement	85 g per metre
Operating temperature	up to +130 °C
Max length per diffuser	200 cm
Weighting	Not self-weighted — additional weight required
Supply options	Per metre length (SKU Oxyprax 1m) or 50 m roll (SKU Oxyprax) — other lengths available on request

Downloads

How to Clean Oxyprax Diffusers

Frequently Asked Questions

How much Oxyprax do I need?

What bubble size does it produce?

What pressure does it need?

How do I clean it?

Does it need weighting?

Do I need to soak it before use?

How does it differ from Airprax and the Colorite Aero-Tube range?
