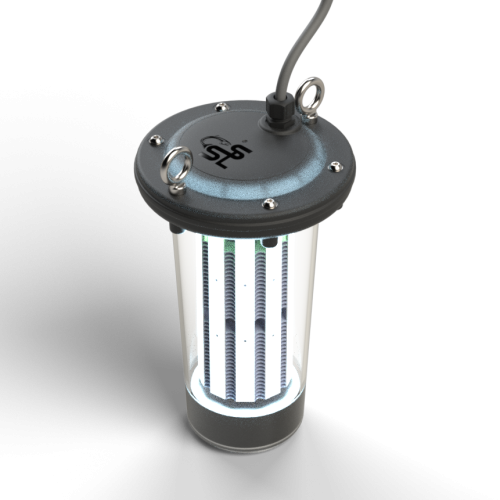

Southern Salmon Lights

Underwater LED lighting for sea cages and ponds, built for long-term immersion.

Categories:

Applications:

Product Information

Key Features

  • Underwater LED aquaculture light rated IP68, with a maximum operating depth of 8 m and 316 marine grade stainless fittings
  • 24,000 lumens at an efficiency of 120 lumens per watt, 5000 K white, CRI 80 and a 360 degree beam
  • Supplied at 850 nm and 520 nm bright white, and can be built to a specified wavelength on request
  • Wide 100 to 277 V input drawing 0.8 A, a low energy alternative to traditional 400 W underwater lamps
  • Slow start lamp to prolong lamp life and avoid shocking fish
  • Quick release mechanism for fast, low cost lamp replacement with minimal disruption to operations
  • Heavy duty cylinder body proven over four years of field use from -15 °C to +37 °C in salmon, prawn, mussel and kelp farms, lakes, hydro channels and seawater
  • Supply leads from 30 m to 50 m, with mounting set for your operating depth up to the 8 m IP68 limit
  • For above-water lighting over tanks, raceways and hatcheries, see the Southern Salmon Lights LED floodlights

Specifications

SpecificationSouthern Salmon Lights (as supplied)
Light output24,000 lm
Efficiency120 lumens per watt
PAR / PPFD at a stated distanceContact us
Colour temperature5000 K, bright white
Colour rendering indexCRI 80
Wavelength850 nm and 520 nm, can be customised to a required nm
Beam angle360 degree
Input voltage100 – 277 V
Running current0.8 A
Power drawNot separately stated by supplier. 24,000 lm at 120 lm/W implies approximately 200 W. Offered as a replacement for traditional 400 W underwater lamps
Ingress protectionIP68
Maximum operating depth8 m
Operating temperature range-15 °C to +37 °C, field tested over four years
Supply lead30 m to 50 m
Body and fittingsHeavy duty cylinder body, 316 marine grade stainless steel fittings
Lamp replacementQuick release mechanism
Start-upSlow start, to prolong lamp life and avoid fish shock
Mounting method and overall dimensionsRefer to the Salmon Light dimension drawing below. Contact us for details.
Typical applicationsSalmon, prawn, mussel and kelp farms; lakes, hydro channels and seawater systems
