Ajay Fibreglass Tapered Base Aquaculture Tanks

Q: Why choose a tapered base over a flat base tank?

The sloped floor carries solids down to the central drain for total drainage, where a flat floor lets them settle and needs solids handled elsewhere.

Q: Which taper angle should I ask for?

Taper is fixed per model and runs from 45° on the small steep hatchery cones down to 1° on the largest tanks — tell us your species and stocking and we will match it.

Q: What size is the drain outlet?

There is no fixed outlet size across the range — PVC fittings and outlet sizes are made to your specification.

Q: Is the litre figure total volume or working volume?

It is the supplier storage capacity; working volume is not published, so allow your own freeboard when sizing.

Q: What stand comes with the tank?

PVC or FRP pipe legs up to 3,000 L, an FRP box integral leg structure up to 23,000 L, or a sand or metal dust filled FRP skirt on 100,000 L and larger.

Q: How do the very large tanks get delivered?

Large tanks are shipped in halves and assembled on site.

Q: How do I get a price?

Call 02 4868 2500 or email sales@freshbydesign.com.au with the model, colour, stand and outlet you need and we will quote including delivery.

Tapered base fibreglass tanks with a central drain for full drainage and solids removal.

Categories: Aquaculture Tanks

Applications: Aquaponics, Hatchery, Live Holding & Purging, LSS, RAS

Brand: Ajay Fibreglass

Ajay Fibreglass Tapered Base Aquaculture Tanks

Ajay Fibreglass Tapered Base Aquaculture Tanks - Image 2

Ajay Fibreglass Tapered Base Aquaculture Tanks - Image 3

Ajay Fibreglass Tapered Base Aquaculture Tanks - Image 4

Product Information

Key Features

Tapered base fibreglass tanks designed to achieve total drainage — the sloped floor works solids and waste down to the central outlet instead of letting them settle
Taper is specified per model and ranges from a steep 45° cone on the small hatchery tanks to 1° on the largest tanks; the steeper the cone, the harder it clears solids and the taller the tank sits
Central drainage on every model, with outlet sizes and PVC fittings made to your specification
Smooth, food grade, gelcoated interior, hand laminated for extra quality control and strength, flowcoated exterior, coloured to your specification

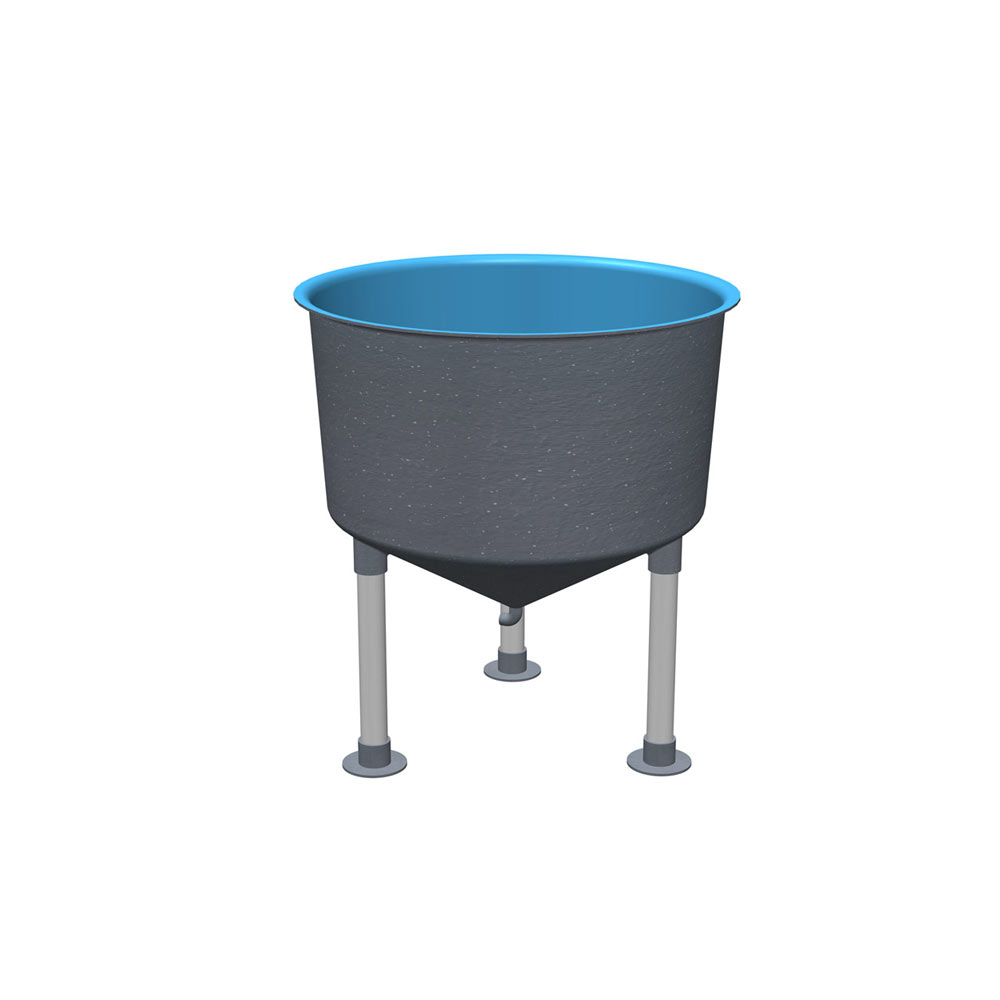

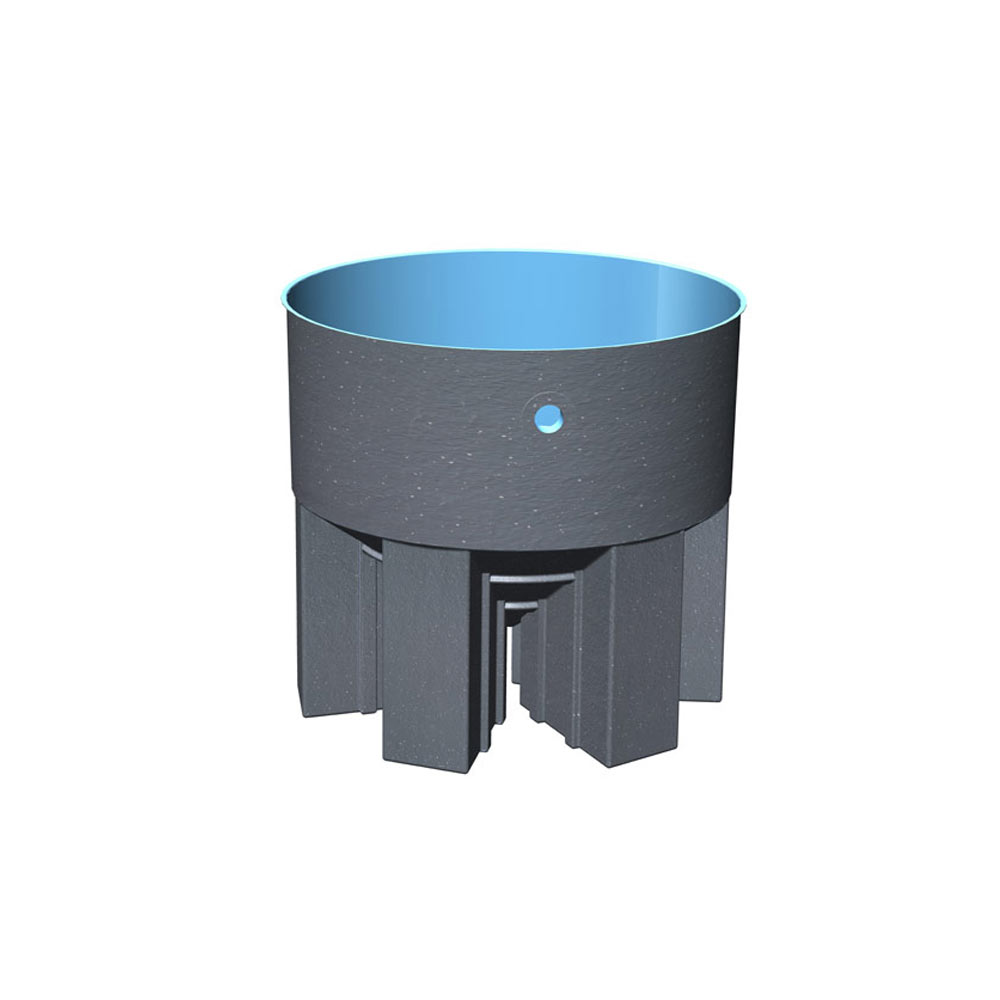

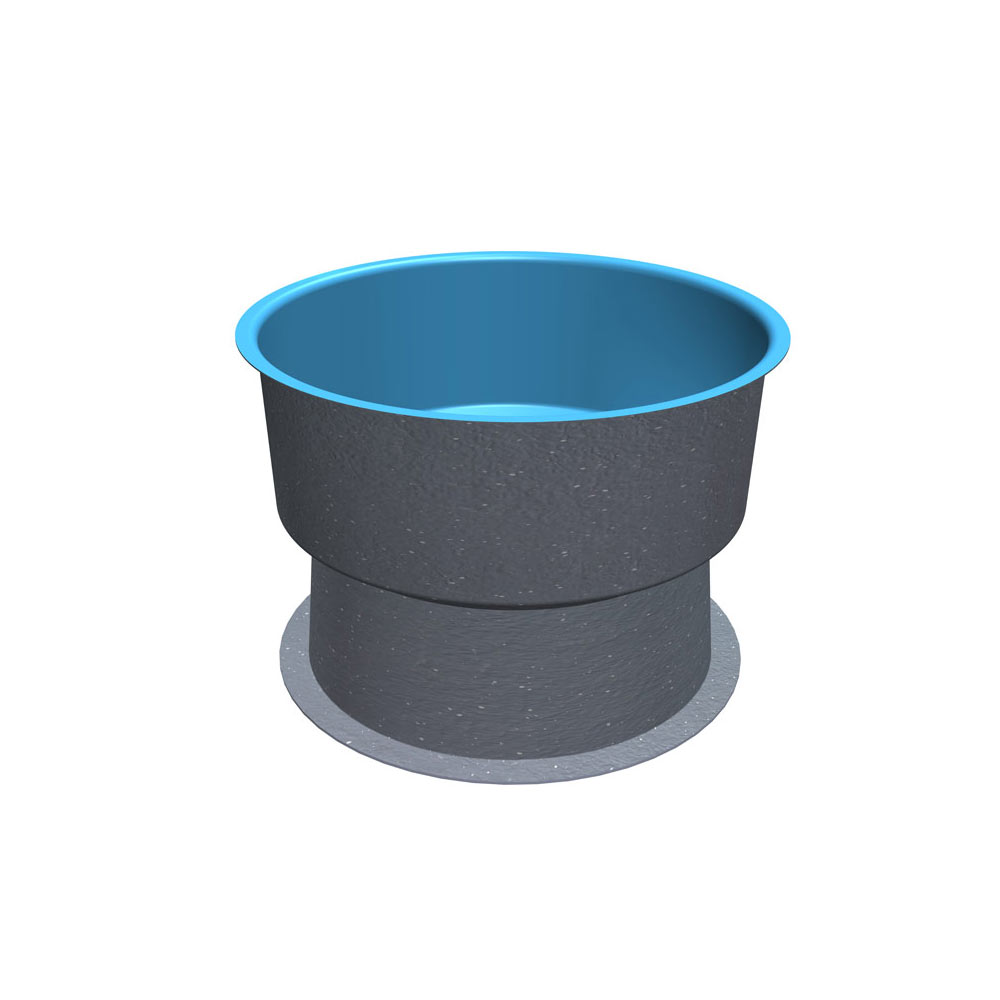

Three stand designs: PVC/FRP pipe support legs up to 3,000 L, FRP box design integral leg structure up to 23,000 L, and an FRP skirt filled with sand or metal dust mainly used on 100,000 L and larger
Optional aluminium or fibreglass tank bases, lids quoted on request, and large tanks shipped in halves and assembled on site
Choose tapered over the Ajay flat base range when solids have to clear themselves, and over the Ajay rectangular range when floor space is not the limiting factor
Twenty seven sizes — T75 to T260000, 75 L to 260,000 L nominal storage capacity, 0.590 m to 11.000 m diameter and 0.750 m to 2.750 m high on its base support. The supplier publishes storage capacity only, not working volume, so allow your own freeboard. Other sizes available on request

Specifications

Code	Storage capacity (L) — supplier figure; working volume not published	Diameter (m)	Height with base support (m)	Taper
T75	75	0.590	0.830	45°
T100	100	0.720	0.750	25°
T230	230	0.850	0.900	35°
T290	290	0.730	1.300	35°
T500	500	1.000	1.350	45°
T540	540	1.080	1.350	35°
T1000S	1,000	1.750	0.925	5°
T1100S	1,100	1.370	1.200	5°
T1100	1,100	1.500	1.350	45°
T1400	1,400	1.680	1.350	35°
T2000S	2,000	1.700	1.350	5°
T2000	2,000	1.720	1.500	30°
T2500S	2,500	2.520	1.000	5°
T2750	2,750	2.050	1.250	5°
T2900	2,900	2.000	1.350	5°
T3200	3,200	2.050	1.650	45°
T5000	5,000	2.400	1.500	5°
T7000S	7,000	3.050	1.300	5°
T7000H	7,000	2.750	2.650	45°
T10000	10,000	3.500	1.500	5°
T12600	12,600	4.000	1.500	5°
T19000	19,000	4.500	1.600	5°
T23000	23,000	4.900	1.600	2°
T32000	32,000	5.200	1.600	1.5°
T100000	100,000	8.300	2.220	1°
T210000	210,000	10.000	2.750	200 mm — published as printed, not an angle
T260000	260,000	11.000	2.750	200 mm — published as printed, not an angle

Frequently Asked Questions

Why choose a tapered base over a flat base tank?

Which taper angle should I ask for?

What size is the drain outlet?

Is the litre figure total volume or working volume?

What stand comes with the tank?

How do the very large tanks get delivered?

How do I get a price?
