Self-Cleaning Aquaculture Tanks

Q: What tank diameters and working volumes are available?

Tanks are supplied in a range of sizes, but diameters and working volumes are not published — send us your species, stocking density and batch size and we will confirm the tank.

Q: How does the self-cleaning actually work?

A squeegee sweeps the sidewall and floor and deposits debris into a trough running from the tank centre to the sidewall, where it is flushed out through the sediment purge valve.

Q: Why does the drain arrangement matter so much?

Self-cleaning only works if swept solids reach the sediment trap and purge valve, so the centre-to-wall trough and its outlet are the part of the tank that determines performance.

Q: How often should the purge valve be used?

Once or twice a day is the recommended flushing frequency.

Q: Can these tanks be run with green water or clay?

Yes — that is what they were designed for, where the bottom cannot be seen and siphoning both takes hours and removes viable larvae.

Q: What are the tanks made from?

Food-grade polyethylene, available in blue or green.

Q: Why are there two water inflows?

Bottom and surface inflows together give homogeneous circulation and better larval dispersion, and prevent temperature and oxygen stratification in the water column.

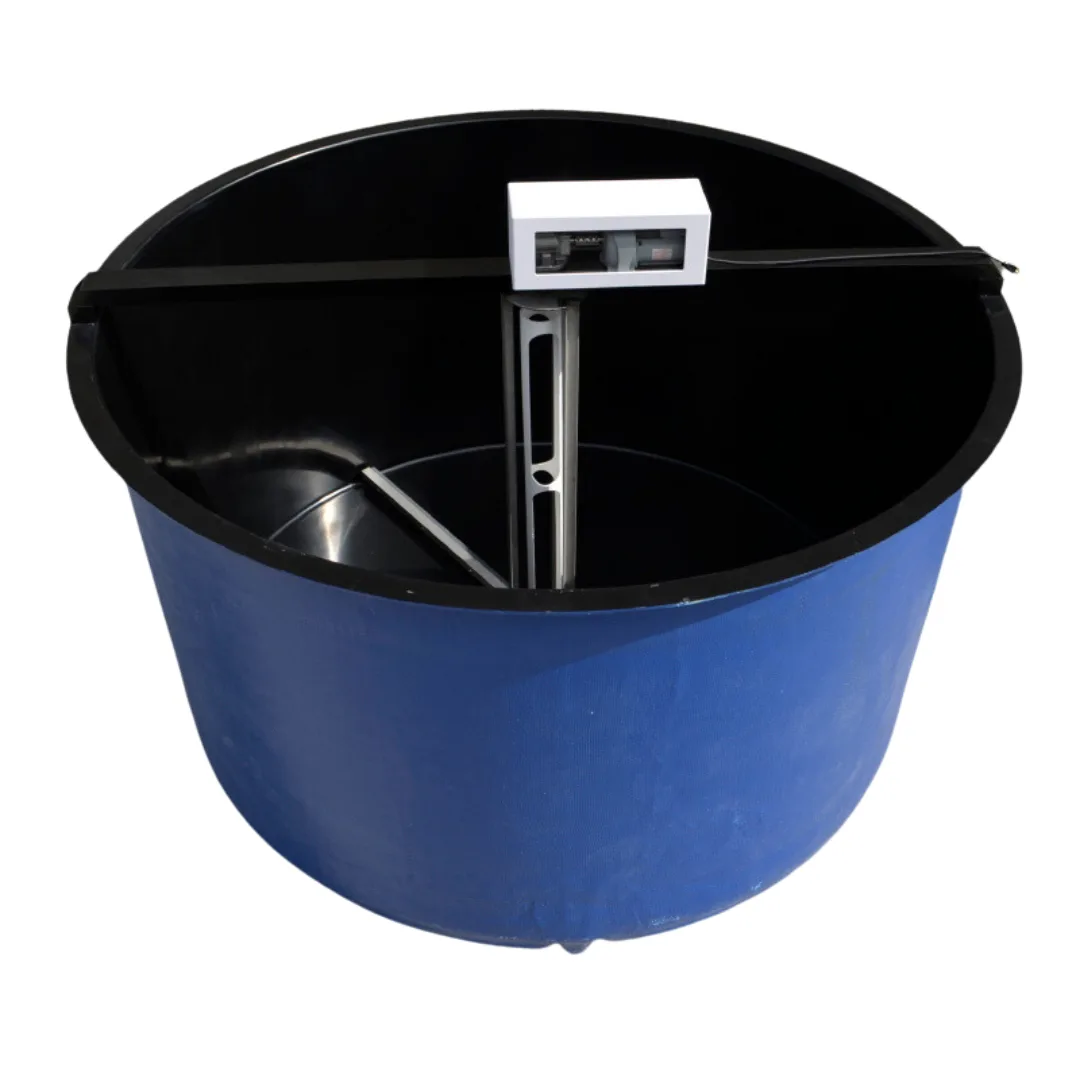

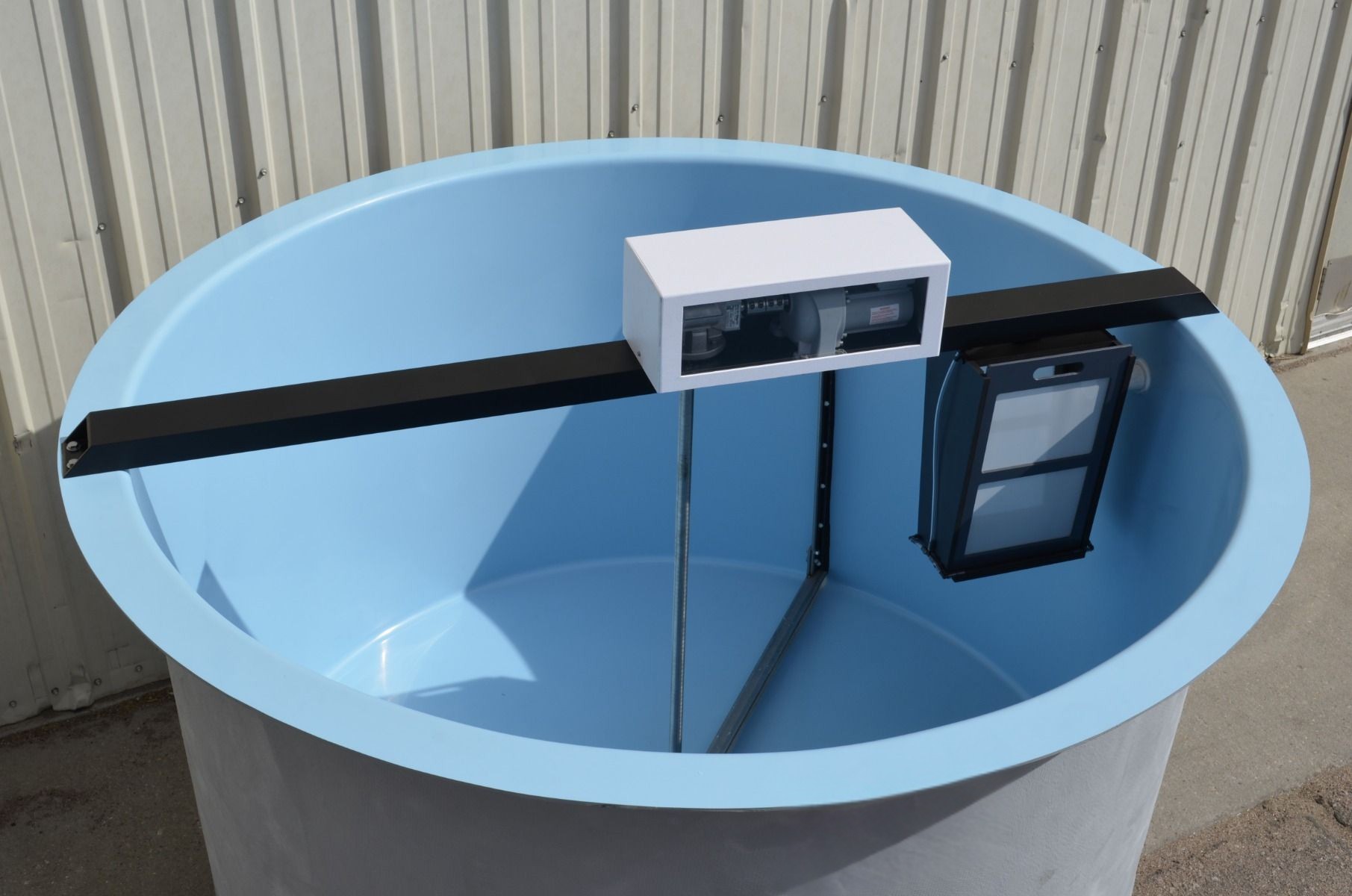

Larval culture tanks with a sweeping squeegee that keeps the walls and floor clean.

Categories: Aquaculture Systems, Aquaculture Tanks, Hatchery

Applications: Hatchery, RAS

Self-Cleaning Aquaculture Tanks - Image 2

Self-Cleaning Aquaculture Tanks - Image 3

Self-Cleaning Aquaculture Tanks - Image 4

Self-Cleaning Aquaculture Tanks - Image 5

Product Information

Key Features

Squeegee sweeps both the sidewall and the tank floor, so green-water and clay-dosed tanks are cleaned without siphoning
Swept debris is deposited into a trough running from the tank centre out to the sidewall, then flushed through the sediment purge valve
Sediment trap at the tank base, purged once or twice a day, keeps accumulated solids out of the culture volume
Dual inflow — bottom and surface — gives homogeneous circulation and avoids temperature and oxygen stratification
Surface spray above the waterline clears the lipid film so larvae can fill their gas bladders
Food-grade polyethylene construction, available in blue or green
Built for commercial high-density larval culture, from marine finfish through to shellfish larvae
Sizing: tank diameter and working volume are selected to suit the run, and self-cleaning performance depends on the centre-to-wall trough and purge valve arrangement — the current product copy does not publish diameters or volumes, so confirm both with Fresh By Design before specifying

Specifications

Parameter	Specification
Tank diameter	Not published — confirm with Fresh By Design
Working volume	Not published — multiple sizes available to suit the operation
Cleaning mechanism	Squeegee sweeping the sidewall and tank bottom
Solids collection	Trough extending from the tank centre to the sidewall
Drain arrangement	Sediment trap at the tank base with a purge valve for flushing solids
Purge frequency	Recommended once or twice daily
Water inflow	Dual — bottom inflow plus surface inflow
Surface spray	Fitted above the waterline to clear lipid film and assist gas bladder inflation
Flow rate	Adjustable; no rated range published
Material	Food-grade polyethylene
Colour options	Blue or green
