TinyDrum – Drum Filter

Size it on your circulating flow — models run from 1,500 LPH on the M1 up to 30,000 LPH on the XL5.

The manufacturer does not publish a micron rating for each model — tell us your target solids capture and we will confirm the screen with the quote.

Yes — the TinyDrum is non-metallic throughout, so it suits fresh water and seawater.

Yes — an automatic backwash system clears the screen, so there is no daily handling.

75 mm on the M-series, 110 mm or 125 mm on the L-series and 160 mm on the XL-series, with a 40 mm waste outlet on every model.

The M-series is 318 mm wide and up to 890 mm long; the XL-series is 570 mm wide and up to 1,020 mm long.

Request a quote with your circulating flow, water type and target solids capture.

A compact self-cleaning drum filter for aquaponics, small aquaculture systems and ponds.

Categories: Drum Filters & Spares

Applications: Aquaponics, Pond, RAS

Brand: Kunststoff-Spranger GmbH

Product Information

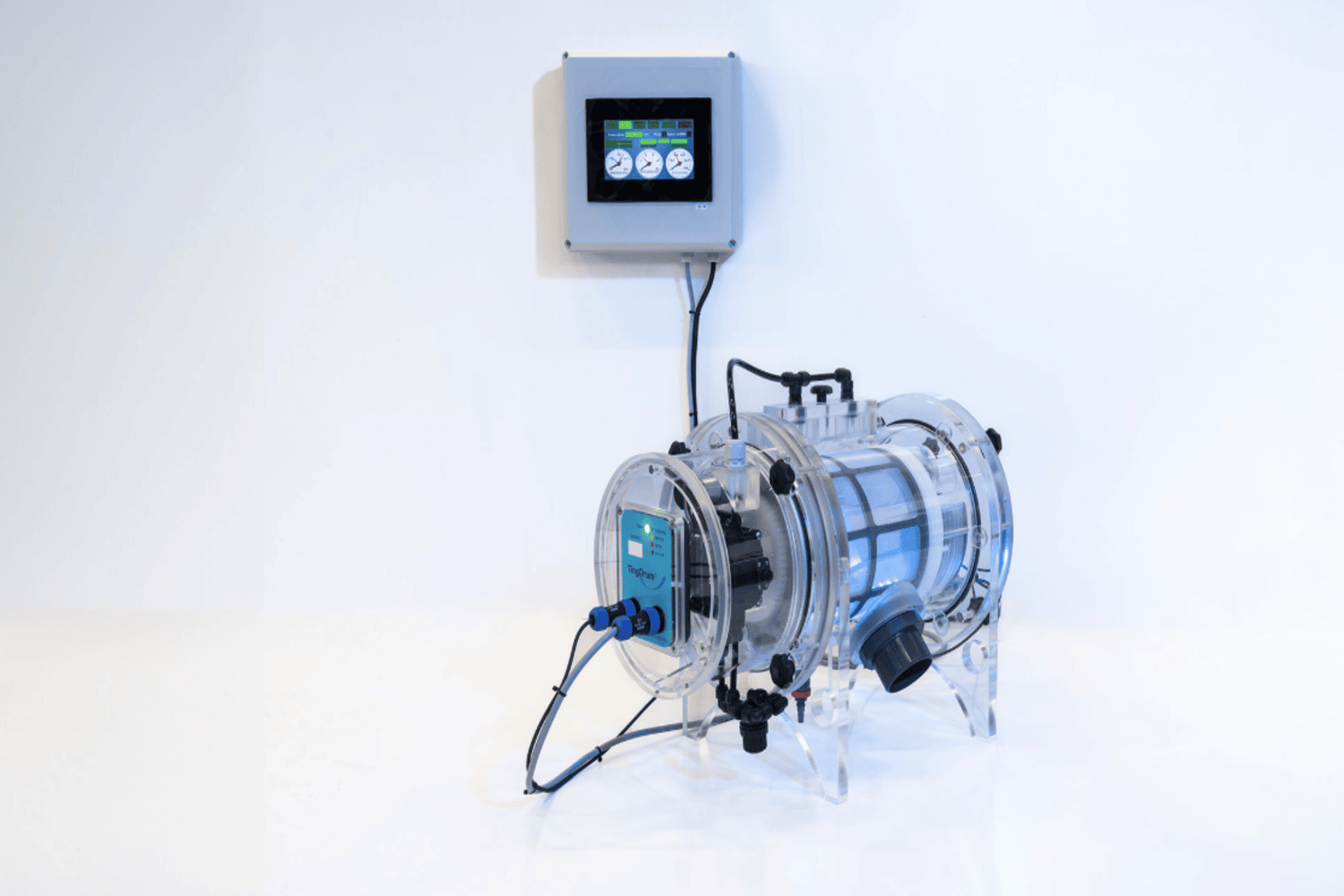

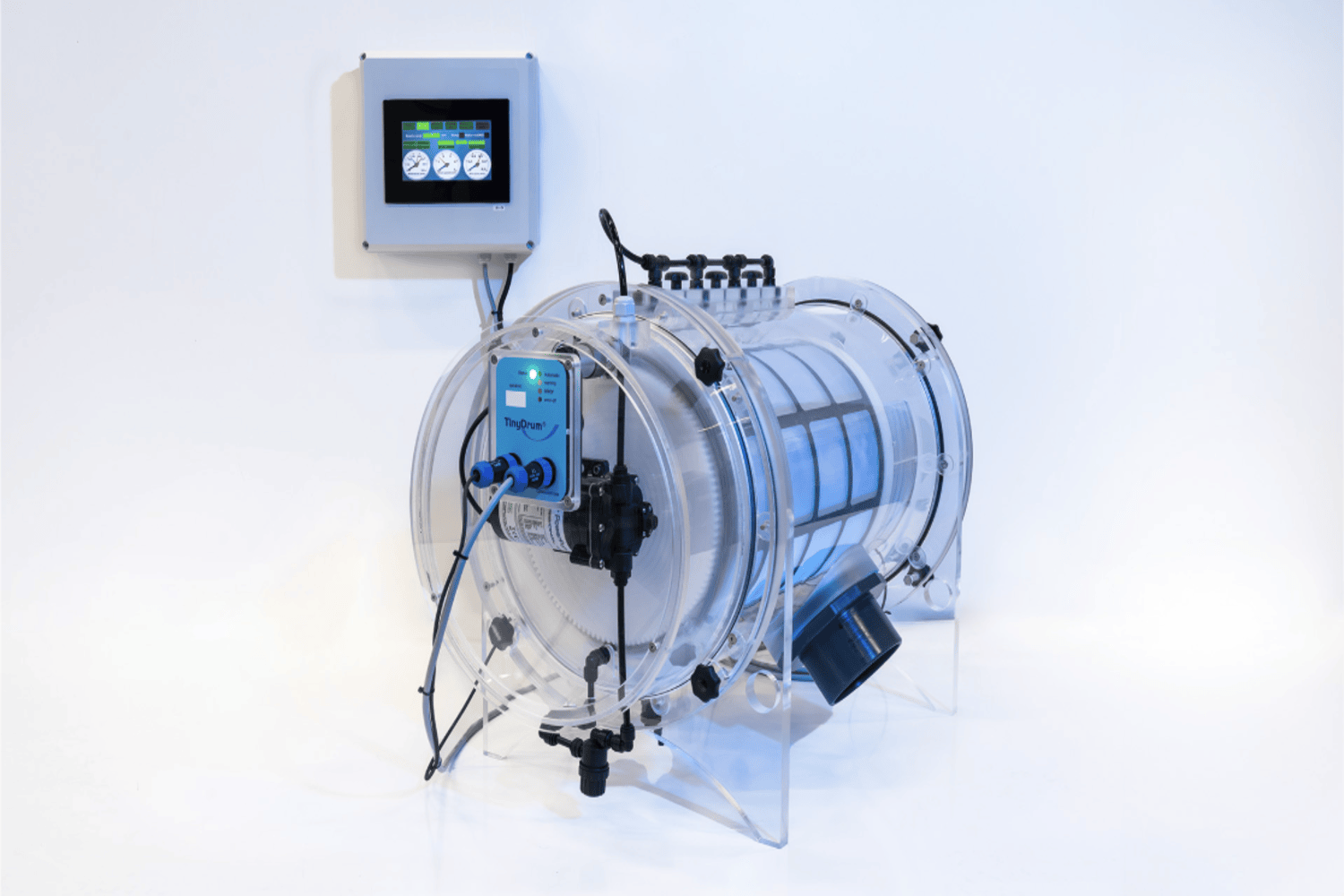

Compact self-cleaning drum filter for aquaponics, small aquaculture, ornamental and koi ponds
Nine models from 1,500 LPH (M1) up to 30,000 LPH (XL5)
Non-metallic construction throughout, so it suits both fresh water and seawater
Automatic backwash keeps the screen clear without daily handling
Small footprint — the M-series is only 318 mm wide
75 mm, 110 mm, 125 mm or 160 mm inlet and outlet depending on model, with a 40 mm waste outlet on every model
Made in Germany by Kunststoff-Spranger
Sizing: choose the model whose rated flow matches your circulating flow. The manufacturer does not publish the screen micron each rating applies to, so send us your flow and your target solids capture and we will confirm the model and screen with the quote.

Model	Rated flow (screen micron not stated by supplier)	L × W × H (mm)	Inlet / outlet
M1	1,500 LPH	525 × 318 × 470	75 mm
M2	3,000 LPH	645 × 318 × 470	75 mm
M3	4,500 LPH	765 × 318 × 470	75 mm
M4	6,000 LPH	890 × 318 × 470	75 mm
L3	8,000 LPH	780 × 468 × 610	110 mm
L4	10,500 LPH	900 × 468 × 610	110 / 125 mm
L5	13,000 LPH	1,020 × 468 × 610	110 / 125 mm
XL4	22,000 LPH	900 × 570 × 705	160 mm
XL5	30,000 LPH	1,020 × 570 × 705	160 mm
Screen micron rating	Not published by supplier — confirmed on quotation	—	—
Waste outlet	40 mm on every model	—	—
Construction	Non-metallic throughout — fresh water and seawater	—	—

How do I choose a TinyDrum model?

What screen micron does it use?

Can it be used in seawater?

Does it clean itself?

What pipe sizes does it connect to?

How much space does it need?

How do I get a price?
