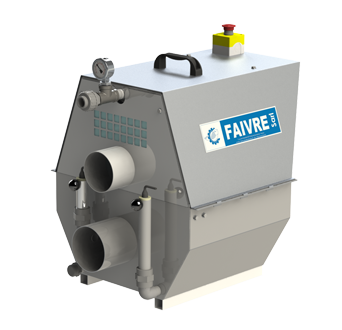

Faivre Drum Filters

A level sensor detects head loss across the screen and triggers a short backwash spray cycle automatically — no daily handling and no consumables.

AISI 304L for fresh water, AISI 316L for cold seawater, or duplex SS 2205 for warm seawater and aggressive conditions.

Standard stainless screens are 15, 26, 36, 63 and 80 microns, with nylon screens available up to 500 µm.

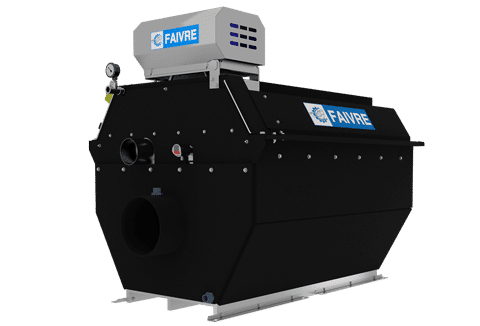

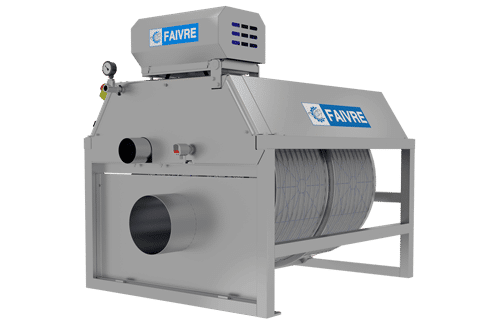

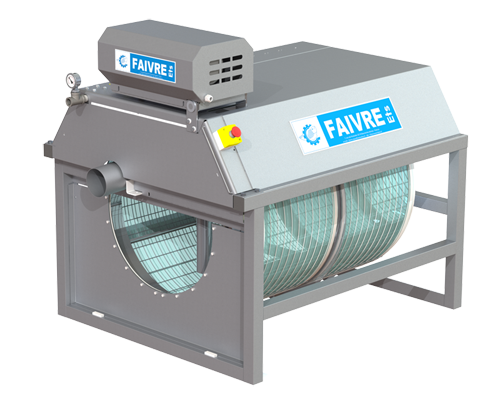

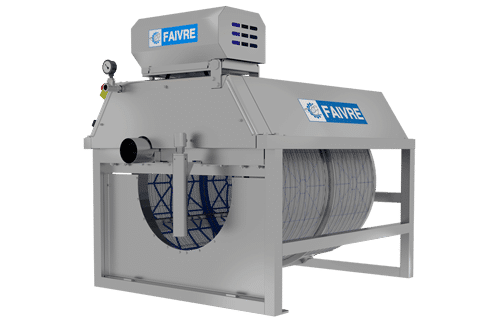

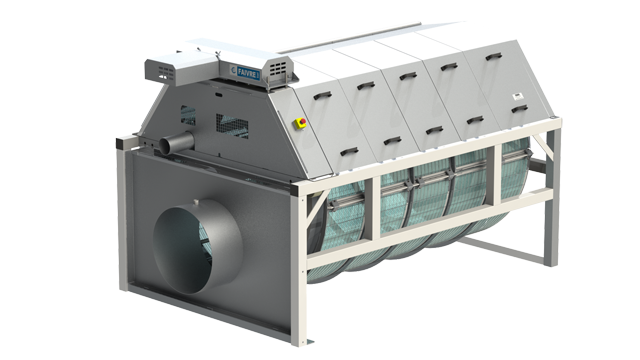

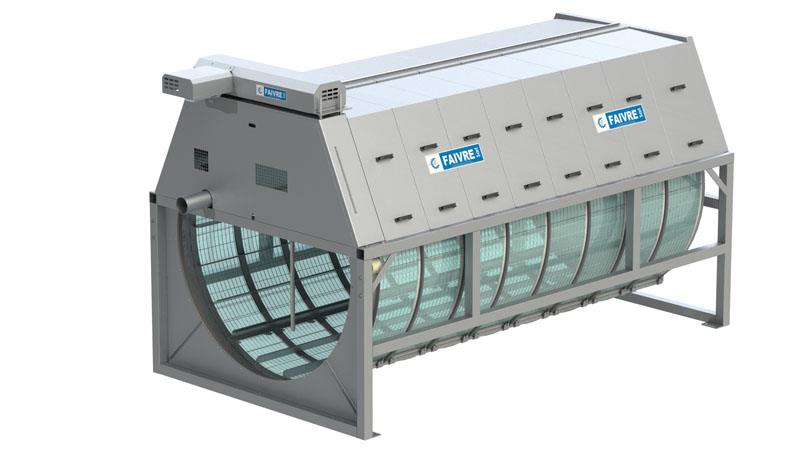

Yes — frame-only and frame-with-pipe-inlet configurations drop into existing concrete or HDPE tanks, and the 200 Series is designed for a 1.2–1.45 m deep concrete channel.

A reinforced screen option for the 80–200 Series with a second 300-micron nylon mesh layer and updated seals — screen plus new tensioner costs less than a single standard plate.

Yes — Fresh By Design keeps replacement plates, screens, solenoids, spray bars and gear motors on the shelf, and screens are interchangeable across the range.

Request a quote with your design flow, water source (fresh, brackish or sea) and target mesh — we’ll come back with the right Series, configuration and lead time.
