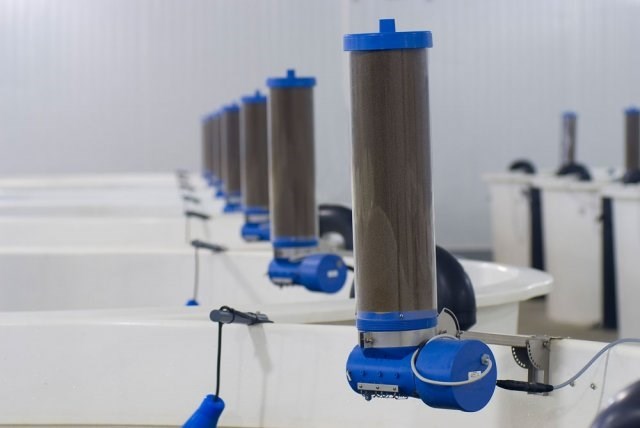

Arvo-Tec TD2000 Fish Feeder

An automatic feeder that doses pellet feed into tanks and raceways as part of an automated feeding system.

Categories:

Applications: , ,

Brand:

Product Information

Key Features

  • The feeder unit of the Arvo-Tec feeder system — this is the module that meters and delivers feed; the Arvo-Tec Wolf Controller is what schedules and drives it
  • Interchangeable dosing drums from 0.3 g to 100 g per dose, covering maximum feed sizes from 1 mm right up to 9 mm
  • Dosing accuracy up to 99%, so feed is not lost to overfeeding and nutrient loading stays predictable in RAS
  • Change pellet size by changing the drum — one feeder follows a cohort from juvenile through to grow-out
  • Feeder motor runs on 24 VAC at 11.3 W, 2 RPM
  • Choice of distribution: light duty electric spreader to 5 mm feed, heavy duty electric to 8 mm, or a pneumatic spreader on a 2–4 bar air supply
  • Engineered in Finland, and suited to the FBD poly moulded feed hoppers, which are supplied separately
  • Sizing: start from daily feed demand, pellet size and tank count — pick the drum whose maximum feed size covers your pellet, check its dose per turn against daily demand, then allow one feeder per feed point plus a spreader where feed must be broadcast

Specifications

ComponentSKUSpecification
TD2000 feeder unitAT101024 VAC, 11.3 W, 2 RPM
Dosing drum — 0.3 gAT1060Maximum feed size 1 mm
Dosing drum — 1 gAT1061Maximum feed size 2 mm
Dosing drum — 5 gAT1062Maximum feed size 4 mm
Dosing drum — 20 gAT1063Maximum feed size 6 mm
Dosing drum — 45 gAT1064Maximum feed size 8 mm
Dosing drum — 100 gAT1065Maximum feed size 9 mm
Light duty (LD) electric spreaderAT1086Feed up to 5 mm
Heavy duty (HD) electric spreaderAT1084Feed up to 8 mm
Pneumatic spreaderAT1079Requires 2–4 bar air supply
Pellet size range (drum dependent)—1 mm to 9 mm
Dosing accuracy—Up to 99%
Control—Arvo-Tec Wolf Controller and Arvo-Tec control systems
Feed storage—FBD poly moulded feed hoppers, supplied separately
