Q: How do I work out which model and how many units I need?

Size on pond surface area and oxygen demand – match impeller count and motor kW to each pond’s surface area, depth and stocking density, and send Fresh By Design your pond dimensions and stocking plan for a unit count.

Q: What is the difference between the TA-55H and the TA-55M?

Both run a 1 HP (0.75 kW) motor, but the TA-55H carries two impellers and the TA-55M carries four, so the TA-55M works a larger patch of water for the same motor size.

Q: Which models are available in single phase?

The TA-55H, TA-55M and TA-66H are available in both single phase and three phase; the TA-747H is supplied three phase only.

Q: Do the paddlewheels arrive wired and ready to run?

No – all paddlewheels are supplied unwired and no electrical cables are included, so allow for wiring and a starter in your installation.

Q: Why does the adjustable parabolic impeller matter?

It can be set to change the splash pattern, throwing finer droplets over a wider, higher arc, which increases the air-water surface area and the oxygen transferred per kilowatt.

Q: What warranty applies?

Team Aqua paddlewheels are covered by a 12-month warranty.

Q: Are spare parts held in Australia?

Yes – impellers, motors, gearboxes, plastic bearings and movable joints for the TA-55 and TA-66 range are stocked by Fresh By Design.

Floating paddlewheel aerators for lifting dissolved oxygen in ponds, using a high-splash impeller that breaks water into fine droplets.

Price range: $1,200.00 through $2,700.00 ex GST

Option

Clear

Categories: Aeration, Paddlewheels / Aerators

Applications: Aquaponics, Hatchery, Pond, Water & Wastewater Treatment

Brand: Team Aqua

Product Information

Key Features

Four models — TA-55H, TA-55M, TA-66H and TA-747H — from 1 HP (0.75 kW) with two impellers up to 2 HP (1.5 kW) with eight impellers
Single-phase and three-phase versions of the TA-55H, TA-55M and TA-66H; the TA-747H is three-phase only
Patented adjustable parabolic impeller throws a wider, higher splash and finer droplets, lifting oxygen transfer for the same power
Over 50% more water displacement at the same power draw than a conventional paddle wheel, or the same oxygen output for less power
Synthetic aluminium magnesium motor housing sheds heat around 30% faster than cast iron, extending motor life
HDPE floats and motor cover, and a worm-and-wheel gearbox with three teeth engaged instead of the usual two
Supplied unwired with no electrical cables, and backed by a 12-month warranty
Size on pond surface area and oxygen demand: match impeller count and motor kW to the surface area, depth and stocking density of each pond — send Fresh By Design your pond dimensions and stocking plan and we will work out the model and the number of units

Specifications

Model	SKU	Motor	Impellers	Supply	Shipping size (L×W×H)	Shipping weight

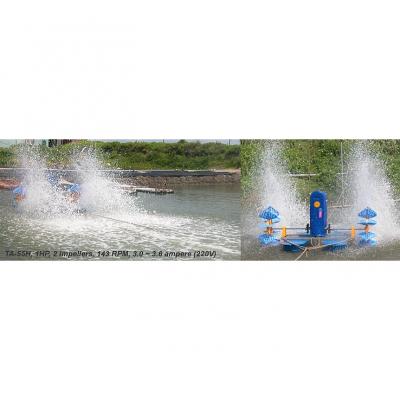

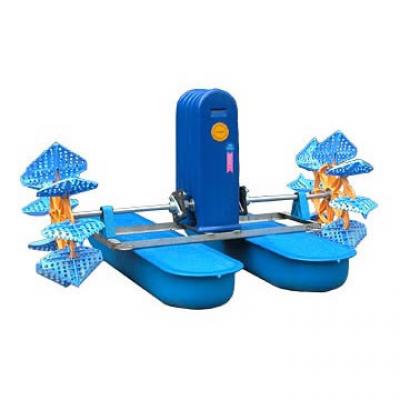

TA-55H	TA-55H	1 HP (0.75 kW)	2	3 phase	168 × 110 × 83 cm	60 kg
TA-55H	TA-55H-1	1 HP (0.75 kW)	2	1 phase	168 × 110 × 83 cm	60 kg
TA-55M	TA-55M	1 HP (0.75 kW)	4	3 phase	168 × 110 × 83 cm	60 kg
TA-55M	TA-55M-1	1 HP (0.75 kW)	4	1 phase	168 × 110 × 83 cm	60 kg
TA-66H	TA-66H	2 HP (1.5 kW)	4	3 phase	168 × 110 × 83 cm	60 kg
TA-66H	TA-66H-1	2 HP (1.5 kW)	4	1 phase	168 × 110 × 83 cm	60 kg

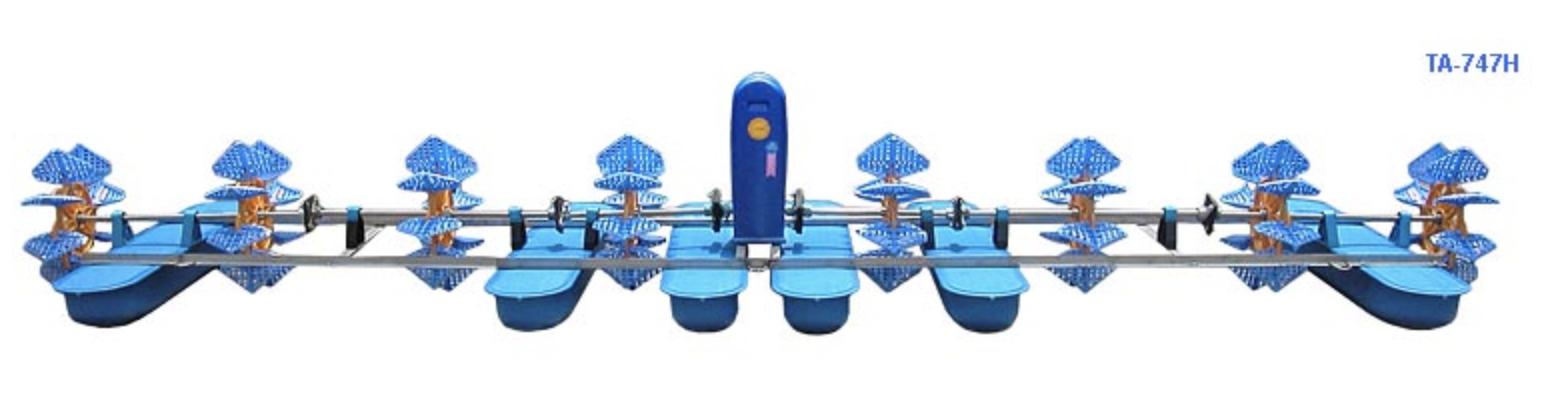

TA-747H	TA-747H	2 HP (1.5 kW)	8	3 phase	220 × 122 × 91 cm	180 kg
All models	—	Supplied unwired, no cables	Adjustable parabolic	—	HDPE floats and cover	12-month warranty

Downloads

Team Aqua Paddlewheel Brochure

Frequently Asked Questions

How do I work out which model and how many units I need?

What is the difference between the TA-55H and the TA-55M?

Which models are available in single phase?

Do the paddlewheels arrive wired and ready to run?

Why does the adjustable parabolic impeller matter?

What warranty applies?

Are spare parts held in Australia?

Spare Parts & Consumables

Spare Parts for Team Aqua Paddle Wheel Aerators
Price range: $30.00 through $500.00 ex GST Select options This product has multiple variants. The options may be chosen on the product page
