MAT Drum Filters

Give us your design flow and the screen micron you want to run — the two together set the drum diameter and screen area you need.

From 1 m³/h up to 4,000 m³/h, across seven drum diameters from 0.5 m to 2.2 m and 0.7 m² to 21 m² of screen area.

10 µm to 200 µm covers normal aquaculture duty, with much coarser screens available across the wider MAT range.

Yes — AISI 316 stainless and Super Duplex options are built for seawater and other aggressive water.

The wash only runs when head loss triggers it, so it depends on your solids loading — we can give a figure once we know your duty.

Yes — the automatic backwash system clears the screen without daily handling.

Request a quote with your design flow, the target screen micron and your water type (fresh, brackish or sea).

Self-cleaning drum filters for removing fine solids in RAS, hatcheries, aquarium life support and land-based farms.

Categories: Drum Filters & Spares, MAT Filtration Technologies

Applications: Aquaponics, Hatchery, LSS, RAS

Brand: MAT

Product Information

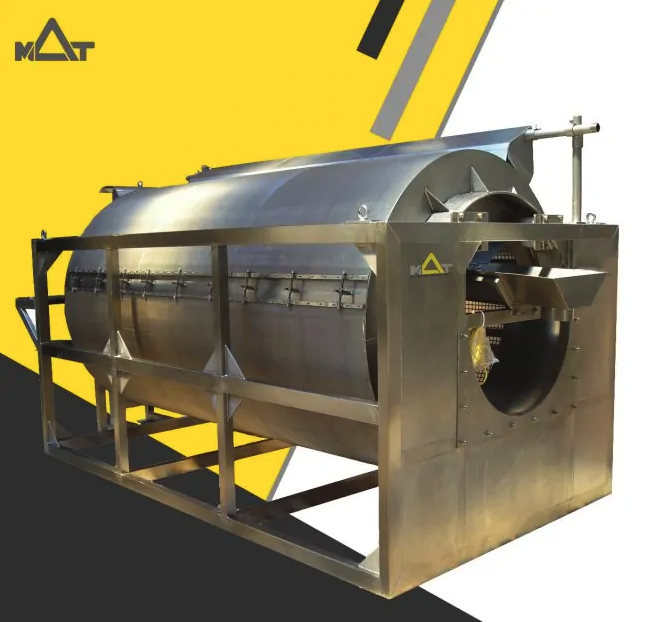

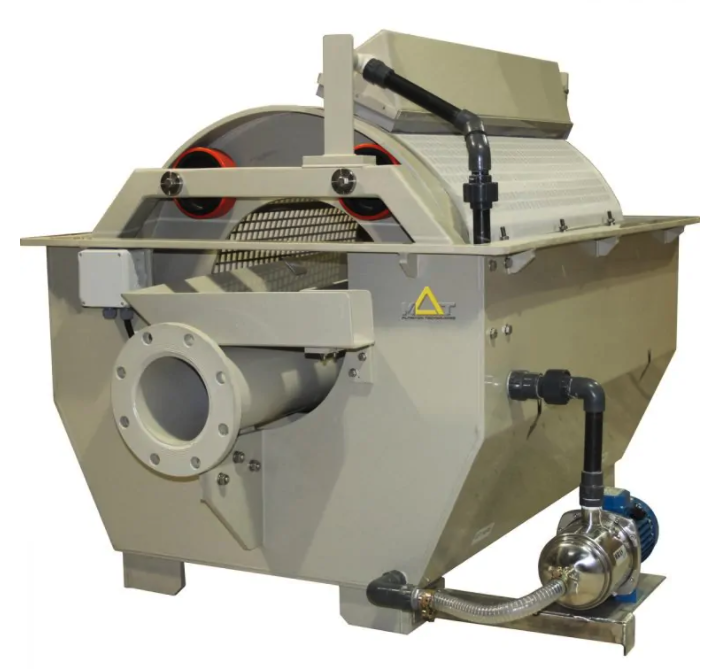

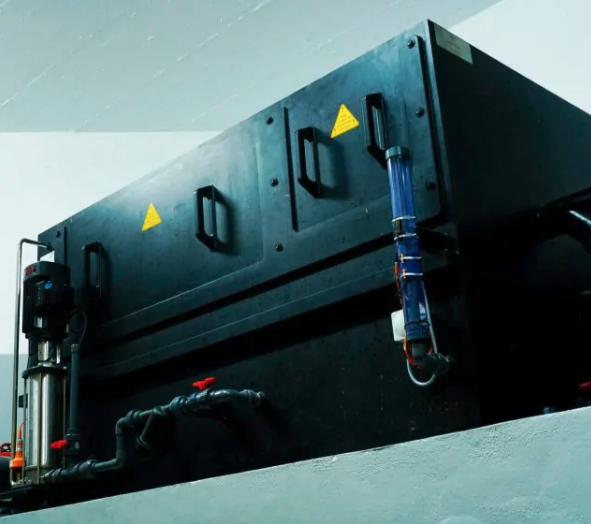

Self-cleaning microscreen drum filters for RAS, hatcheries and land-based farms
Seven drum diameters from 0.5 m to 2.2 m, giving 0.7 m² to 21 m² of filtration area
Covers flows from 1 m³/h up to 4,000 m³/h (1,000 to 4,000,000 LPH)
Screen ratings from 10 µm upwards — 10 to 200 µm covers most aquaculture duty
Polypropylene, AISI 304, AISI 316 and Super Duplex construction, so the same range covers fresh water through to seawater
Automatic backwash with smart wash logic control and a low-energy drive motor
Supplied in a range of configurations to suit different system sizes and tank types
Sizing: size on your design flow at the screen micron you intend to run — a 40 µm screen passes far less water than a 200 µm screen on the same drum, so give us both figures plus your water type and we will confirm the drum diameter and screen area.

Specification	Detail
Drum diameters available	7 sizes, 0.5 m to 2.2 m
Filtration area	0.7 m² to 21 m²
Flow range	1 m³/h to 4,000 m³/h (1,000 to 4,000,000 LPH)
Flow at a stated screen micron	Not published by supplier — per-model flow at a given micron is confirmed on quotation
Screen ratings	10 µm to 200 µm for aquaculture duty; the supplier brochure states 10 µm to 10,000 µm across the full range
Screen and body materials	Polypropylene (PP), AISI 304 stainless, AISI 316 stainless, Super Duplex
Backwash	Automatic, triggered on head loss, with smart wash logic control
Drive	Low energy consumption motor
Water types	Fresh water and seawater (material selection dependent)
Model codes	Not published by supplier — the model is selected on flow, screen micron and water type
Typical use	Land-based aquaculture, RAS, hatcheries, aquarium life support, aquaponics

How do I size a MAT drum filter?

What flows does the range cover?

What screen sizes are available?

Will it work in seawater?

How much water does the backwash use?

Is it fully self-cleaning?

How do I get a price?
