Aqua Life BioTrac Belt Grader

Q: What size fish can the BioTrac grade?

5 g to 600 g, with the trac gap adjustable from 5.3 mm to 44 mm (0.20″ to 1.75″).

Q: Which model do I need?

Size on throughput at your actual fish weight — the BG60-2 does 0.76 t/hr of 25 g fish or 5.66 t/hr of 500 g fish, the BG60-3 about 1.5× that, and the BG60-4 about 2×.

Q: How much floor space does it need?

All three models are 3.25 m long and 1.30 m high; width is 1.08 m for the BG60-2, 1.58 m for the BG60-3 and 2.06 m for the BG60-4.

Q: What is it made from?

316 stainless steel throughout, built using laser welding, CNC machining and robotic manufacturing.

Q: What are the power and water requirements?

Magnetic hub motor drives rated 0.75 kW each, belt speed variable from 0.3 to 1.2 m/s, and a water supply of 95 to 190 LPM (25 to 50 GPM).

Q: Can it work with our counting and biomass systems?

Yes — the digital control system and integrated sensors are designed to work alongside counting and density monitoring equipment.

Q: How do I get a price?

Request a quote with your fish size range, the tonnage you need to grade per hour and your shed layout — we’ll come back with the right model, configuration and lead time.

A high-capacity belt grader for sorting fish by size with gentle handling.

Categories: Fish Graders

Applications: Hatchery, RAS

Brand: Aqua Life

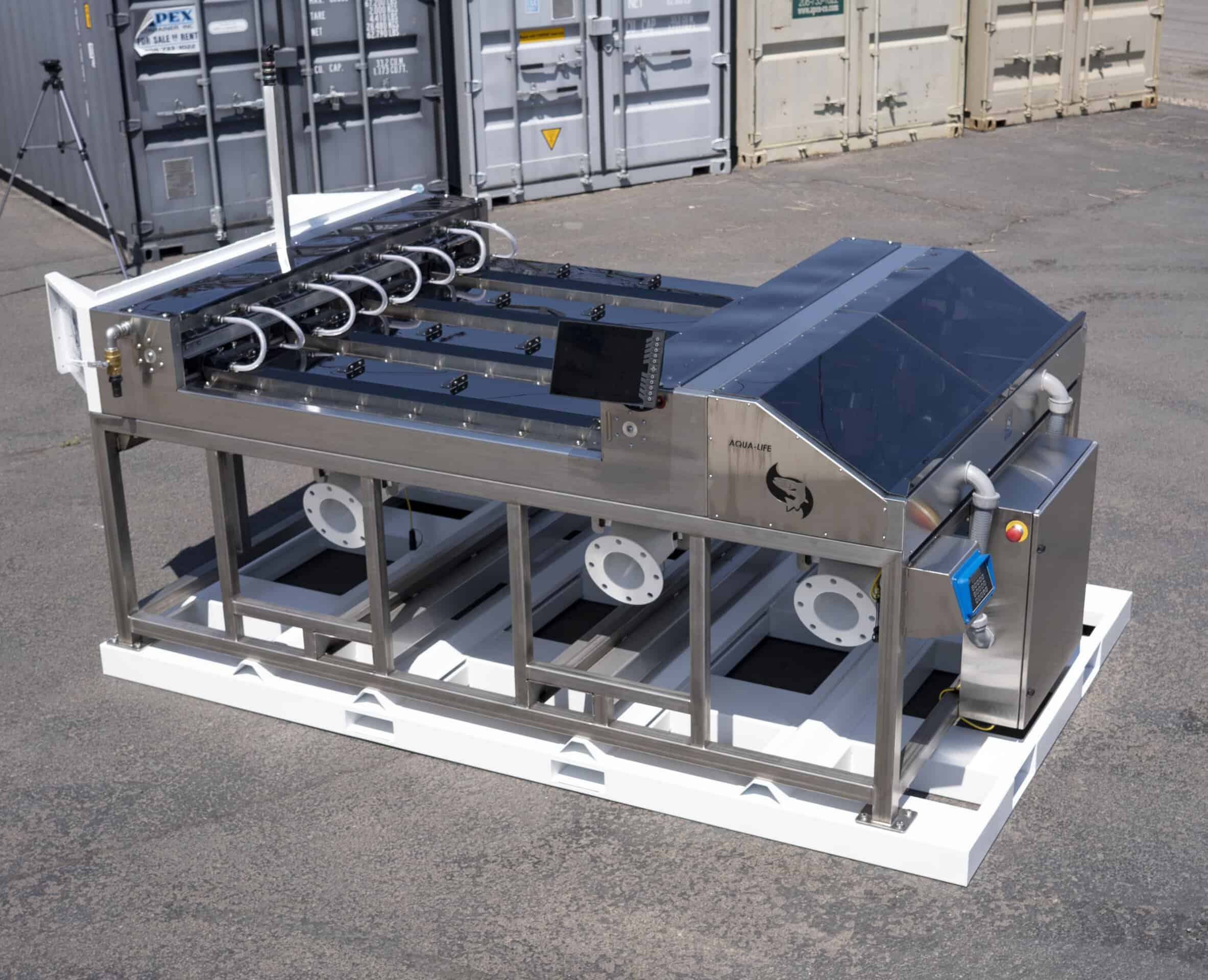

Aqua Life BioTrac Belt Grader - Image 10

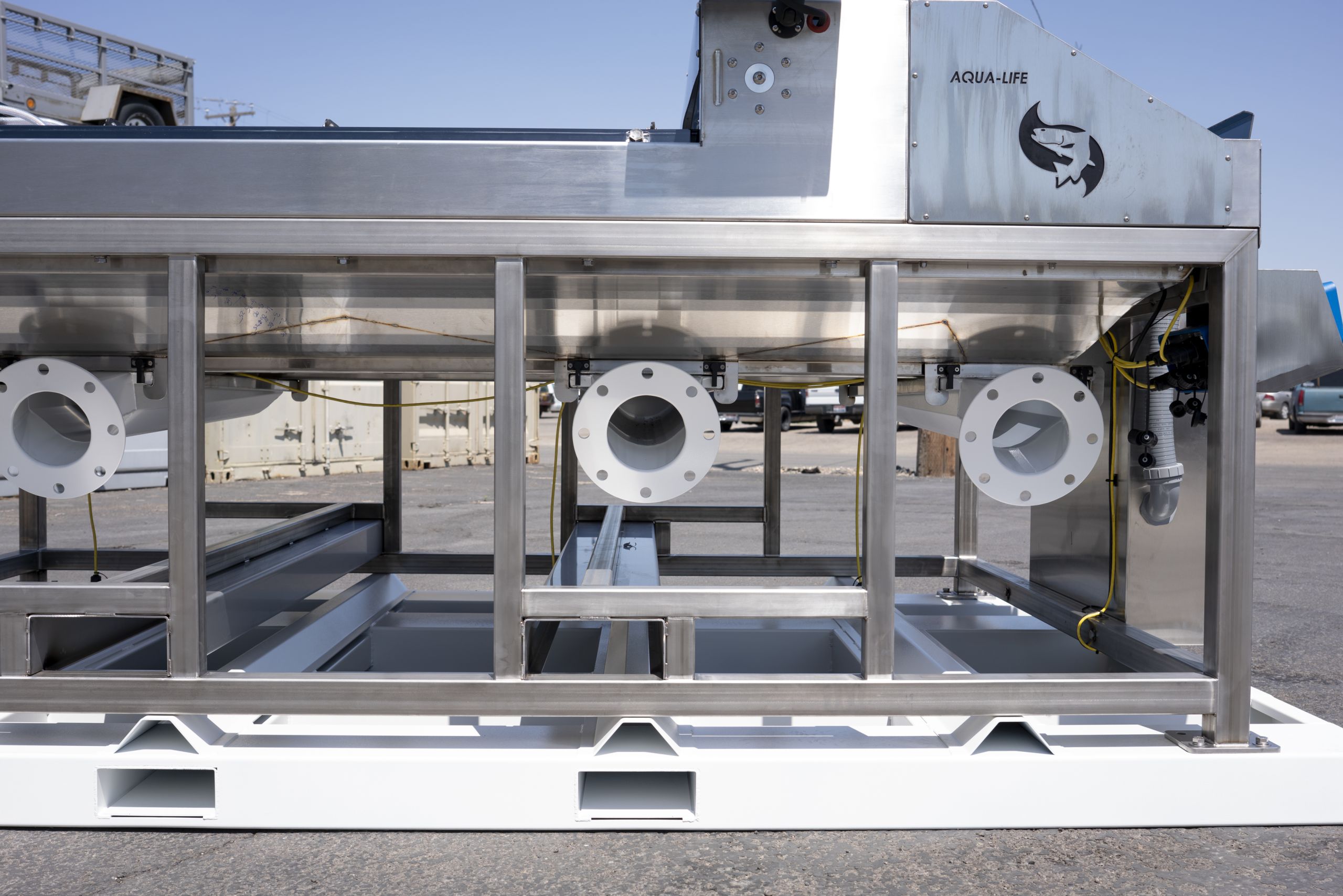

Aqua Life BioTrac Belt Grader - Image 11

Product Information

Key Features

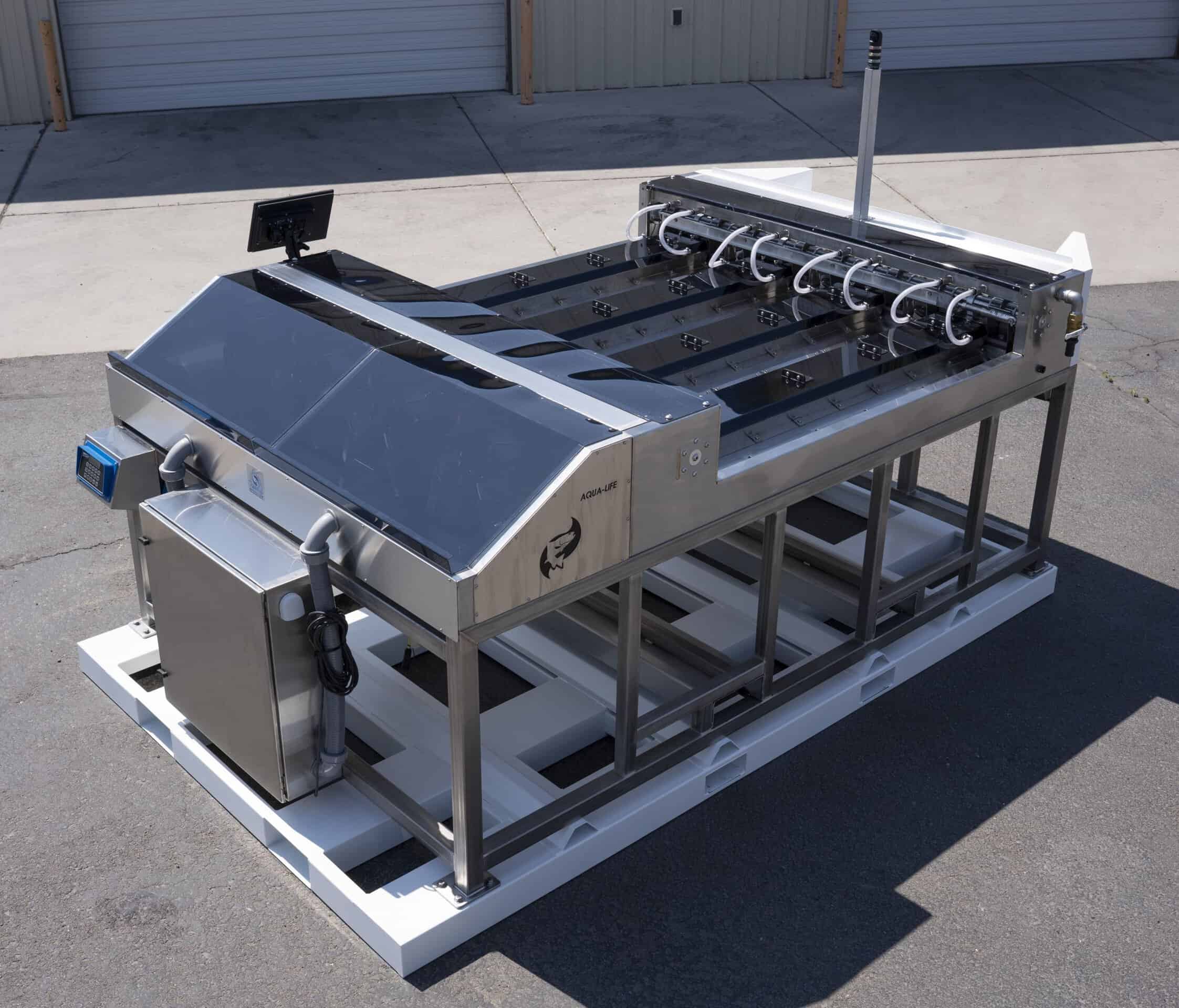

Three sizes — BG60-2, BG60-3 and BG60-4 — with 2, 3 or 4 grading tracs, covering 0.76 up to 1.5 tonnes/hr on 25 g fish and 5.66 up to 11.32 tonnes/hr on 500 g fish
Gap range 5.3 to 44 mm (0.20″ to 1.75″), grading fish from 5 g through to 600 g on the one machine

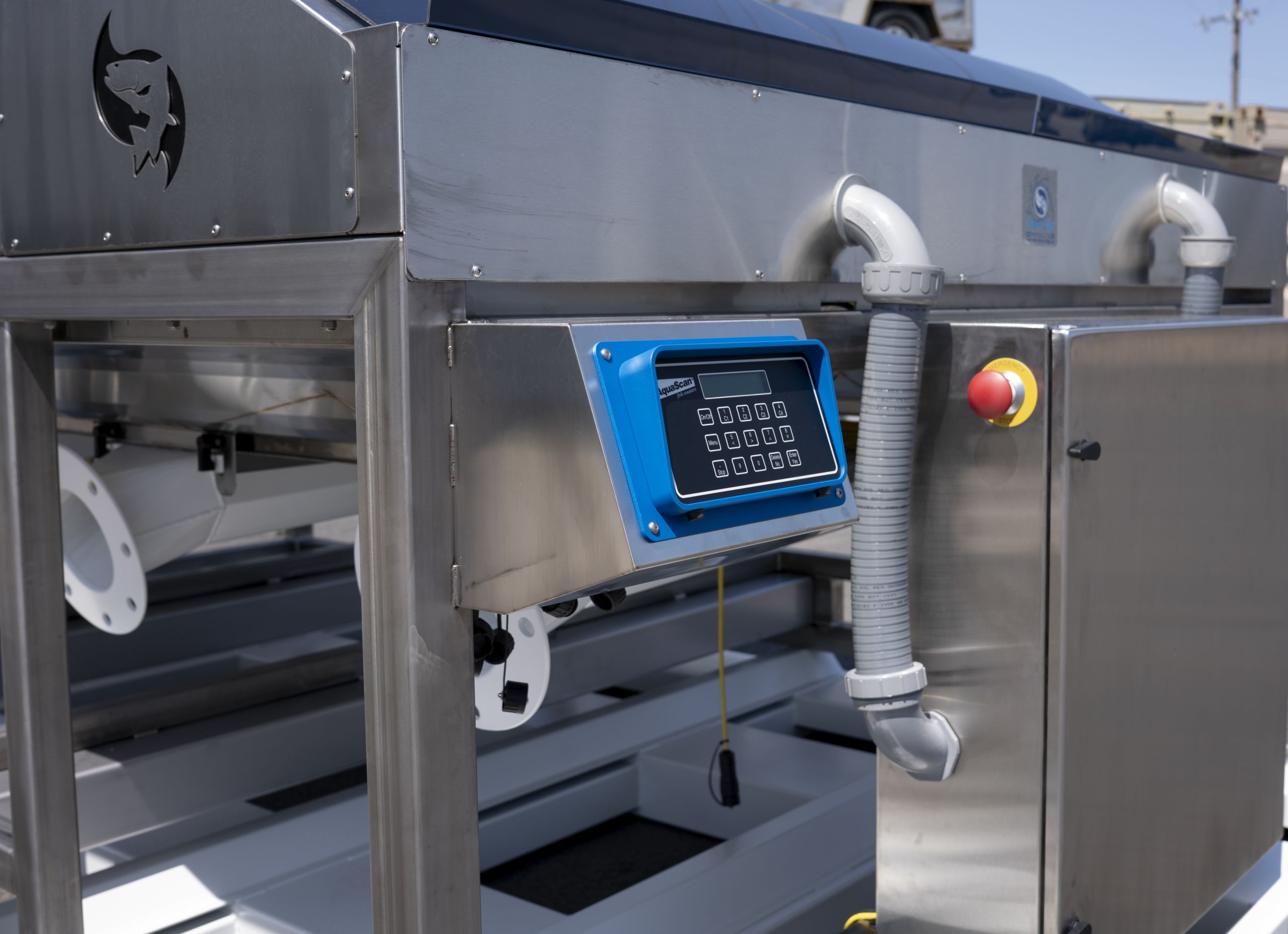

Intuitive digital control system with integrated sensors, and compatibility with counting and density monitoring systems

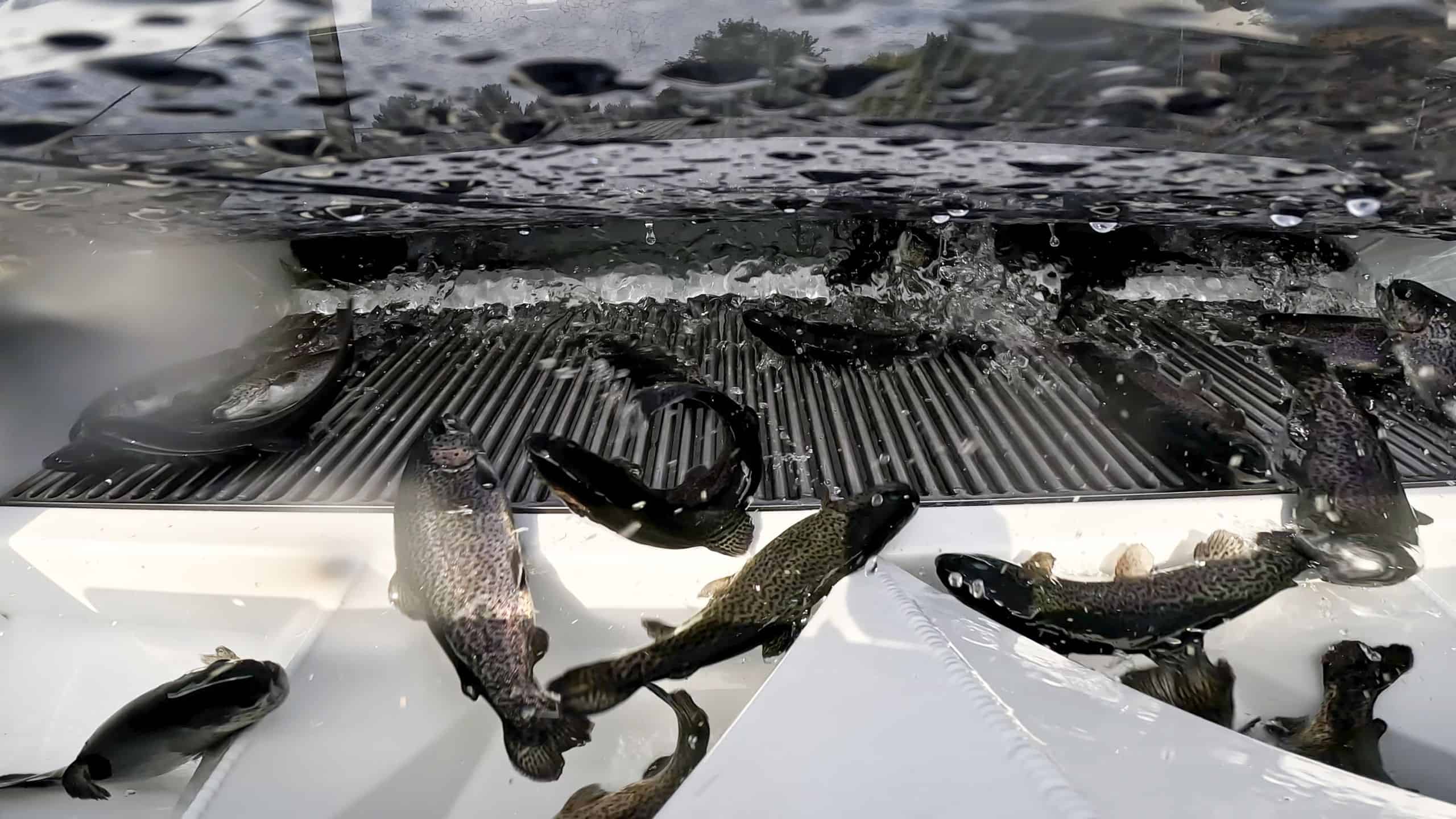

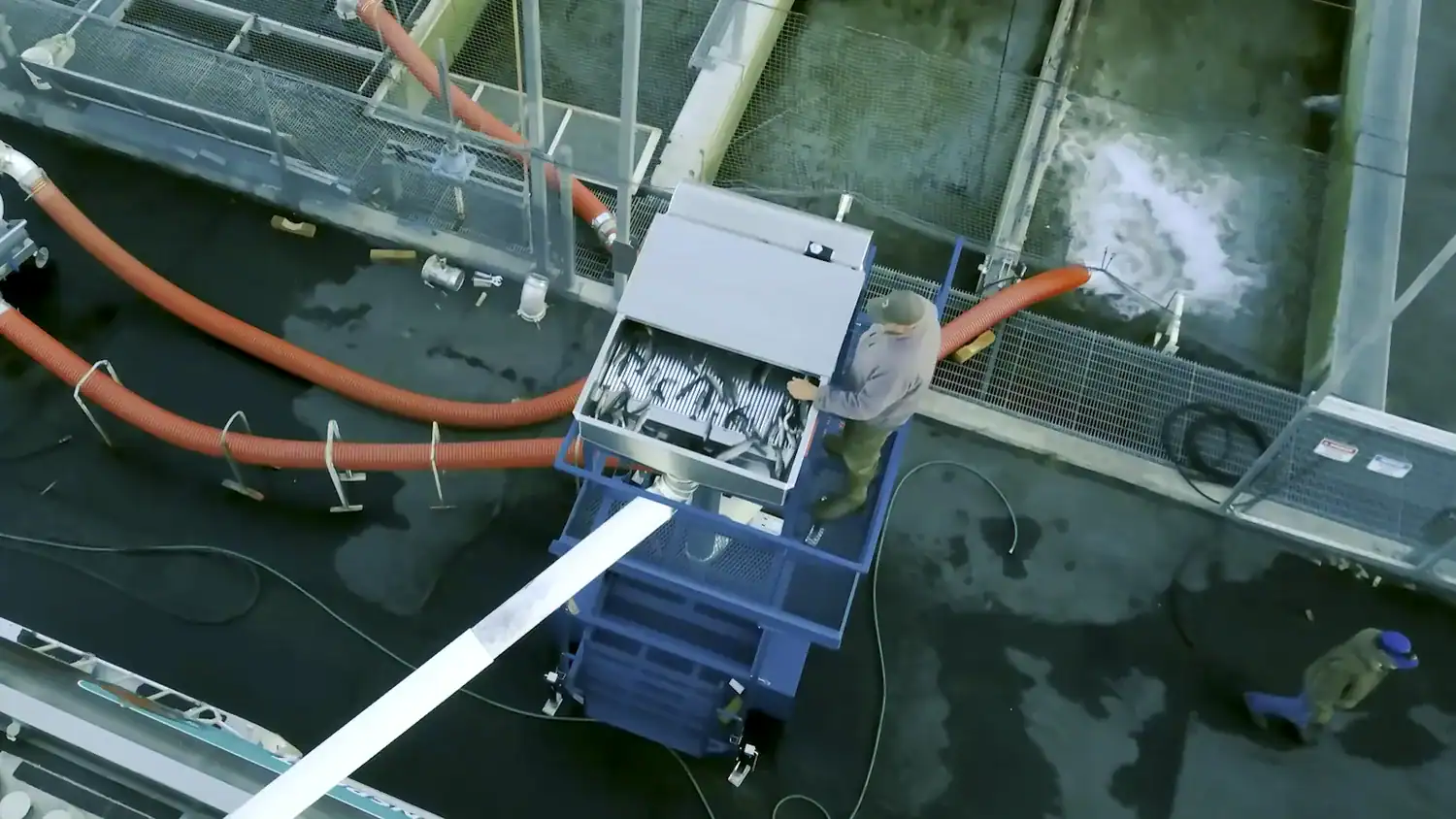

High-capacity dewatering system, stainless steel dewatering rack and soft-drop collection pan for gentle fish handling
Pre-grade alignment channel — 2.382 m long, 225 mm deep, set at 40° — presents fish to the tracs in line for accurate grading

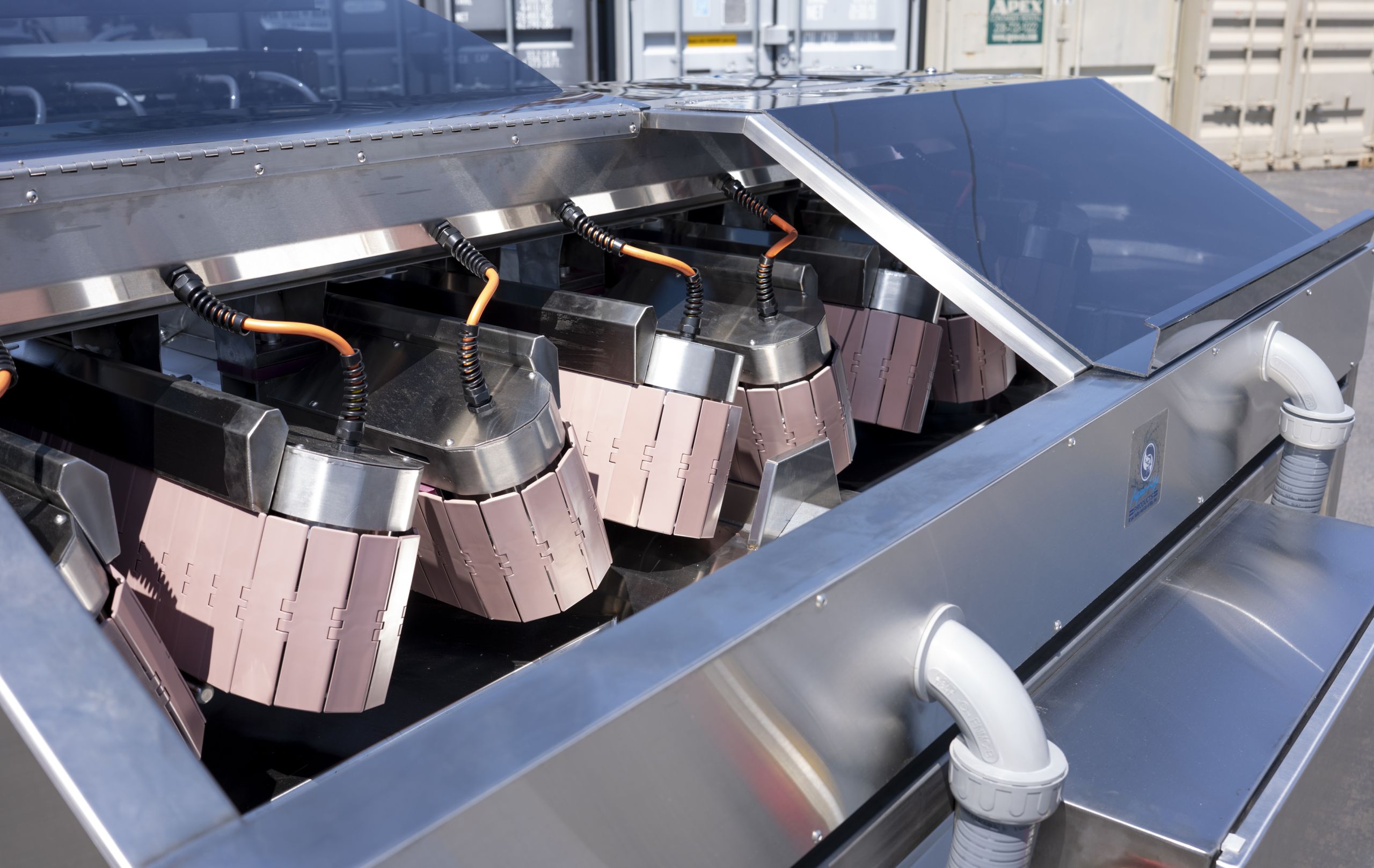

Magnetic hub motor drives at 0.75 kW each, with variable belt speed from 0.3 to 1.2 m/s
316 stainless steel throughout, built with laser welding, CNC machining and robotic manufacturing on over 50 years of Aqua-Life “Fish Smart” engineering

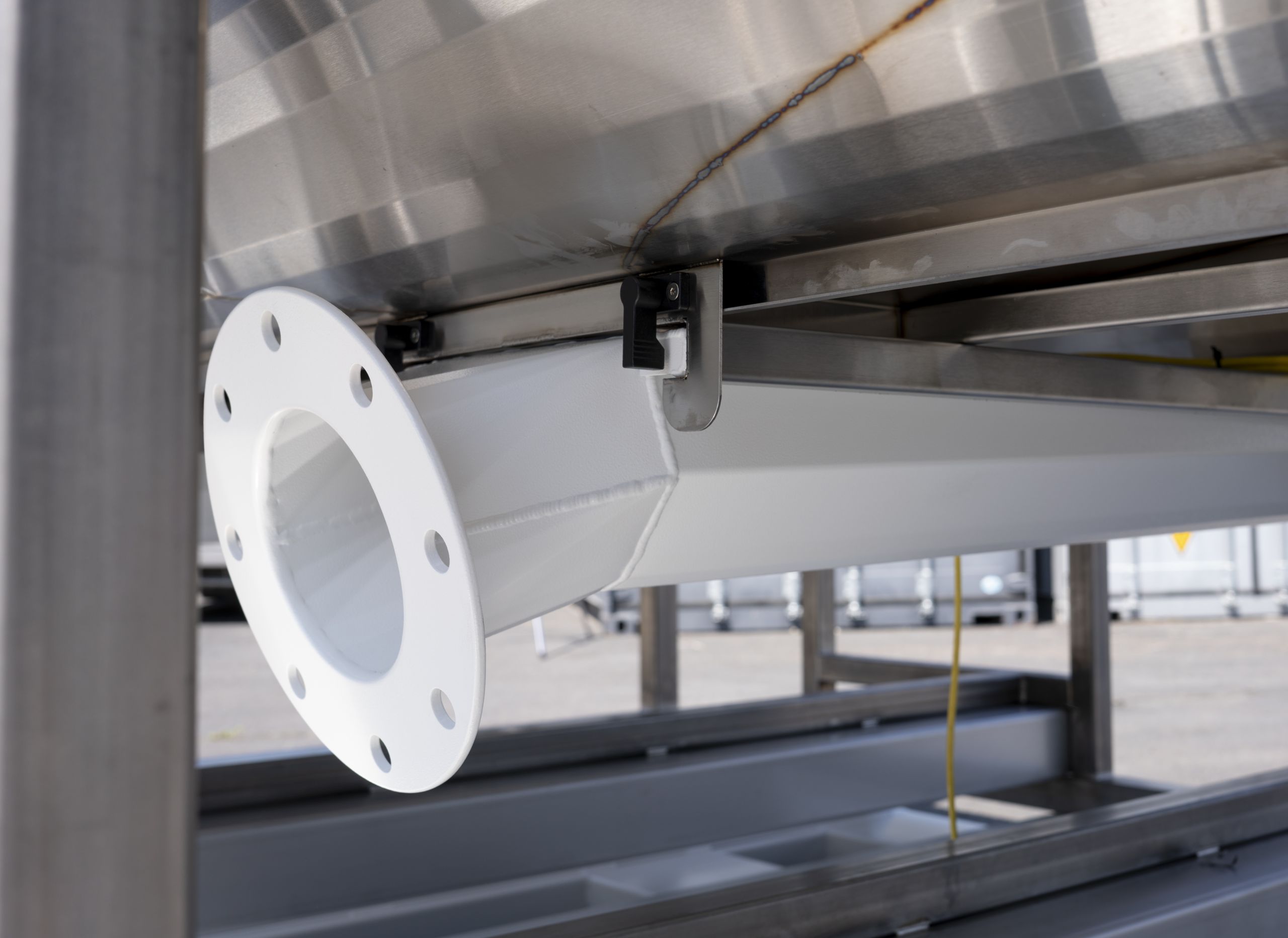

Reversible discharge outlets so the machine can be configured to suit your grading shed layout
To choose your model: size on throughput at the fish weight you actually grade, not a headline figure — a BG60-2 handles 0.76 t/hr of 25 g fish but 5.66 t/hr of 500 g fish, so work from your grading window and the tonnage you need through it. Step up to the BG60-3 or BG60-4 for roughly 1.5× and 2× the capacity, allowing 1.08 m, 1.58 m and 2.06 m of floor width respectively (all models are 3.25 m long and 1.30 m high).

Specifications

Model	Grading tracs	Overall width	Weight	Capacity, 25 g fish	Capacity, 100 g fish	Capacity, 500 g fish
BG60-2	2	1.08 m (42.625")	2,100 lb (≈ 950 kg)	0.76 t/hr	1.92 t/hr	5.66 t/hr
BG60-3	3	1.58 m (61.813")	2,450 lb (≈ 1,110 kg)	1.13 t/hr	2.89 t/hr	8.49 t/hr
BG60-4	4	2.06 m (81")	2,800 lb (≈ 1,270 kg)	1.5 t/hr	3.84 t/hr	11.32 t/hr
All models	Gap 5.3–44 mm	L 3.25 m × H 1.30 m	316 stainless steel	Fish size 5–600 g	Drives 0.75 kW each, belt 0.3–1.2 m/s	Water 95–190 LPM

Downloads

BioTrac Belt Grader Brochure

Frequently Asked Questions

What size fish can the BioTrac grade?

Which model do I need?

How much floor space does it need?

What is it made from?

What are the power and water requirements?

Can it work with our counting and biomass systems?

How do I get a price?
