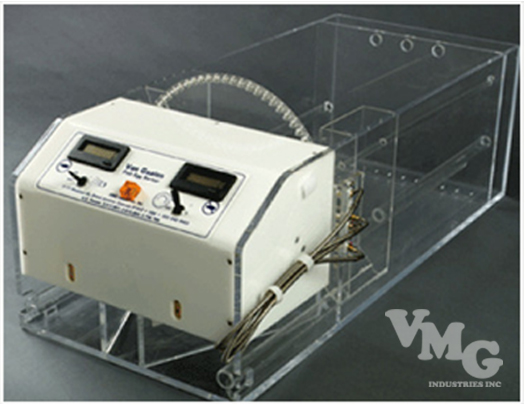

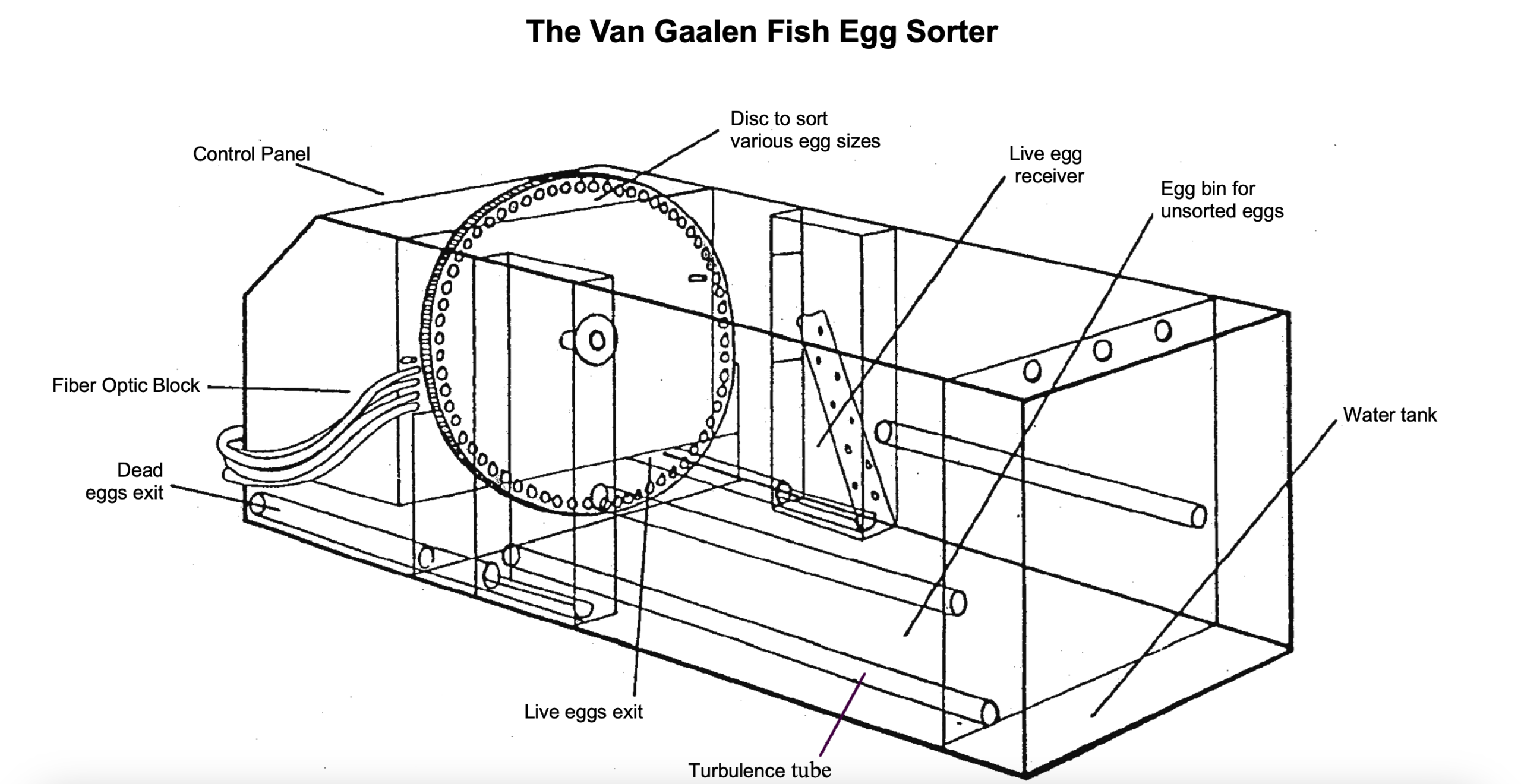

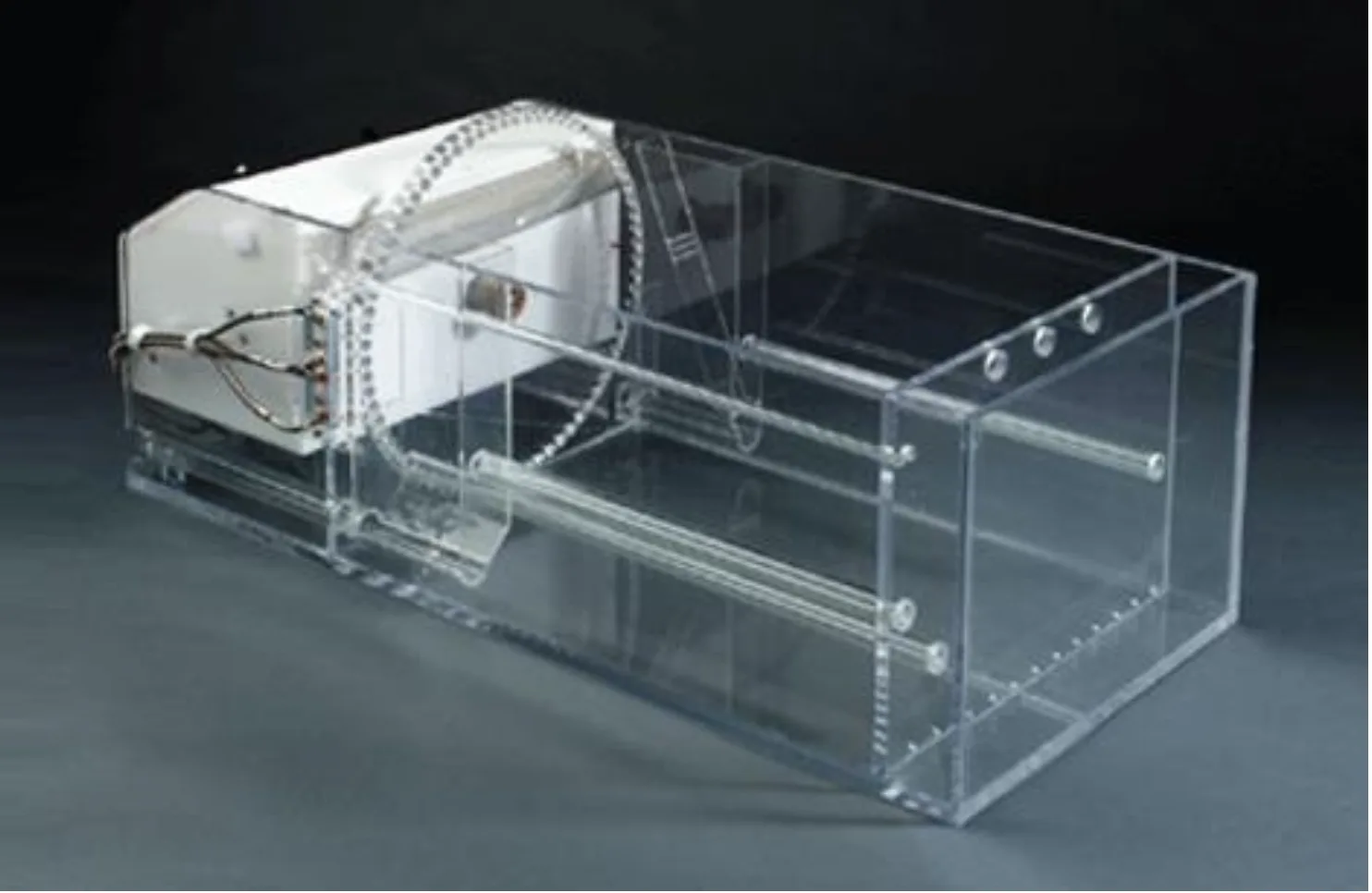

VMG Van Gaalen Fish Egg Sorter

Up to 100,000 eggs per hour — the standard patented disc sorts trout eggs from 150 to 500 per ounce, and the salmon disc sorts any size salmon egg.

Not within a disc’s range — the discs handle variable egg sizes without being swapped; you only need an extra disc for a different species.

Customers regularly report 98 to 99 per cent accuracy, using patented fibre optic and modulated infrared scanning of each egg.

Yes — the counter incorporates both live and dead egg counters.

The sorter runs on 12 V DC and accommodates any local voltage.

1.28 m × 0.56 m × 0.28 m and 23 kg (52 lb), with an egg capacity of 18.9 litres (5 gallons).

One disc is included — tell us what eggs you will be sorting and whether you need any additional size discs.

An automatic egg sorter that separates live and dead fish eggs in hatcheries.

Categories: Fish Graders, Hatchery

Applications: Hatchery, RAS

Brand: Van Gaalen

Product Information

Sorts up to 100,000 eggs per hour, with live and dead egg counters built in
Patented fibre optic and modulated infrared scanning reads every egg, with customers regularly reporting 98–99% accuracy
Runs on 12 V DC, so it accommodates any local voltage
Compact and portable at 1.28 × 0.56 × 0.28 m and 23 kg
Hopper holds 18.9 litres (5 gallons) of eggs
Engineered by VMG Industries, who have built aquaculture hatchery equipment for over 30 years
Supplied with one disc, with additional size discs available on request
Sizing: choose the disc to suit your eggs — the standard patented disc sorts trout eggs from 150 to 500 per ounce and the salmon disc sorts any size salmon egg, and neither disc needs changing to handle different egg sizes within its range

Parameter	Specification
Sorting capacity	Up to 100,000 eggs per hour
Egg size range — trout	150 to 500 eggs per ounce, on the standard patented disc
Egg size range — salmon	Any size salmon egg, on the salmon disc
Disc changes	Not required to handle different egg sizes within a disc's range
Sorting accuracy	98–99% regularly reported by customers
Detection	Patented fibre optic and modulated infrared light scanning of each egg
Counting	Live and dead egg counters
Hopper egg capacity	18.9 litres / 5 gallons
Overall dimensions	1.28 m × 0.56 m × 0.28 m
Weight	23 kg / 52 lb
Power	12 V DC — accommodates any local voltage
Supplied with	One disc; additional size discs available

What egg size range and sorting capacity does it handle?

Do I have to change discs for different egg sizes?

How accurate is the sort?

Does it count eggs as well as sort them?

What power supply does it need?

How big and heavy is it?

What is supplied with the sorter?
