Apollo Fish Grader

Standard models grade fish of roughly 1–500 g on a 0–36 mm roller gap, and XL8/XL10 models grade salmon from 5 g to 1,800 g depending on the gap fitted; a rated throughput figure is not published, so tell us your fish size and batch and we will confirm.

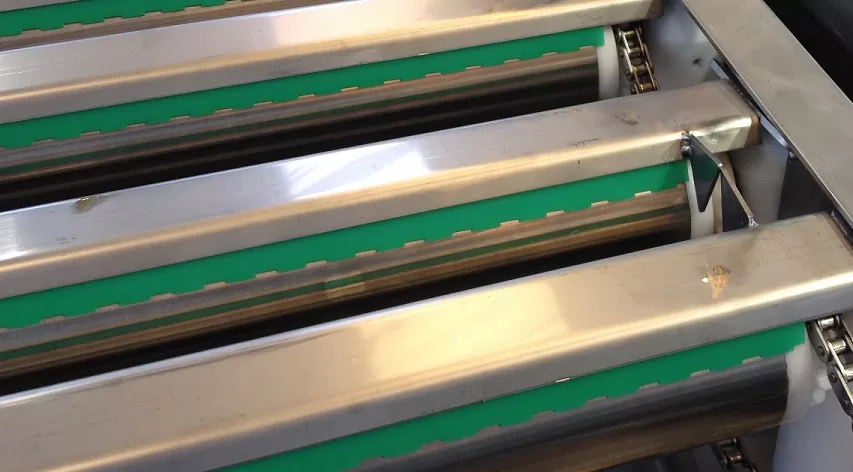

Roller spacing is adjusted with finger screws — standard rollers move from 0 to 36 mm, and XL models are supplied for 2–45 mm, 12–55 mm or 22–65 mm.

Yes — the grader is built in AISI 316 acid-resisting stainless steel, chosen for seawater service.

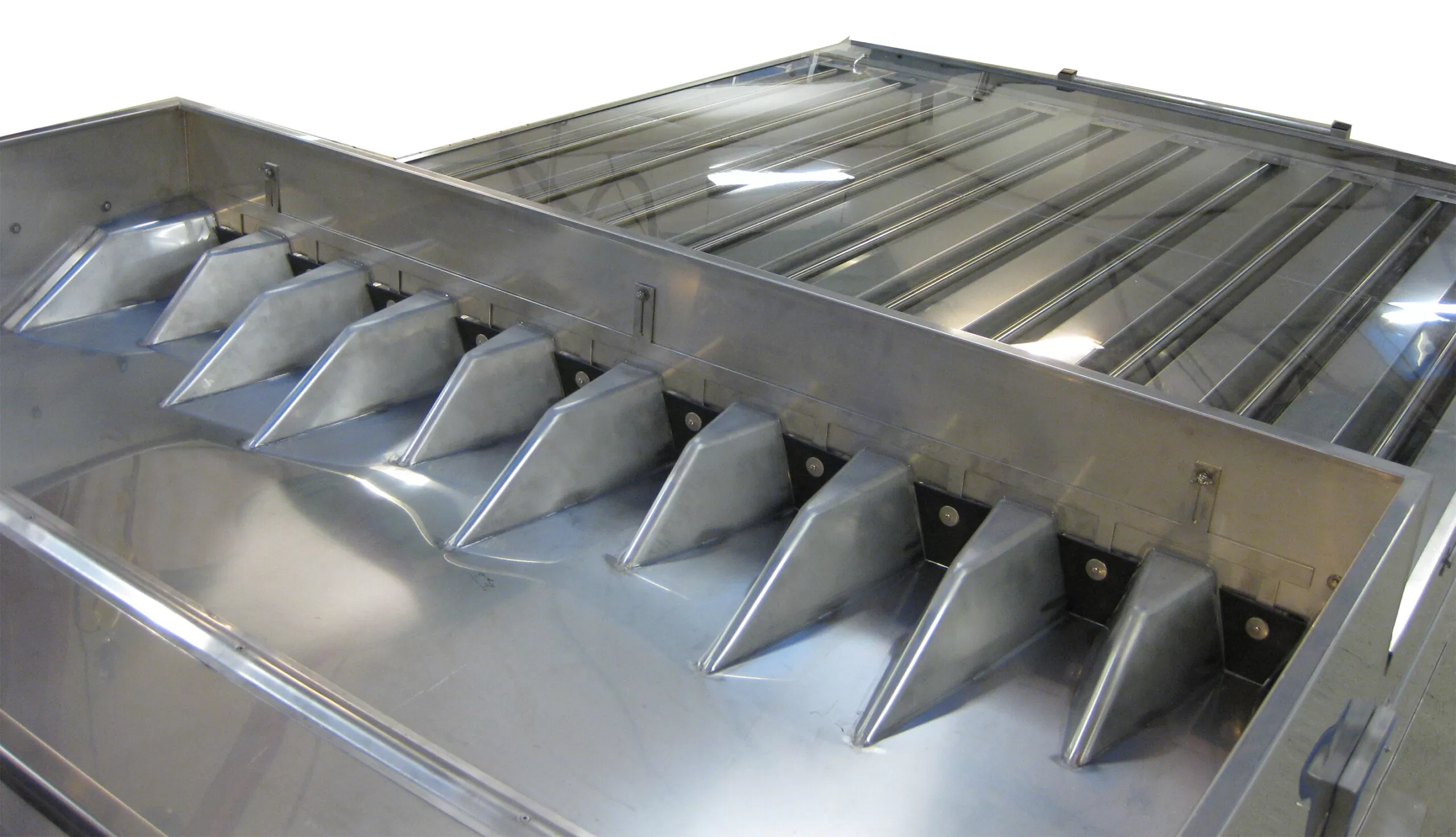

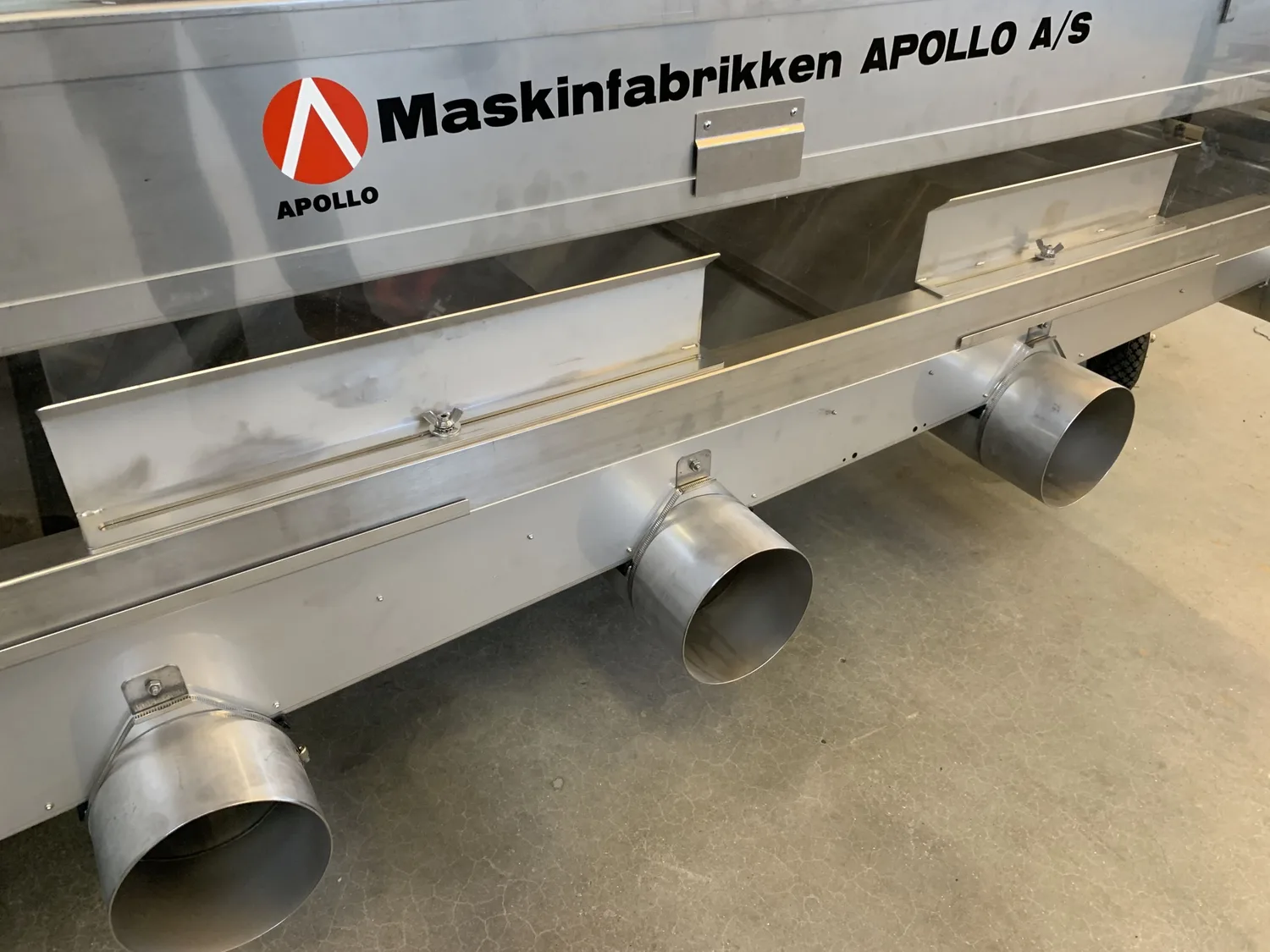

The standard grader comes in 4, 5, 7 or 10 tracks with 3 or 4 outlets of 150 mm; XL8 and XL10 have 8 or 10 tracks with 200 mm outlets.

XL models run a 0.25 kW motor at 1,400 rpm on 230 V single phase or 230/400 V three phase, with minimum spray water of 8 m³/h on the XL8 and 10 m³/h on the XL10.

Yes — an optional water separator dewaters the flow so fish can be pumped in rather than tipped in.

Standard models weigh 280 to 600 kg depending on configuration, and the 4-track measures 315 × 113 × 126 cm.
