Moticam X5 Plus digital camera

Q: Do I need a computer at the microscope to use it?

No, the X5 Plus creates its own WiFi network, so phones, tablets and laptops connect to it directly without a dedicated capture PC.

Q: How many people can view the live image at once?

Up to 6 devices simultaneously, across iOS, Android, Windows and macOS.

Q: What frame rate does it actually deliver?

Up to 30 fps at Full HD 1920 × 1080, though the achieved rate depends on connection strength.

Q: Will it fit my microscope?

It is a C-mount camera and ships with 30 mm and 38 mm eyepiece adapters and a CS ring adaptor, so it fits a trinocular port or a standard eyepiece tube.

Q: Can I take measurements from the image?

Yes, Motic Images Plus 3.1 and the MotiConnect app provide measurement and objective-specific calibration, and a 4-dot calibration slide is supplied.

Q: Can it run on a wired network instead of WiFi?

Yes, it has an Ethernet RJ45 port for integration into a lab network.

Q: How should I choose between this and the Moticam A Series?

Take the X5 Plus for wireless sharing to multiple devices, and the A Series for a single USB-connected computer or where higher resolution matters more.

A wireless microscope camera that streams the microscope view to phones, tablets and computers for sharing and recording.

$1,000.00 ex GST

SKU: Moticam X5

Categories: Lab Equipment

Applications: Hatchery, RAS

Brand: Motic

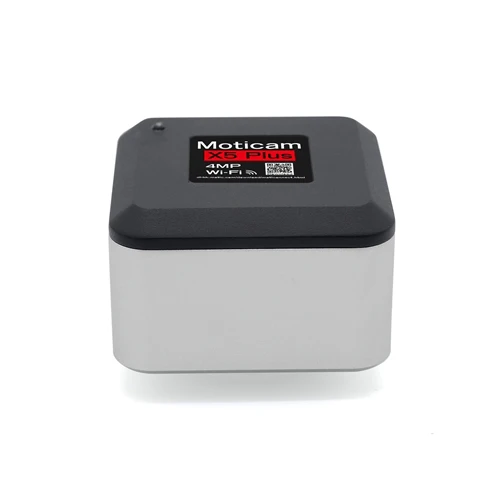

Moticam X5 Plus digital camera - Image 2

Product Information

Key Features

4 MP capture (2560 × 1440) on a 1/3″ CMOS sensor, with a C-mount body and focusable lens supplied
Live streaming at up to 30 fps at Full HD 1920 × 1080, or 1280 × 720, subject to connection strength
Creates its own WiFi network on 2.4 and 5 GHz, so no capture PC has to sit at the microscope
Ethernet RJ45 port as well, for a wired connection where a lab network is preferred to WiFi
Shares the live image with up to 6 devices at once, across iOS, Android, Windows and macOS
MotiConnect app and Motic Images Plus 3.1 give live view, white balance, manual and automatic exposure, measurement and objective calibration
Supplied with CS ring adaptor, 30 mm and 38 mm eyepiece adapters, 4-dot calibration slide, macro tube and universal 100–240 V power supply
Sizing: choose the X5 Plus when several people need to see the same live image on their own devices without a wired PC. If a single operator is capturing to one computer, a USB camera from the Moticam A Series will do the same job for less

Specifications

Specification	Moticam X5 Plus
Sensor	1/3″ CMOS
Capture resolution	4 MP (2560 × 1440 pixels)
Live display resolution	Full HD 1920 × 1080, or 1280 × 720
Frame rate	Up to 30 fps at 1920 × 1080, dependent on connection strength
Interface	Built-in WiFi (2.4 and 5 GHz), plus Ethernet RJ45
Simultaneous viewers	Up to 6 devices at once
Lens mount	C-mount, focusable lens supplied
Client devices	iOS, Android, Windows and macOS
Software	MotiConnect app (iOS, Android); Motic Images Plus 3.1 (Windows, macOS, Linux)
Power supply	External 12 V, universal 100–240 V
Operating temperature	−10 °C to +50 °C, non-condensing
Supplied with	Focusable lens, CS ring adaptor, 30 mm and 38 mm eyepiece adapters, 4-dot calibration slide, macro tube, calibration card, power supply
Other models	Other Moticam models available on request

Downloads

Moticam X5 Plus — Spec Sheet Connect Your Moticam — Setup Guide

Frequently Asked Questions

Do I need a computer at the microscope to use it?

How many people can view the live image at once?

What frame rate does it actually deliver?

Will it fit my microscope?

Can I take measurements from the image?

Can it run on a wired network instead of WiFi?

How should I choose between this and the Moticam A Series?
