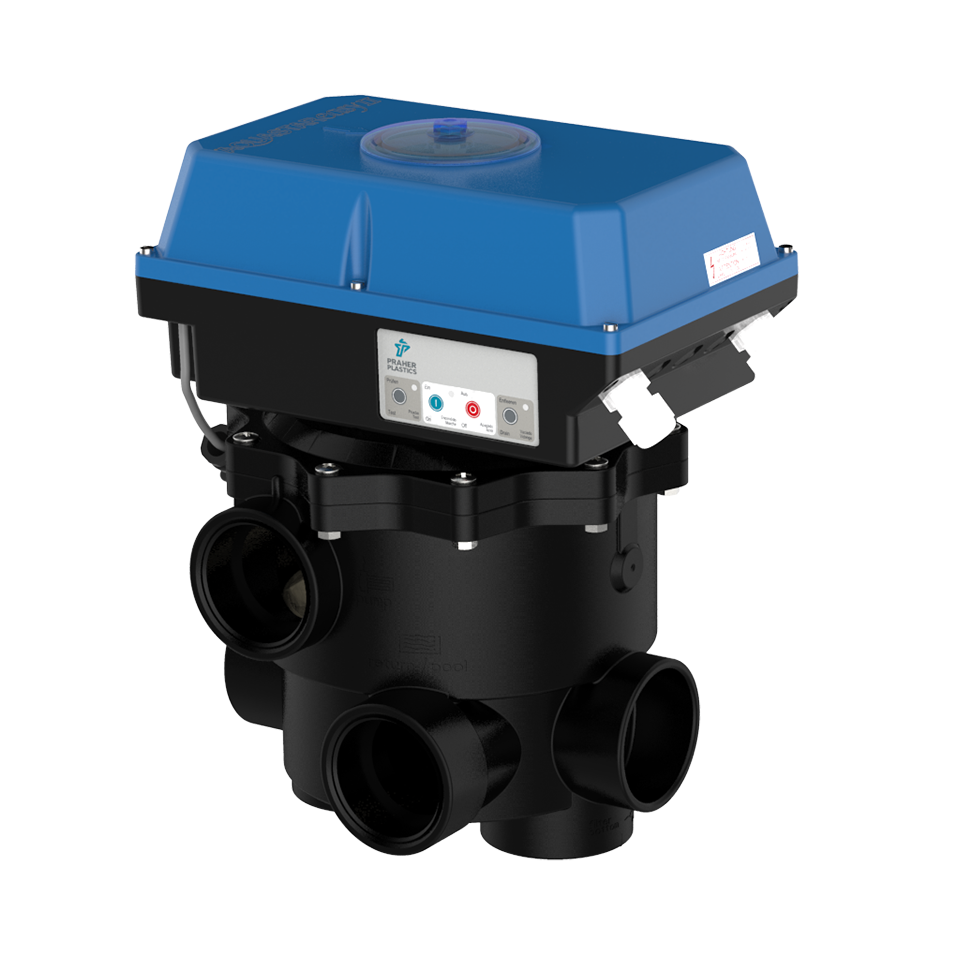

Peraqua Autobackwash Valves

Q: Which size do I need?

Match the valve to your filter’s connection size and working pressure — the 2″ model is rated to 3.5 bar and the 3″ model to 5 bar.

Q: What triggers a backwash?

Both models release the backwash on time via switch positions, and both include a pressure switch so a blinding filter triggers a cycle.

Q: Is the thread BSP or NPT?

Both are BSP — R 2″ BSP thread ends on the 2″ model and 3″ BSP on the 3″ model.

Q: Can the controller be installed outdoors?

Yes — it is IP65 rated and UV resistant, and runs on 100–240 VAC.

Q: Will it fit my existing filter?

The 2″ model is designed to adapt to filter systems running a 1½” or 2″ Praher side-mount or top-mount valve. Send us your filter make and model and we will confirm.

Q: What happens if the valve needs to be operated by hand?

An emergency handle is supplied with the valve, and the error management reports faults to help prevent equipment damage.

Q: How do I get a price?

Request a quote with your filter make, connection size and working pressure and we’ll come back with the right model and lead time.

Automatic backwash valves for cleaning filters on a timer or pressure signal.

Categories: Plumbing Fittings

Applications: Aquaponics, Hatchery, Live Holding & Purging, LSS, Pond, Public Aquarium, RAS, Water & Wastewater Treatment

Brand: Peraqua

Product Information

Key Features

Fully automatic backwashing of filtration systems — no manual valve handling on a backwash cycle
Two sizes: Aquastar 2″ (easyII with pressure sensor) and Aquastar 3″ (Comfort 4001-230)
Backwash released on time via switch positions and on a pressure switch, so the filter is cleaned when it actually needs it rather than on the clock alone
BSP thread ends on both sizes — R 2″ BSP on the 2″, 3″ BSP on the 3″
Maximum operating pressure 3.5 bar on the 2″ model and 5 bar on the 3″
IP65 enclosure, UV resistant and 100–240 VAC, so the controller can sit on an outdoor plant deck
External backwash release and circulation, error management, multifunction relay, pump control, settling-time extension and an emergency handle included
To choose your model: match the valve to your filter’s connection size and to the working pressure of your system. The 2″ tops out at 3.5 bar and is designed to adapt to filters running a 1½” or 2″ Praher side-mount or top-mount valve; the 3″ is rated to 5 bar. Send us your filter make, connection size and working pressure and we will confirm the fit.

Specifications

Specification	Aquastar 2"	Aquastar 3"
Controller	easyII with pressure sensor	Comfort 4001-230
Valve code	SM20 AO 2"	SM31 AO 3"
Body material	ABS, black	ASA-GF, natural
Connection	R 2" BSP thread ends	3" BSP thread ends
Maximum operating pressure	3.5 bar	5 bar
Seals	NBR and TPE	NBR and EPDM
Backwash release	Time via switch positions, plus pressure switch	Time plus pressure switch
Power supply	100–240 VAC	100–240 VAC
Enclosure protection	IP65	IP65
UV resistance	UV resistant	UV resistant
Emergency handle	Included	Included
Filter compatibility	Filters with a 1½" or 2" Praher side-mount or top-mount valve, ABS 3.5 bar	Not published by supplier — confirm with us

Downloads

Aquastar Manual
