LaMotte WaterLink Spin Touch

Q: How long does a test take?

One filled disk runs its whole series of tests automatically and reports every result in about 60 seconds.

Q: Are reagent disks included with the photometer?

No. Disks are sold separately so they can be matched to your water type. A calibration check disk is supplied with the meter.

Q: Which disk do I use for brackish water?

For samples between 10 and 20 ppt salinity, use the saltwater FX203 disk with the Brackish Tablet Package (code 3865-PKG). Magnesium is not reported on brackish samples.

Q: What is the difference between the bench and mobile versions?

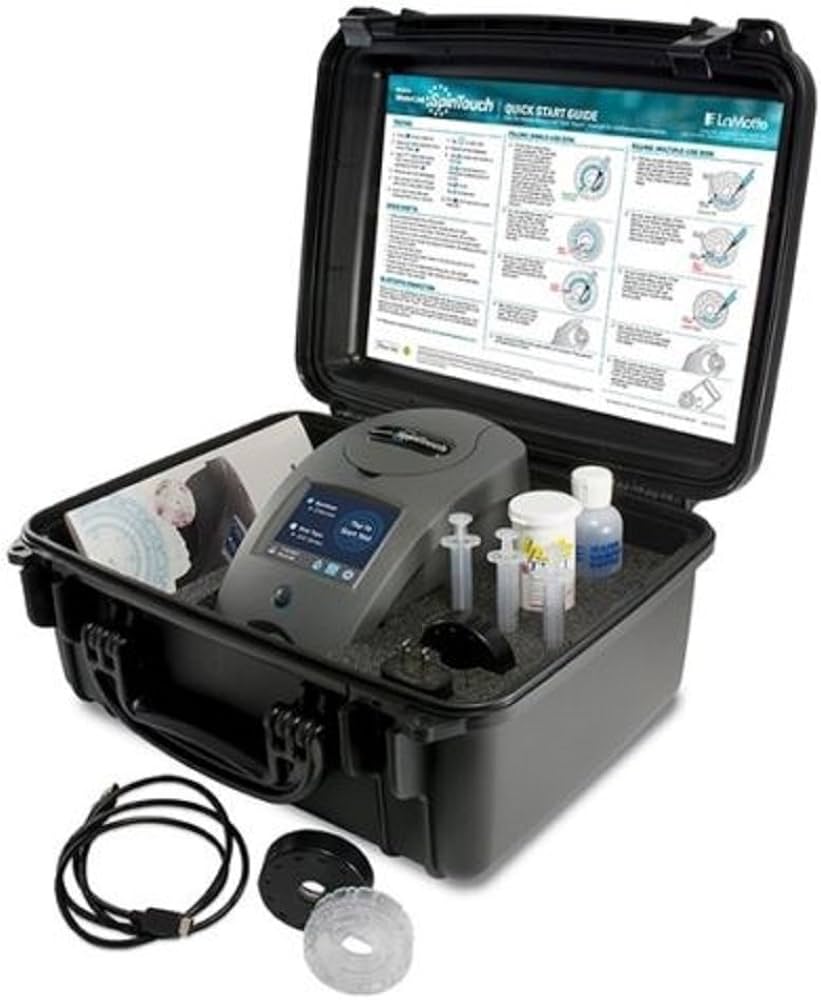

The instrument is the same. The mobile version is supplied in a waterproof carrying case with foam inserts that holds the meter and its accessories for testing away from the lab.

Q: Which parameters does each aquaculture disk cover?

The freshwater FX104 disk reads alkalinity, ammonia, hardness, nitrate, nitrite, pH and phosphate. The saltwater FX203 disk replaces hardness with calcium and magnesium and reads nitrate over a lower range.

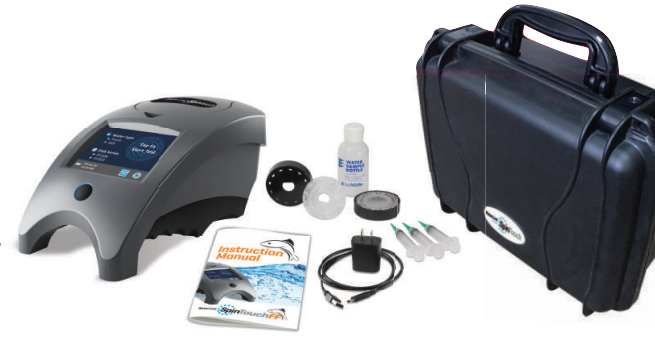

Q: What is supplied with the photometer?

The photometer, a calibration check disk, three syringes, a USB cord, the instruction manual and quick-start instructions. The mobile version also includes a waterproof carrying case with foam inserts that holds the meter and accessories.

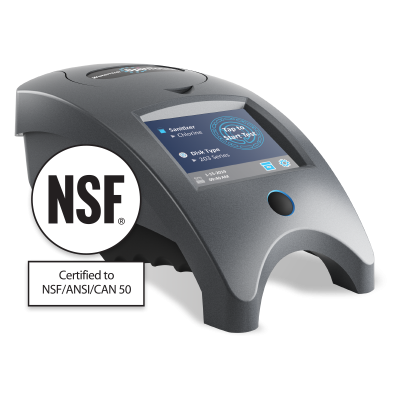

A compact photometer that runs a panel of water quality tests from a single sample in about a minute.

Price range: $40.00 through $2,000.00 ex GST

Option

Clear

Categories: Water Quality Monitoring

Brand: LaMotte

Product Information

Key Features

Photometer
Instruction manual
3 syringes
Calibration check disk
USB cord
Quick-start instructions
Waterproof carrying case with foam inserts (holds meter & accessories)

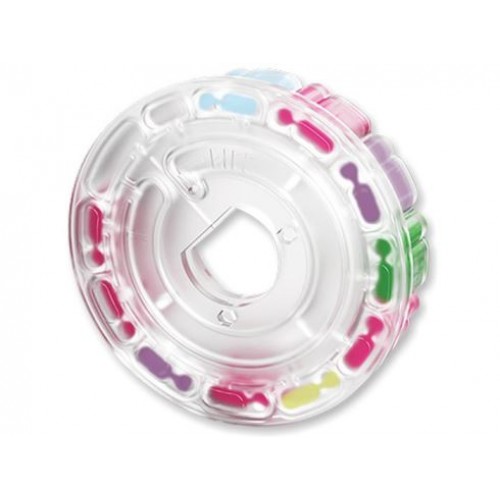

Reagent disks sold separately – see the specifications below for more information about available disks

Specifications

Disk	Alkalinity	Ammonia NH3	Hardness	Calcium Ca	Magnesium Mg	Nitrate NO3	Nitrite NO2	pH	Phosphate PO4	Free Chlorine (DPD)	Total Chlorine (DPD)	Bromine (DPD)	Total Hardness	Calcium Hardness	Total Alkalinity	Cyanuric Acid	Copper	Phosphate	Salt	Magnesium
Freshwater Disk FX104 – Code 4353	0-250ppm	0.0-3.0ppm	0-500ppm			0-300ppm	0.0-2.0ppm	4.5-10.0pH	0.0-2.0ppm
Saltwater Disk FX203 – Code 4354	0-300ppm	0.0-3.0ppm		200-800	500-2200ppm	0-60ppm	0.0-2.0ppm	6.5-10.0pH	0.0-2.0ppm
Disk 4348 – Series 104								6.4 – 8.6		0 – 15 ppm	0 – 15 ppm	0 – 33 ppm	0 – 1200 ppm	0 – 800 ppm	0 – 250 ppm	5 – 150 ppm	0 – 3.0 ppm
Disk 4349 – Series 204								6.4 – 8.6		0 – 15 ppm	0 – 15 ppm	0 – 33 ppm	0 – 1200 ppm	0 – 800 ppm	0 – 250 ppm	5 – 150 ppm	0 – 3.0 ppm
Disk 4355 – Series 801								6.4 – 8.6		0 – 15 ppm	0 – 15 ppm	0 – 33 ppm	0 – 1200 ppm		0 – 250 ppm	5 – 150 ppm		0 – 2000 ppb	0 – 5000 ppm	0 – 1200 ppm

Downloads

Instruction manual Quick start guide WaterLink Spin Touch FX reagent disk specifications
