Biostream BP25 (2.5″) Fish Pump

Q: How many fish will the BP25 move in an hour?

Up to 4 tonnes per hour, though the rate you actually achieve depends on species, fish size, pipe run and head.

Q: What size fish will it pass?

The BP25 is rated to a maximum average fish size of 95 g.

Q: How do I size a fish pump for my harvest?

Work from three numbers together — the tonnage you need to move per hour, the maximum average fish size, and the vertical head from water level to discharge. The BP25 covers 4 t/hr, 95 g and 7.5 m, but those limits cannot be reached at the same time, so size on your worst case.

Q: What pipe size does it run?

A 2.5 inch (63 mm) bore, which is what the BP25 designation refers to.

Q: How high can it lift?

Up to 7.5 m of pumping head on the BP25.

Q: How much water and air does the pump need?

Water and air demand figures are not published for the BP25, so ask Fresh By Design to confirm the service requirements for your layout before you design the services.

Q: Can it be left permanently installed?

Yes, it can be installed as a permanent centralised transfer and harvesting system, or moved between tanks as required.

A fish pump for moving small fish gently between tanks, ponds and vehicles.

Categories: Fish Pumps, Hatchery

Applications: Hatchery, Live Holding & Purging, Live Transport, RAS

Brand: Biostream

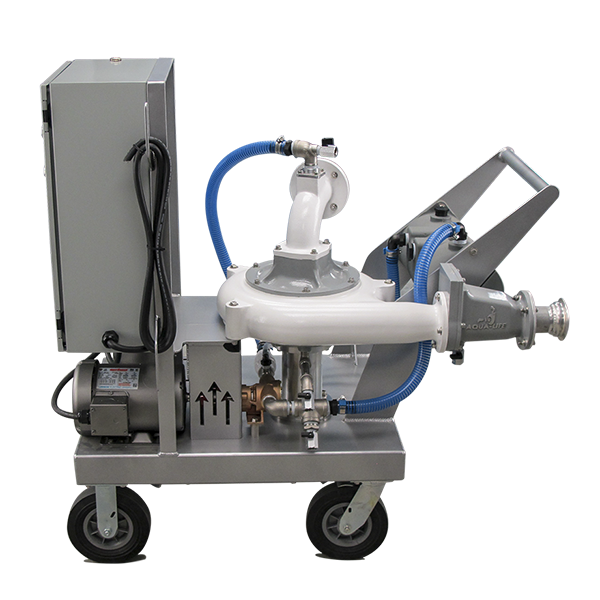

Biostream BP25 (2.5") Fish Pump - Image 2

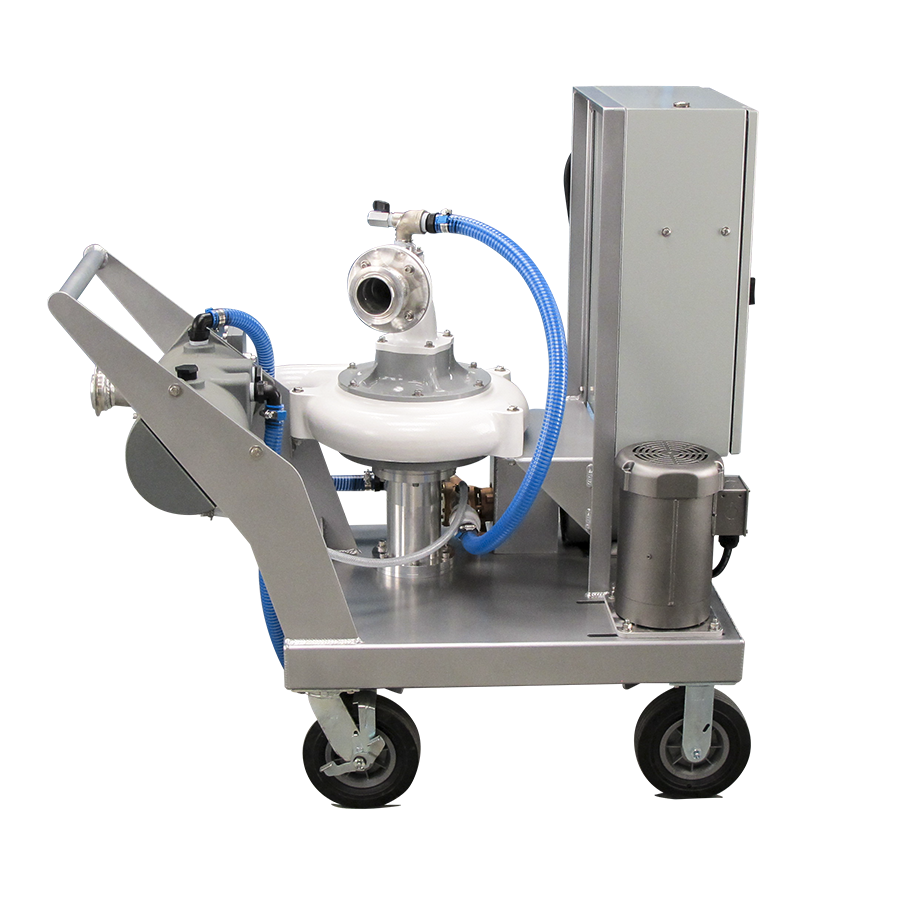

Biostream BP25 (2.5") Fish Pump - Image 3

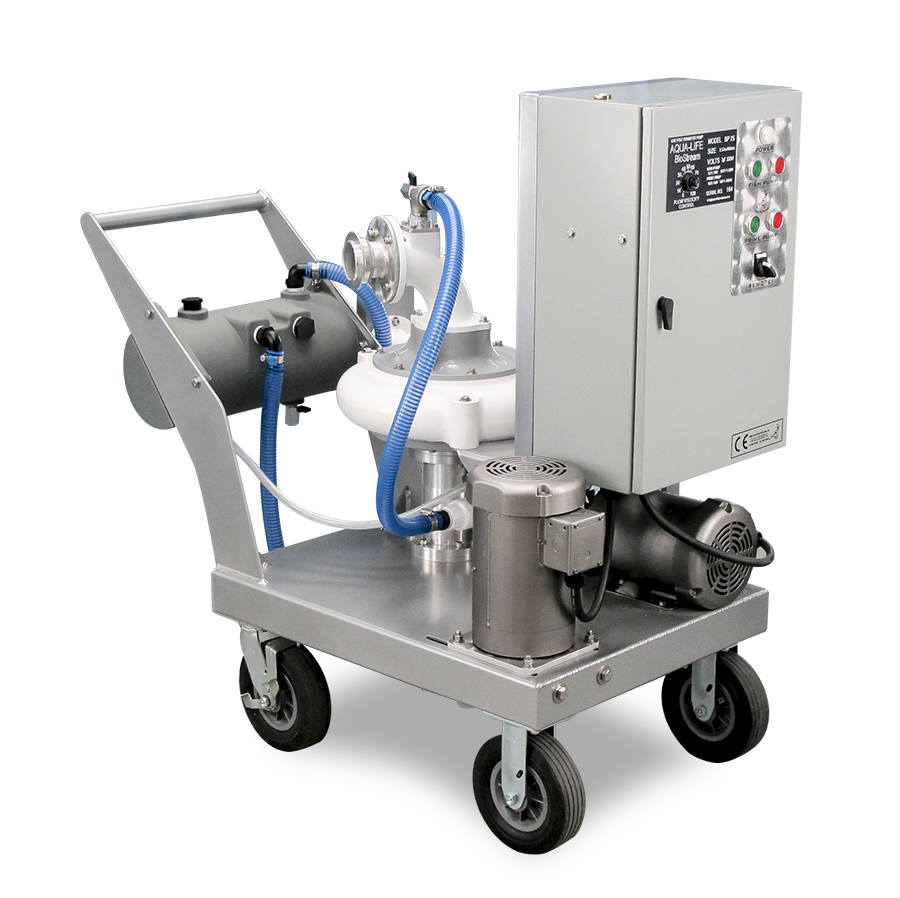

Biostream BP25 (2.5") Fish Pump - Image 4

Product Information

Key Features

Purpose-built live aquatic transfer pump — moves fish without external or internal damage to the species
Self-priming, with variable speed drive and optional remote control operation
Marine alloy aluminium construction, light enough to be moved and reinstalled between tanks
Submersible and non-submersible application designs
Transfers live fish over long distances, or installs as a permanent centralised harvest and transfer system
Two to three times more fish per hour than manual handling, with less damage and stress to the product
Small physical footprint, which is what makes it suit hatchery and nursery work where space is tight
Sizing: the BP25 moves up to 4 tonnes of fish per hour through a 2.5″ (63 mm) bore at up to 7.5 m head, with a maximum average fish size of 95 g — size on your worst case, as these limits cannot be achieved simultaneously

Specifications

Specification	Detail
Model	BioStream BP25
Pipe bore	2.5" (63 mm)
Fish pumping capacity	Up to 4 tonnes per hour
Maximum average fish size	95 g
Maximum pumping head	7.5 m
Drive	Variable speed electric drive, self-priming
Remote control	Available as an option
Construction	Marine alloy aluminium
Application design	Submersible and non-submersible
Water flow required	Not published — confirm with Fresh By Design for your layout
Air supply required	Not published — confirm with Fresh By Design for your layout
Please note	Limits vary with application, species and setup, and cannot be achieved simultaneously

Downloads

BioStream Brochure BioStream Fish Pumps BioStream Applications

Frequently Asked Questions

How many fish will the BP25 move in an hour?

What size fish will it pass?

How do I size a fish pump for my harvest?

What pipe size does it run?

How high can it lift?

How much water and air does the pump need?

Can it be left permanently installed?
