VAKI Smart Grader

Q: Which Smart Grader do I need?

Size on throughput and fish size: Micro (5 tracks) does 1,000–4,000 kg/h of 5–500 g salmon, Macro (10 tracks) 2,000–8,000 kg/h of the same range, and Exel (7 tracks, 80 mm rollers) takes salmon up to 2 kg.

Q: What fish sizes will it grade?

Micro and Macro grade fish 5 to 55 mm thick, a recommended 5 to 500 g for salmon; the Exel is recommended up to 2 kg.

Q: How accurate is the grading?

The rollers are machined with high-precision laser welding tools and balanced on specialised equipment, which is what delivers accurate grading, and the digital display shows the exact opening set for each grade.

Q: How are the grade settings adjusted?

Electric linear actuators set the openings, controlled from the on-board panel, remotely from a smart device, or automatically from a VAKI Counter that counts, measures size and calculates the split.

Q: Can the grader be tilted?

Yes — main sorting unit inclination adjusts from 5 to 10°, electrically on Macro and Exel or manually on Micro.

Q: What is it built from?

High-grade 316L stainless steel and selected plastics that are corrosion and water resistant.

Q: Does it connect to other VAKI equipment?

Yes — it connects to VAKI Smart Flow and VAKI Cloud, and can be driven automatically from a VAKI Counter.

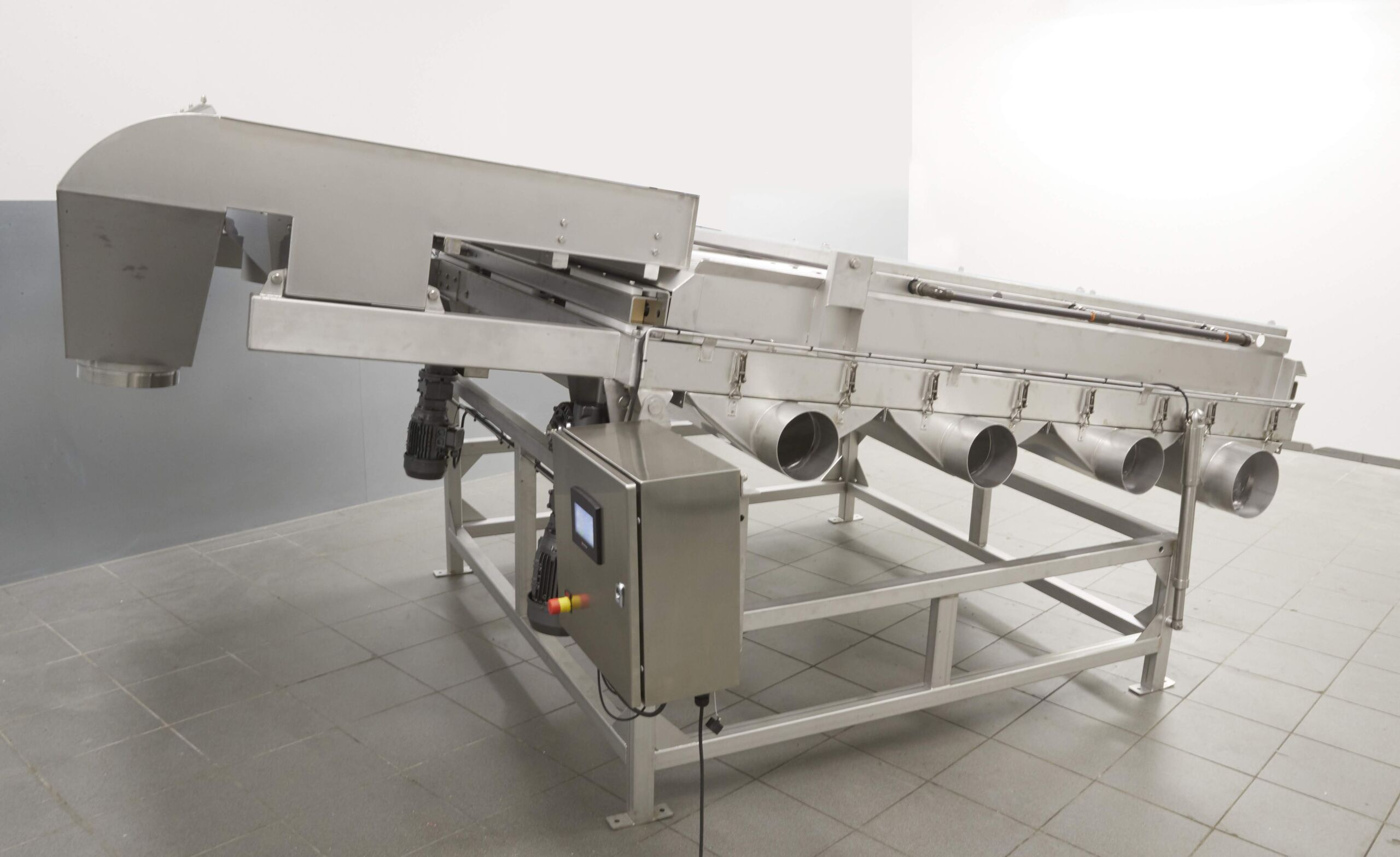

An automatic fish grader for sorting live fish by size with low handling stress.

Categories: Fish Graders, Hatchery

Applications: Hatchery, Live Holding & Purging, RAS

Brand: VAKI

Product Information

Key Features

Three models — Micro, Macro and Exel — covering everything from small fingerlings up to around 2 kg salmon

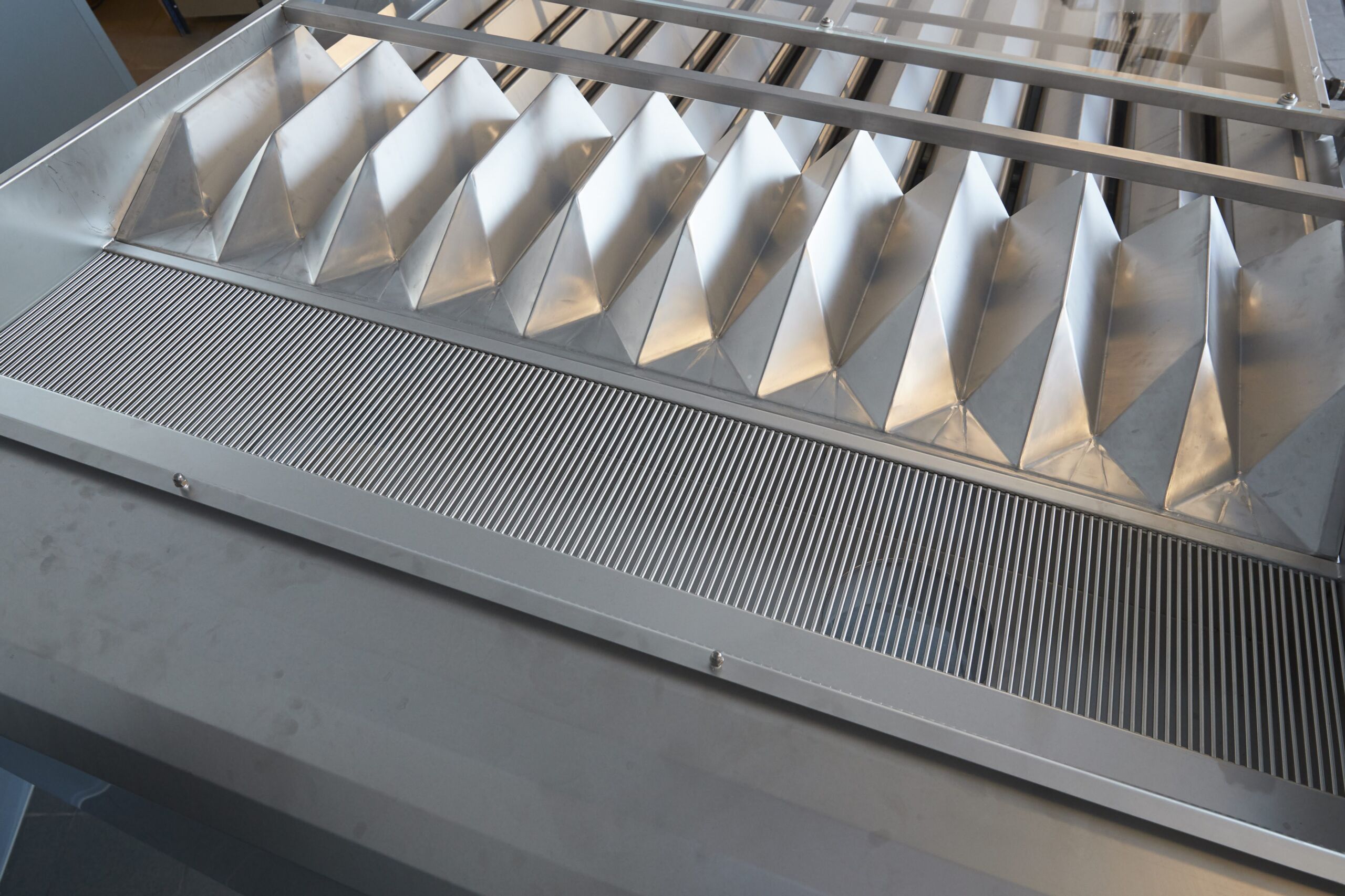

Full-width dewatering inlet spreads the fish evenly across the machine so every grading track earns its keep
Live grading over precision rollers, laser-welded and balanced on specialised equipment to hold grade accuracy

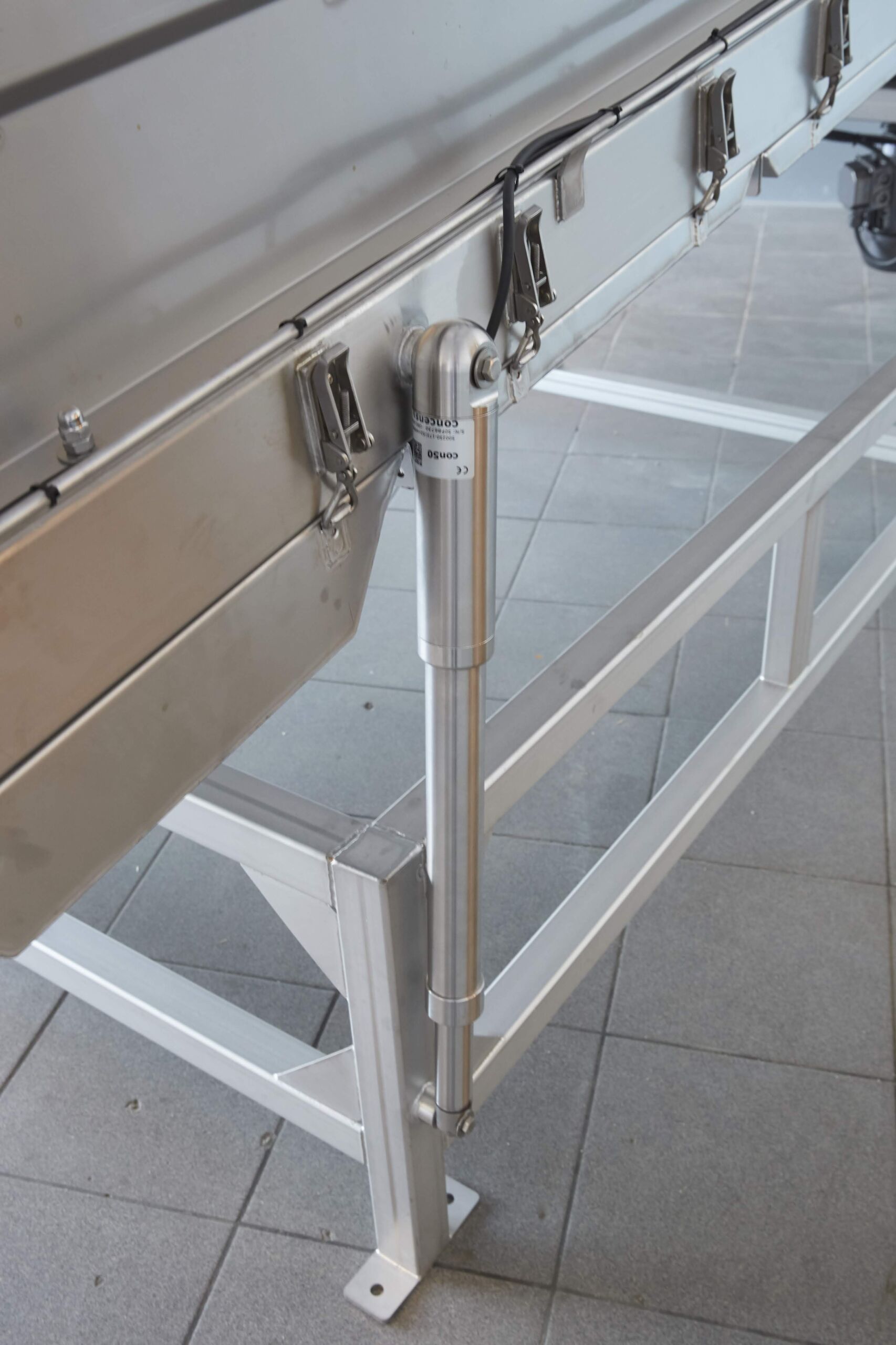

Grade openings set by electric linear actuators — from the on-board panel, remotely from a smart device, or automatically from a VAKI Counter

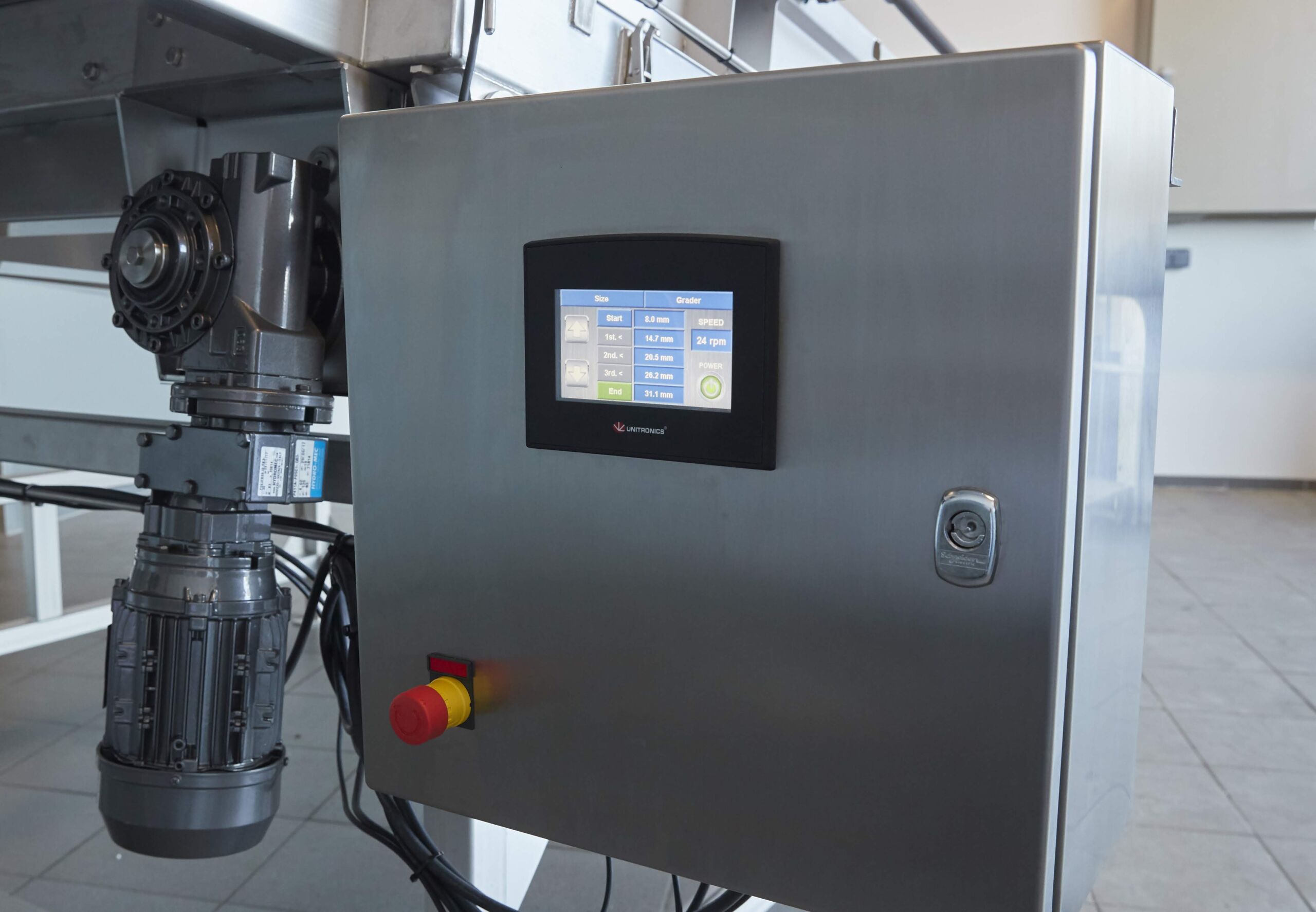

Digital display shows the size opening for each grade, and roller speed is trimmed on a frequency controller
Sorting unit inclination adjustable from 5 to 10°, electrically on Macro and Exel or manually on Micro

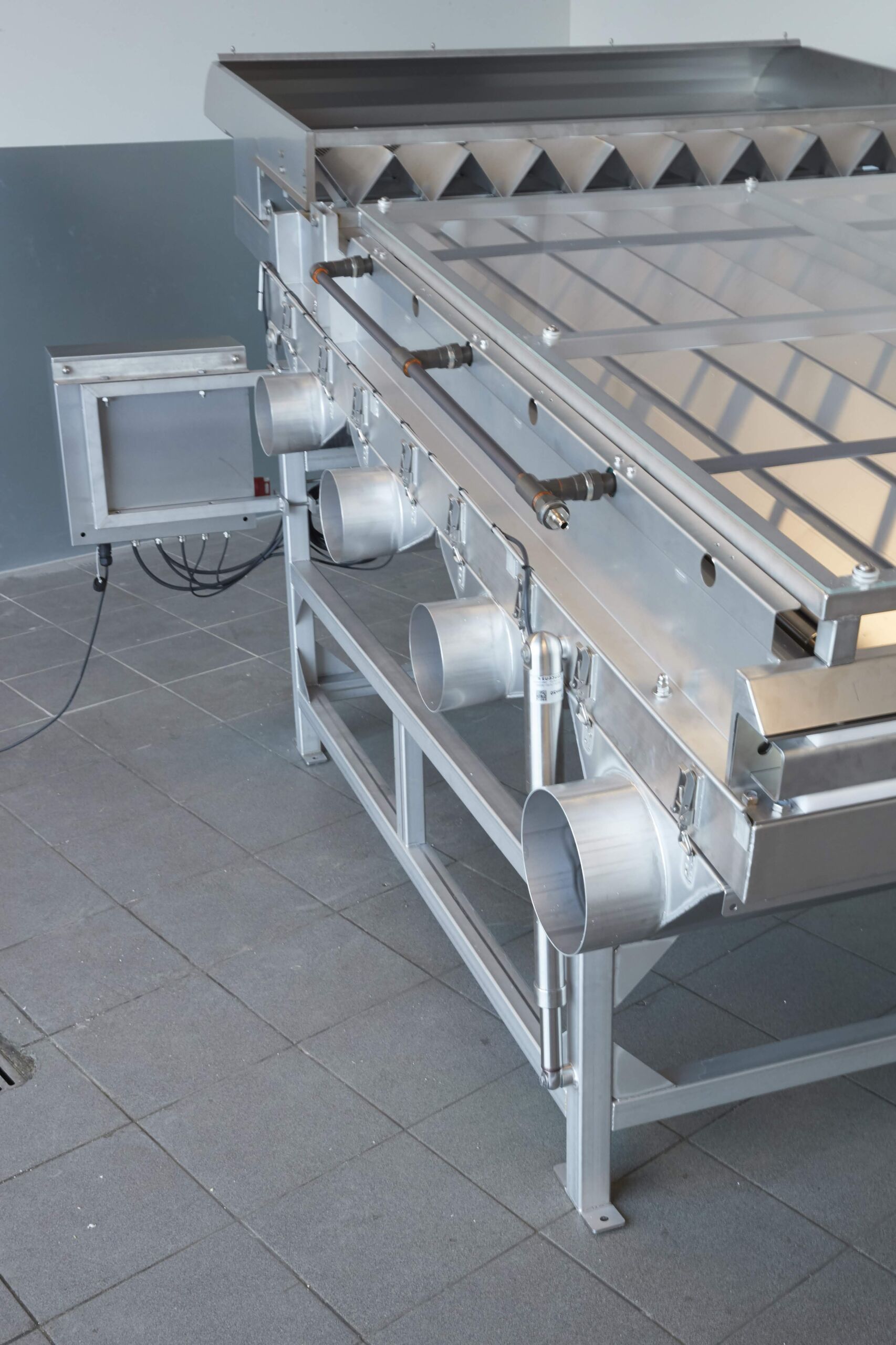

Built in 316L stainless steel and corrosion-resistant plastics, with outlets that discharge either side and unclip for cleaning
Sizing: grades fish 5–55 mm thick (5–500 g salmon on Micro and Macro, up to 2 kg on Exel) at 1,000–4,000 kg/h for Micro and 2,000–8,000 kg/h for Macro

Specifications

Model	Tracks	Fish size graded	Throughput (salmon)	Roller diameter	Grader tilt	Dimensions (L × B × W)
Micro Smart Grader	5	5–55 mm thick; recommended 5–500 g	1,000–4,000 kg/h	60 mm	Manual, 5–10°	3,000 × 1,200 × 1,300 mm
Macro Smart Grader	10	5–55 mm thick; recommended 5–500 g	2,000–8,000 kg/h	60 mm	Electronic, 5–10°	3,100 × 1,800 × 1,700 mm
Exel Smart Grader	7	Recommended up to 2 kg	Not published	80 mm	Electronic, 5–10°	Not published
All models — outlets	—	—	—	—	—	Ø152 mm, mountable either side, removable for cleaning
All models — materials	—	—	—	—	—	316L stainless steel and corrosion-resistant plastics
All models — control	—	—	—	—	—	Electric linear actuators; on-board panel, smart device or VAKI Counter; connects to VAKI Smart Flow and VAKI Cloud

Downloads

VAKI Grader Brochure VAKI Smart Grader Layout Drawing

Frequently Asked Questions

Which Smart Grader do I need?

What fish sizes will it grade?

How accurate is the grading?

How are the grade settings adjusted?

Can the grader be tilted?

What is it built from?

Does it connect to other VAKI equipment?
