iX for tanks, ponds and small-to-mid systems up to about 28 kW; C-Series for large RAS and hatcheries from 38 to 120 kW on three phase.

Oasis iX and C-Series Heat Pumps (Heat and Chill)

Q: Do they heat and chill, or only heat?

Every model is reverse-cycle — heating and chilling from the one unit.

Q: Is the chilling capacity the same as the heating capacity?

No. Chilling output is lower on the same unit — an iX9 gives 9.4 kW heating and 3.2 kW chilling — so a chill-led system needs a larger model.

Q: What conditions are the capacities rated at?

iX heating at 27 °C air / 26 °C water and iX cooling at 35 °C air / 29 °C water; the C-Series is rated at 19 °C air / 26 °C water for both heating and cooling.

Q: Can they run on salt water?

Yes — the titanium heat exchanger and gold-fin coated coils suit fresh, brackish and seawater systems.

Q: Will they work on cold mornings?

Yes — automatic reverse-cycle defrost keeps them running in ambient temperatures below 0 °C.

Q: How do I get a price?

Send us your water volume, target temperature, location and power supply — we’ll size a model and come back with pricing and lead time.

Inverter heat pumps that heat and chill water for aquaculture, aquaponic and aquarium systems, in fresh, brackish or salt water.

Models

Clear

Request a Quote

Categories: Heating & Cooling

Applications: Aquaponics, Hatchery, Live Holding & Purging, LSS, Pond, Public Aquarium, RAS

Brand: Oasis

Oasis iX and C-Series Heat Pumps (Heat and Chill)

Oasis iX and C-Series Heat Pumps (Heat and Chill) - Image 2

Product Information

Key Features

Full DC-inverter compressor — output follows the load instead of cycling on/off, around 30% more efficient than standard on/off units and holds water temperature steadier
Reverse-cycle: every model heats and chills from the one unit, with automatic defrost that keeps it running in ambient temperatures below 0 °C
Chilling output is lower than heating output on the same unit — an iX9 gives 9.4 kW heating but only 3.2 kW chilling — so a chill-driven system needs a larger model
Titanium heat exchanger and gold-fin hydrophilic-coated condenser coils — fresh, brackish or salt water
R32 refrigerant (low global warming potential)
3.5″ LCD touch controller, fully programmable with multi-period tariff/time scheduling; Wi-Fi as standard and solar PV-ready on the iX Series

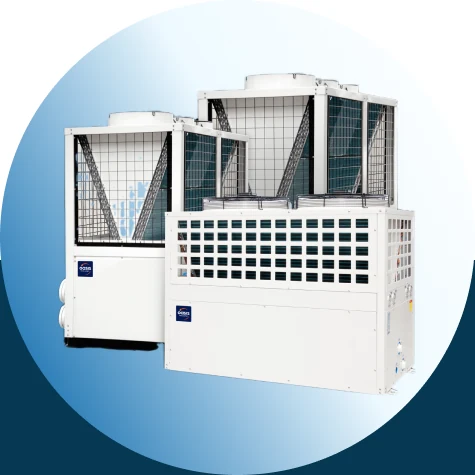

iX Series 9.4–28.9 kW on single phase (three phase on the iX28T) with 40 mm connections; C-Series 38–120 kW three-phase commercial with 50–110 mm connections
To size a unit, start with your water volume, the temperature lift you need at your coldest site ambient (or the pull-down at your hottest) and your system turnover — then read each kW figure against its own reference condition, because the iX and C-Series are rated at different air temperatures. Send us your volume, target temperature and site and Fresh By Design will run a heat-loss calculation and match a model.

Specifications

Model	Heating capacity	Cooling capacity	Rated at	Water flow (LPM)	Connection	Power supply
iX9	9.4 kW	3.2 kW	Heating 27 °C air / 26 °C water; cooling 35 °C air / 29 °C water	42	40 mm	Single phase (10 A plug)
iX13	12.8 kW	3.6 kW	Heating 27 °C air / 26 °C water; cooling 35 °C air / 29 °C water	58	40 mm	Single phase (15 A plug)
iX19	18.9 kW	7.7 kW	Heating 27 °C air / 26 °C water; cooling 35 °C air / 29 °C water	70	40 mm	Single phase (15 A plug)
iX24	24.6 kW	12.3 kW	Heating 27 °C air / 26 °C water; cooling 35 °C air / 29 °C water	110	40 mm	Single phase (15 A plug)
iX28	28.0 kW	10.4 kW	Heating 27 °C air / 26 °C water; cooling 35 °C air / 29 °C water	125	40 mm	Single phase (15 A plug)
iX28T	28.9 kW	14.5 kW	Heating 27 °C air / 26 °C water; cooling 35 °C air / 29 °C water	135	40 mm	Three phase (hardwired)
C38T	38 kW	24 kW	19 °C air / 26 °C water (heating and cooling)	200	50 mm	Three phase 400 V
C47T	47 kW	32 kW	19 °C air / 26 °C water (heating and cooling)	250	50 mm	Three phase 400 V
C58T	58 kW	45 kW	19 °C air / 26 °C water (heating and cooling)	333	50 mm	Three phase 400 V
C95	95 kW	70 kW	19 °C air / 26 °C water (heating and cooling)	467	110 mm	Three phase 400 V
C120	120 kW	94 kW	19 °C air / 26 °C water (heating and cooling)	585	110 mm	Three phase 400 V

Downloads

Oasis iX Series Brochure + Spec Sheet Oasis C-Series Commercial Spec Sheet Oasis C-Series Semi-Commercial Spec Sheet Oasis Commercial Heat Pump Catalogue

Frequently Asked Questions

Do they heat and chill, or only heat?

Is the chilling capacity the same as the heating capacity?

What conditions are the capacities rated at?

iX or C-Series?

Can they run on salt water?

Will they work on cold mornings?

How do I get a price?
