UltraAqua Channel UV Systems

There is no fixed rating — lamp banks are modular, so capacity is set by how many you install, which in turn follows from your target UV dose and your %UVT.

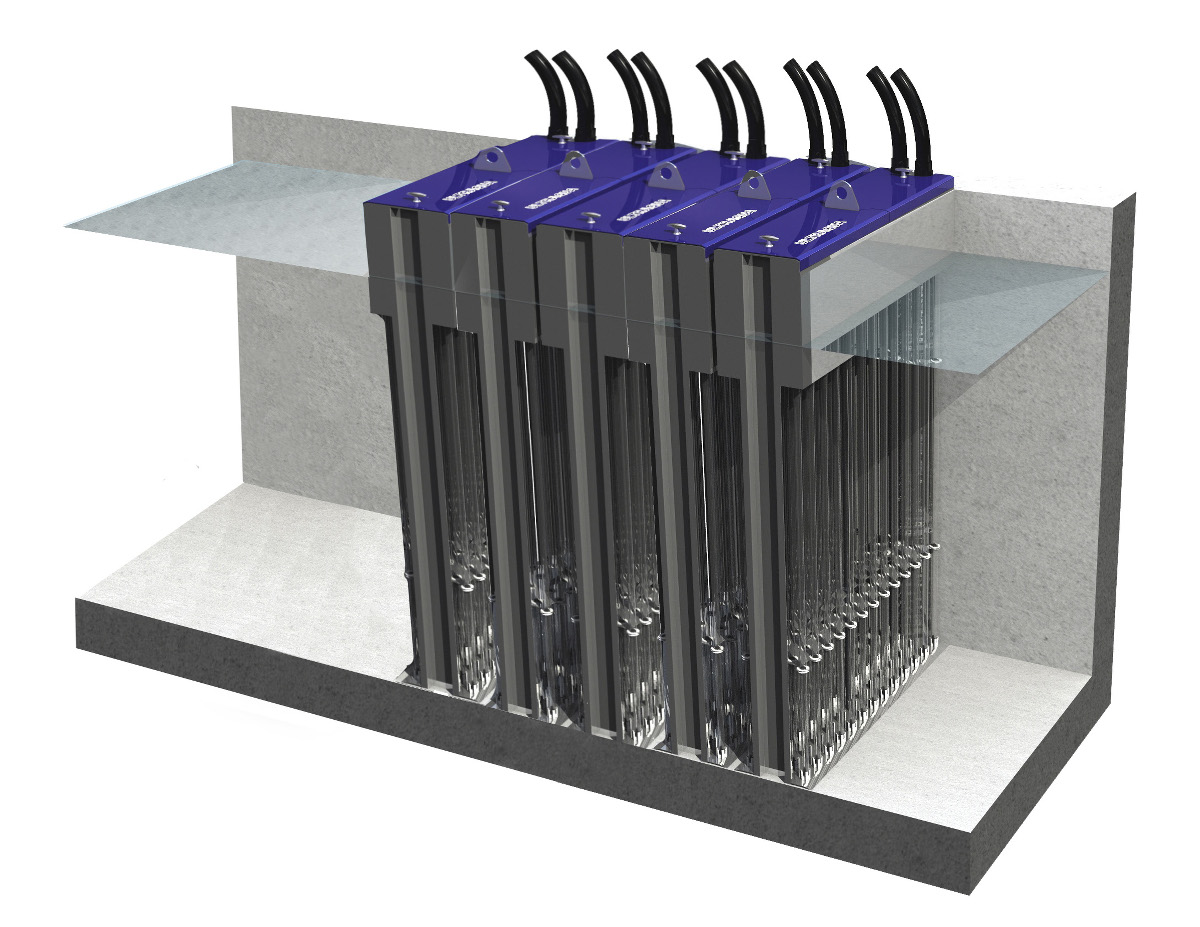

Almost certainly — the series is custom sized to a wide range of channel depths and widths, and mounts vertically, inclined or off the wall, which is why it retrofits well into existing channels and old chlorine contact tanks.

The design tolerates up to 30 cm of level variation without losing coverage, which matters on tidal intakes and variable discharge channels.

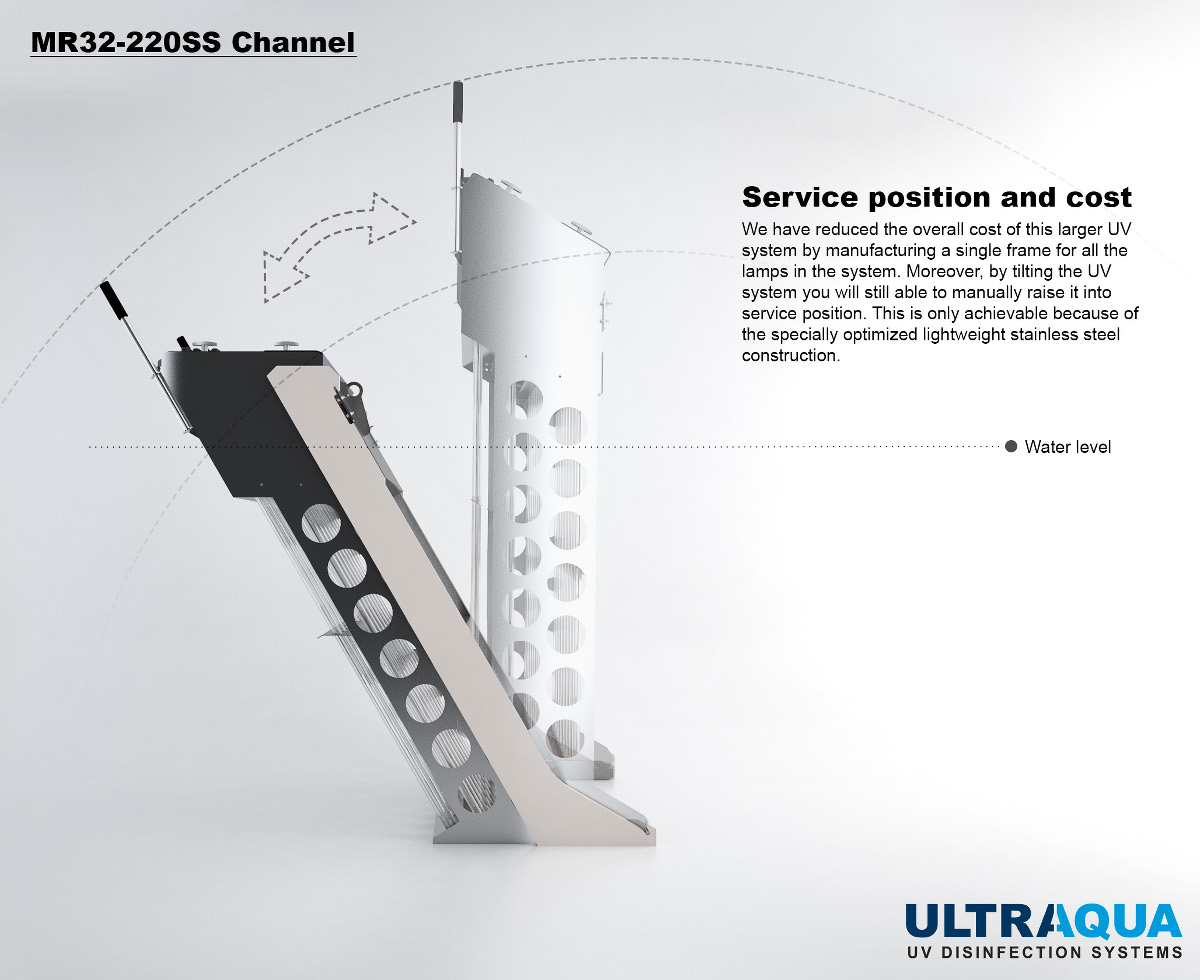

Yes — lamps are vertical and reached from a dry, isolated top compartment, there are no submerged electrical components, and routine maintenance is done with the system operating and without tools.

If your UVT is below 70% you should be looking at the LOW UVT series instead; UltraAqua will measure your UVT free of charge or estimate it from your water source.

Open channel suits gravity flows, retrofits and large intake or discharge streams; a closed PP or PEHD vessel suits pressurised pipework, so tell us how the water gets to the UV and we will steer you.

Request a quote with your channel dimensions, design flow, target UV dose in mJ/cm², measured %UVT and water type, and we will come back with the configuration and lead time.
