UltraAqua Non-Corrosive PP UV Systems

The 5 to 1,650 m³/h range is the hydraulic size of the reactors — the flow you can treat depends on the UV dose you need and your %UVT, so send us both and we will size it.

UVT is the fraction of 254 nm light passing through a 10 mm water sample; it is as decisive as flow rate in UV sizing, and water that looks clear can still have a low UVT if it carries dissolved iron or manganese.

No — below 70% UVT you need the LOW UVT series, which is built for that duty; UltraAqua will measure your UVT free of charge or estimate it from your water source.

PP is the default — it is more temperature and pressure resistant — but choose PEHD if the water carries high ozone concentrations or runs below 0°C.

Yes — we generally recommend 50 µm ahead of the UV, because organisms sheltering inside particles need a much higher dose than the same species free-swimming, and the UV should always sit downstream of filtration.

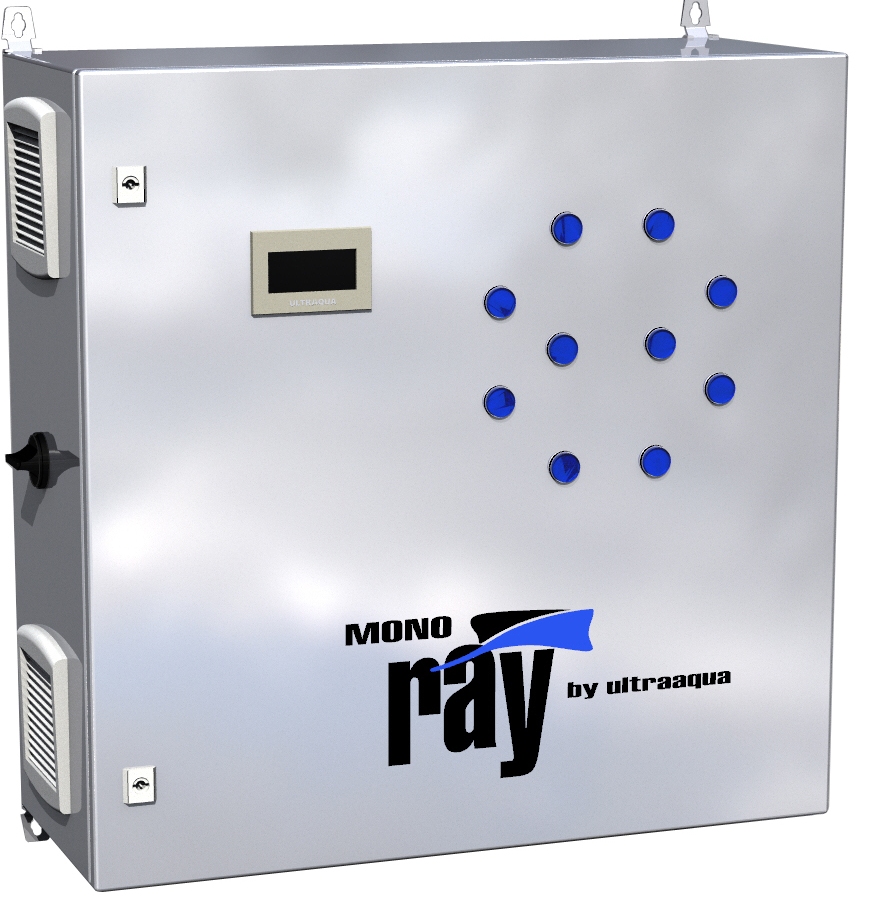

It paces the lamp power to hold your target dose as flow, UVT and lamp age change, rather than running the lamps at full output all the time — which is where the operating cost saving comes from.

Request a quote with your design flow, the target UV dose in mJ/cm², your measured %UVT, water type and connection preference, and we will come back with the reactor, options and lead time.
