Point Four RIU3 Monitor & Controller

Q: How many sensor inputs and control outputs does one RIU3 have?

One probe input per unit, accepting 4–20 mA, 0–5 mV or Modbus RS485, and two SPDT 10 A relay outputs configurable across up to six control blocks.

Q: Which water quality parameters can it monitor?

Dissolved oxygen by galvanic or optical probe, temperature, CO₂, pH, ORP and salinity, depending on which probe option is fitted.

Q: What can it actually control?

Anything the two 10 A relays can switch — the RIU3-Comm-FMsol-PVC package, for example, drives a solenoid valve with a 15 LPM flow meter for oxygen injection. The same relays run alarm conditions and PID loops.

Q: How do I size a system with several measurement points?

One RIU3 takes one probe, so allow a unit per measurement point and daisy-chain them: up to 99 units on a multi-linked network, and you can run as many networks as you need.

Q: Can I calibrate the probe without pulling it out?

Yes — tank-side calibration is done at the probe from the weatherproof 4-button keypad, by a single operator.

Q: How is the data collected and displayed?

Through the RIU3 itself, a Point Four LC Touch Controller, or the Windows-based Point Four Sync HMI software.

Q: Does it reduce cabling?

Yes — only one cable carries the whole system’s data back to the main controller, instead of separate probe and data runs from every device.

A field-mounted transmitter and controller for continuous water quality monitoring across tanks and systems.

Models

Clear

Request a Quote

Categories: Monitoring Systems, Oxygen & Ozone, Specials, Water Quality Monitoring

Applications: Hatchery, Live Holding & Purging, RAS

Brand: Pentair

Point Four RIU3 Monitor & Controller - Image 2

Point Four RIU3 Monitor & Controller - Image 3

Point Four RIU3 Monitor & Controller - Image 4

Point Four RIU3 Monitor & Controller - Image 5

Point Four RIU3 Monitor & Controller - Image 6

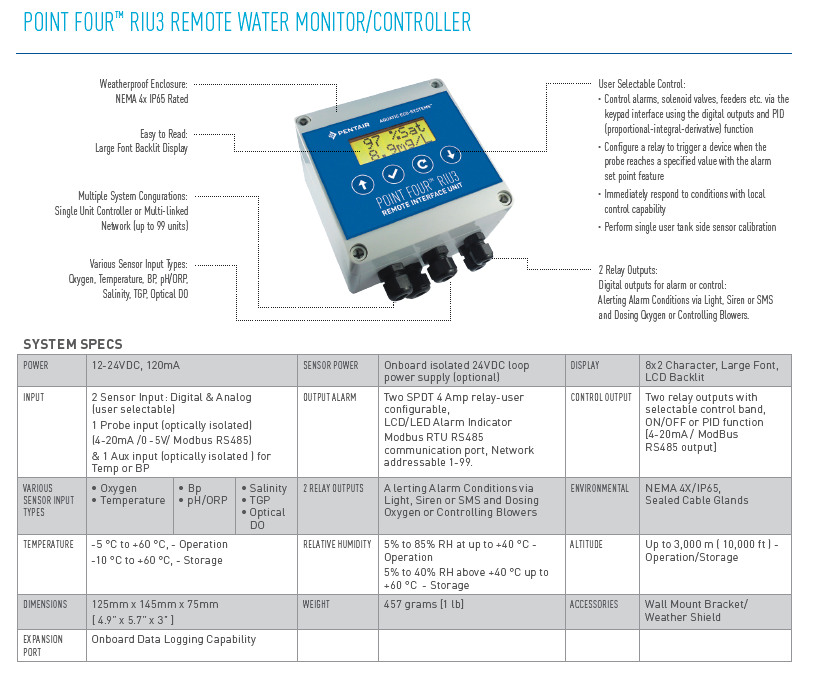

Product Information

Key Features

Field-mounted transmitter and controller for continuous monitoring and control of water quality

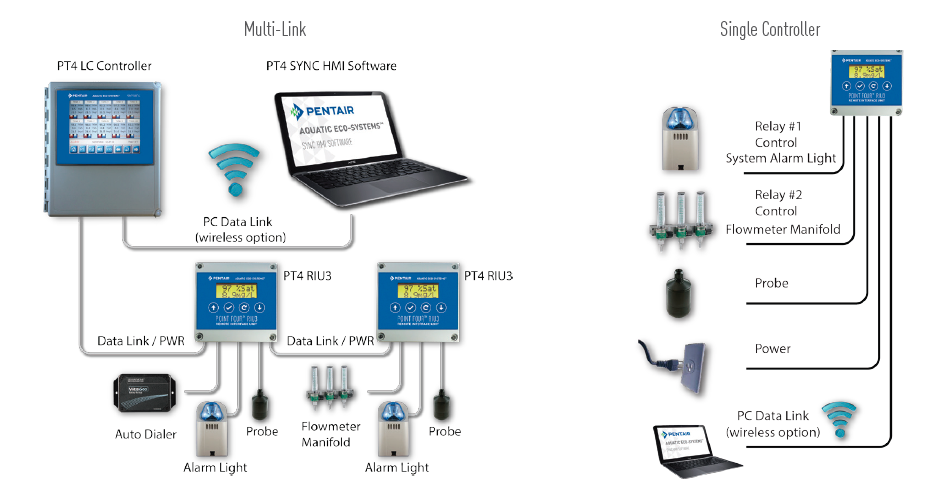

Runs stand-alone or daisy-chained into a multi-linked network of up to 99 units, with unlimited networks
Accepts 4–20 mA, 0–5 mV and Modbus RS485 sensor inputs
Two SPDT 10 A relay outputs, configurable across up to six control blocks for local control, alarms or PID
Tank-side probe calibration from a weatherproof 4-button keypad — one operator, at the probe
Available with dissolved oxygen (galvanic or optical), temperature, CO₂, pH, ORP or salinity probes, or without a probe

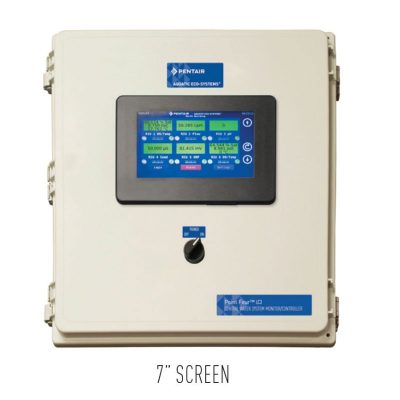

Works with the Point Four LC Touch Controller and the Windows-based Point Four Sync HMI software
Sizing: one RIU3 takes one probe and offers two relay outputs, so allow a unit per measurement point and daisy-chain them — up to 99 units per network

Specifications

Specification	Detail
Model	Point Four RIU3 Monitor & Controller
Function	Field-mounted transmitter / controller, stand-alone or networked
Network capacity	Daisy-chained multi-link, up to 99 units per network; unlimited networks
Sensor input types	4–20 mA, 0–5 mV, Modbus RS485 — one probe per unit
Control outputs	2 x SPDT 10 A relays, configurable across up to six control blocks
Control functions	Local control, alarm conditions and PID, set by keypad or PC
Parameters monitored	Dissolved oxygen, temperature, CO₂, pH, ORP, salinity
Calibration	Tank-side, from the weatherproof 4-button keypad
Option — RIU3	Controller only, supplied without probe
Option — RIU3-Comm	OxyGuard Commander galvanic DO / temperature probe, 7 m cable
Option — RIU3-RDO	In-Situ optical dissolved oxygen probe, 10 m cable
Option — 1SSS6025	CO₂ analyser, 7 m cable
Option — RIU3-DpH	Sensorex pH sensor, 6 m cable
Option — RIU3-ORP	Sensorex ORP sensor, 6 m cable
Option — RIU3-Sal	OxyGuard salinity meter, 7 m cable

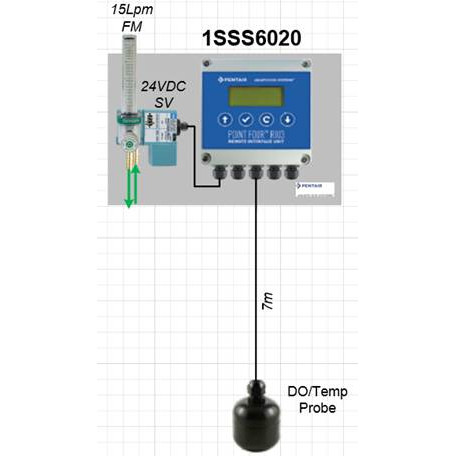

Option — RIU3-Comm-FMsol-PVC	DO / temperature probe, 15 LPM flow meter, solenoid valve and mounting board
Software and HMI	Point Four LC Touch Controller; Point Four Sync HMI (Windows)

Downloads

Point Four RIU3 Spec Sheet
