Yes – IP67 rated, including while connected and powered over USB, and impact tested with an abrasion- and chemical-resistant coating.

YSI 9800 Photometer

Q: What parameters can it measure?

Over 30 pre-programmed tests plus parameters you define yourself – the parameter is set by which Palintest reagent you use.

Q: What range and resolution will I get?

Both depend on the reagent for that parameter and are not published on this page. Tell us which parameters you run and we will confirm before you order.

Q: Does it work for seawater?

Yes, but the ammonia test needs the YAT1707 ammonia conditioner in saltwater. Confirm other parameters against the reagent method before relying on them in a marine system.

Q: How much data does it hold?

1,000 data sets, each stored with the result, data ID and user for traceability and compliance.

Q: What comes in the box?

The photometer, a hard-sided case with foam cutouts for instrument, accessories and reagents, and a waterproof USB cable. Reagents are ordered separately.

Q: Where do I buy the reagents?

From the YSI Palintest Photometer Reagents and Spares page – most parameters come in 250-test packs, with nitrate and low-range phosphate in 200-test packs.

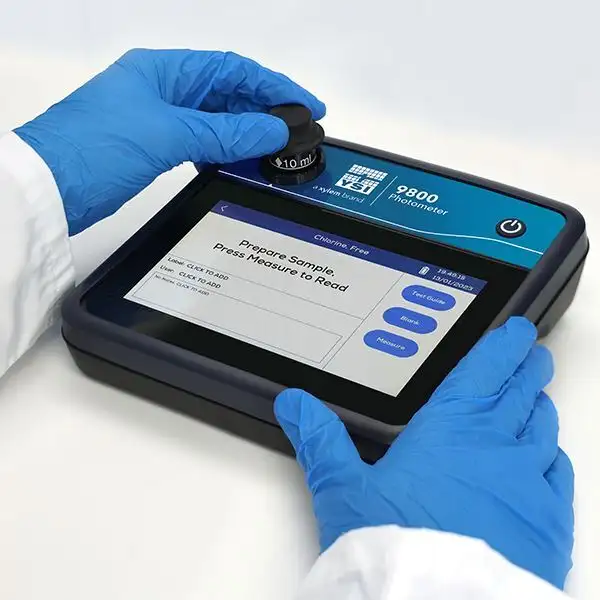

A handheld photometer for testing water quality parameters such as ammonia, nitrite, nitrate and phosphate on site.

$2,500.00 ex GST

SKU: YPT980

Categories: Test Kits, Water Quality Monitoring

Applications: Hatchery, LSS, Public Aquarium, RAS, Water & Wastewater Treatment

Brand: YSI

Product Information

Key Features

Over 30 pre-programmed water quality tests, plus user-defined parameters
Five-wavelength optical system — 430, 465, 530, 575 and 620 nm — with ±1%T photometric accuracy
IP67 waterproof, including while powered over USB; impact tested, with an abrasion- and chemical-resistant coating
Large full-colour touchscreen that works with wet or gloved hands, with onscreen step-by-step test instructions
Stores 1,000 data sets — each with result, data ID and user — for traceability and compliance
User-selectable test units, sample numbers and dilution factors; multiple languages including English, French, Spanish and Mandarin
Supplied in a hard-sided case with foam cutouts for instrument, accessories and reagents, plus a waterproof USB cable; software is user-upgradeable over USB
Choosing your instrument: there is one 9800 — you size the purchase by the reagents you buy, not by the model. Work out which parameters you need to run and how often, then order the matching Palintest reagent packs, and add the YAT1707 ammonia conditioner if you test ammonia in seawater

Specifications

Specification	Detail
Product code	YPT980
Tests available	30+ pre-programmed, plus user-defined parameters
Optical system	Five wavelengths — 430, 465, 530, 575 and 620 nm
Photometric accuracy	±1%T (transmission)
Measuring range and resolution per parameter	Set by the Palintest reagent used — not published on this page; contact Fresh By Design to confirm for your parameters
Water types	Fresh water and seawater — the ammonia test in saltwater requires the YAT1707 ammonia conditioner
Memory	1,000 data sets, each with result, data ID and user
Display	Large full-colour touchscreen, operable with wet or gloved hands
Ingress protection	IP67, including when powered by USB; impact tested
Housing	Abrasion-resistant and chemical-resistant coating
Connectivity	USB — data transfer, instrument power and user software upgrades
Languages	Multiple, including English, French, Spanish and Mandarin
Supplied with	Hard-sided carry case with foam cutouts and a waterproof USB cable
Reagents	Ordered separately by parameter — see YSI Palintest Photometer Reagents and Spares
Shipping weight	7.5 kg

Downloads

YSI 9800 Photometer Spec Sheet

Frequently Asked Questions

What parameters can it measure?

What range and resolution will I get?

Does it work for seawater?

Is it waterproof?

How much data does it hold?

What comes in the box?

Where do I buy the reagents?

Spare Parts & Consumables

YSI Palintest Photometer Reagents and Spares
Price range: $30.00 through $340.00 ex GST Select options This product has multiple variants. The options may be chosen on the product page
