Moticam A Series
The Moticam A‑Series is a range of USB digital microscope cameras designed for live viewing, image capture, and documentation across education, laboratory, research, and inspection environments. All models in the series use sCMOS sensor technology and connect to a computer via USB 2.0, providing a consistent hardware and software platform regardless of resolution.
The A‑Series is structured to allow selection based on required image resolution and live frame rate, while maintaining common operating characteristics. Lower‑resolution models are optimised for smooth live display and real‑time observation, while higher‑resolution models support detailed image capture for documentation, reporting, and analysis.

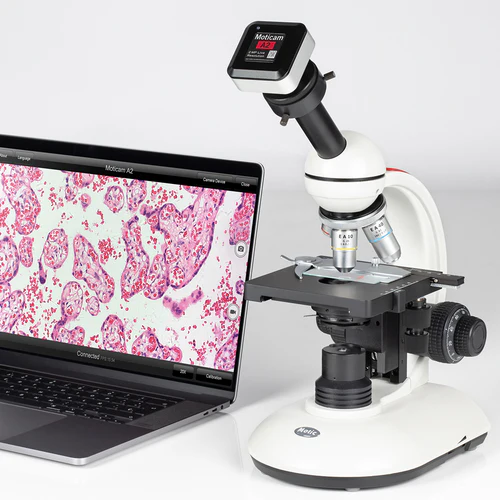

All cameras feature a C‑Mount interface, allowing compatibility with a wide range of microscope adapters, eyepiece tubes, and trinocular ports. Each model supports live image display, still image capture, and video recording using Motic imaging software, with standard functions including exposure control, white balance adjustment, image measurement, and objective calibration.

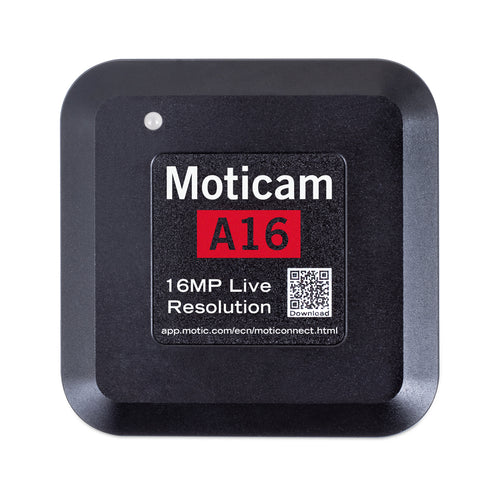

The Moticam A2 provides Full HD live imaging and is typically selected for routine observation and teaching where frame rate is prioritised. The A5 offers increased resolution while maintaining full live frame rates, making it suitable for general documentation. The A8 supports 4K live output for higher detail imaging, and the A16 provides the highest resolution in the series for applications requiring maximum image detail.
Key Features:
- sCMOS sensor technology across all models
- USB 2.0 connectivity for direct computer connection
- C‑Mount interface for compatibility with standard microscope adapters
- Progressive scan with rolling shutter
- Support for live viewing, still image capture, and video recording
- Image measurement and calibration functions via software
- Common accessory set supplied across the A‑Series
- Selection of resolutions from 2 MP to 16 MP to suit different applications
Specifications:
| Specification | Moticam A2 | Moticam A5 | Moticam A8 | Moticam A16 |
|---|---|---|---|---|
| Sensor type | sCMOS | sCMOS | sCMOS | sCMOS |
| Sensor size | 1/3.1″ | 1/2.8″ | 1/3″ | 1/2.3″ |
| Imaging area (diagonal) | 5.95 mm | 6.52 mm | 5.91 mm | 7.77 mm |
| Maximum resolution | 2 MP | 5 MP | 8 MP | 16 MP |
| Live display resolutions | 1280 × 720 1024 × 768 |
2592 × 1944 2048 × 1536 1920 × 1080 |
3840 × 2160 1920 × 1080 |
4608 × 3456 3264 × 2448 1920 × 1080 |
| Maximum frame rate | 30 fps @ 1920 × 1080 | 30 fps @ all live modes | 15 fps @ 3840 × 2160 30 fps @ 1920 × 1080 |
15 fps @ 4608 × 3456 30 fps @ 1920 × 1080 |
| Pixel size | 2.7 × 2.7 µm | 2.0 × 2.0 µm | 1.34 × 1.34 µm | 1.34 × 1.34 µm |
| Scan mode | Progressive | Progressive | Progressive | Progressive |
| Shutter type | Rolling shutter | Rolling shutter | Rolling shutter | Rolling shutter |
| Data interface | USB 2.0 | USB 2.0 | USB 2.0 | USB 2.0 |
| Lens mount | C‑Mount | C‑Mount | C‑Mount | C‑Mount |
| Focusable lens supplied | 12 mm | 12 mm | 12 mm | 12 mm |
| Operating temperature | −10 to +60 °C (non‑condensing) | −10 to +60 °C (non‑condensing) | −10 to +60 °C (non‑condensing) | −10 to +60 °C (non‑condensing) |
| Power supply | 5 V via USB | 5 V via USB | 5 V via USB | 5 V via USB |
| Software | MotiConnect (Windows / macOS) | MotiConnect (Windows / macOS) | MotiConnect (Windows / macOS) | MotiConnect (Windows / macOS) |
| Included accessories | Focusable lens, CS ring adaptor, 30 mm & 38 mm eyepiece adapters, USB cable, calibration slide, macro tube, calibration card | Same as A2 | Same as A2 | Same as A2 |
