OXYMAT Half Pallet Oxygen Generators (up to 8m3/hr)

OXYMAT Half Pallet Oxygen Generators (up to 8m3/hr)

Call for Price

Code: N/A
Category: .

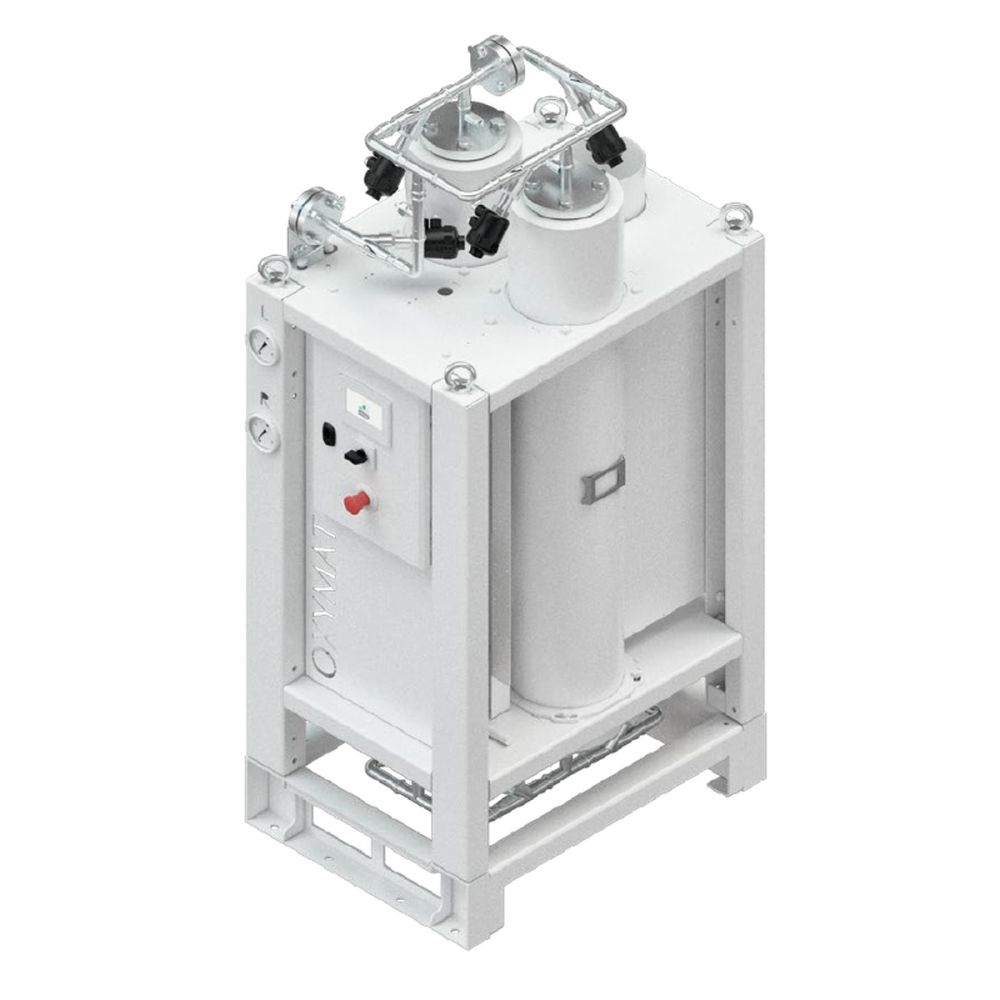

OXYMAT is proud to present the new Nordic Half Pallet Series PSA Oxygen Generators with an extremely low power consumption.

This new line of oxygen generators will provide operators with the same high gas quality at a dramatically reduced power requirement, as low as 0.80 kWh per M3 of oxygen produced at 4 bar(g) outlet pressure at purities up to 95%.

We offer a wide range of OXYMAT PSA Oxygen Generators to be installed onsite for all aquaculture oxygen applications. You can produce your own oxygen on demand, which eliminates the need for for liquid oxygen supply or oxygen cylinders.

 Cost to Produce Oxygen:

Eg Half Pallet-3

Produces – 6.9m3/hr, 7.66kg/hr

Power Consumption – 8.52KW/Hr

Oxygen Cost – approx $0.25 per m3 of oxygen, approx $0.22 per kg of oxygen

*Based on $0.20/KWH, 93% purity @ 4 Bar

Benefits of the OXYMAT Half Pallet System:

  • Modular – can be upgraded as oxygen requirements increase
  • Energy consumption from 0.8 kW/Nm3
  • Supplied with Australian and New Zealand certification
  • All pipe sets and valves are made from stainless steel SS 316L (stainless steel)
  • All pressure vessels are sandblasted and powder coated P265 in C4 grade for extended lifetime
  • Outlet pressure from 4 to 6 bar(g) at purities up to 95%
  • System is produced in Denmark

We can also provide complete air preparation systems including air compressor, air dryer, air filters and product tanks.

Please contact us for pricing and assistance with your application.

Oxymat Half Pallet Spec Sheet
